Differential Mount Assembly Note
WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

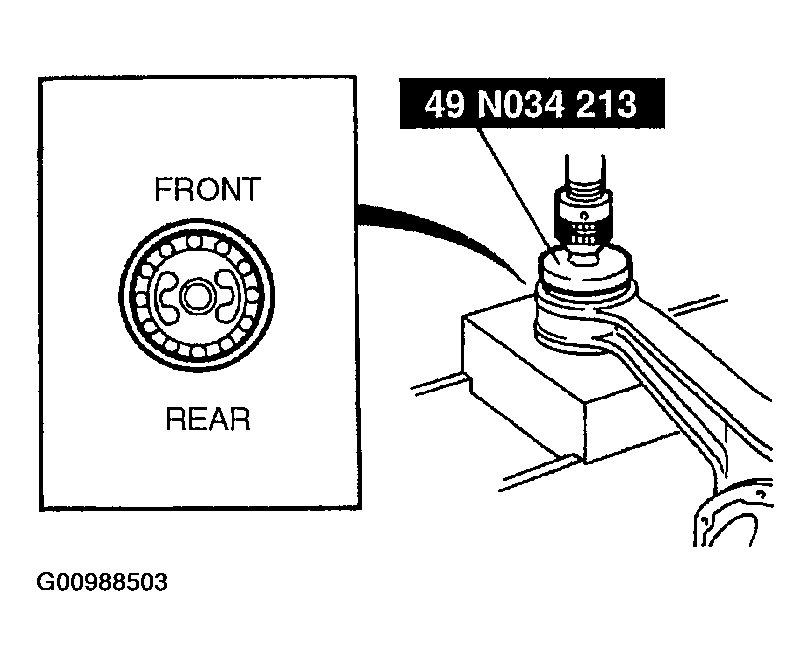

- Install the new differential mount with the voids facing front and rear.
- Press in the differential mount using the SST
.
- Press force 19,610 N {2,000 kgf, 4,400 lbf} max.
Courtesy of MAZDA MOTORS CORP.
