Differential Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2002 Mazda MX-5 Miata and 2001 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

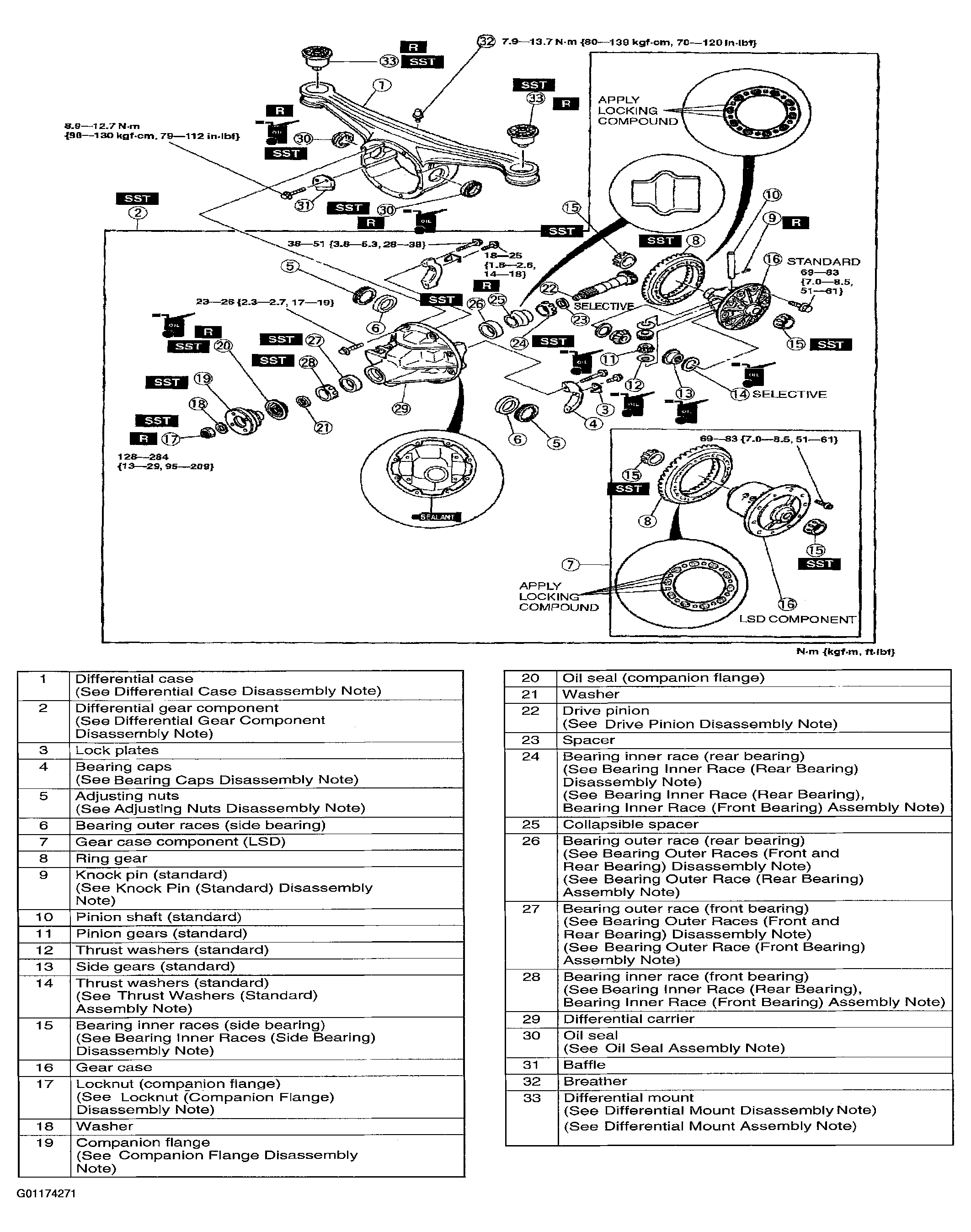

Fig 1: Differential Disassembly & Assembly Sequence Table
G01174271Courtesy of MAZDA MOTORS CORP.
