Differential Mount Assembly Note

WARNING: This page is about a different car, the 2002 Mazda MX-5 Miata and 2001 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new differential mount with the voids facing front and rear.
  2. Press in the differential mount using the SST  .
    1. Press force 19,610 N {2,000 kgf, 4,400 Ibf} max.

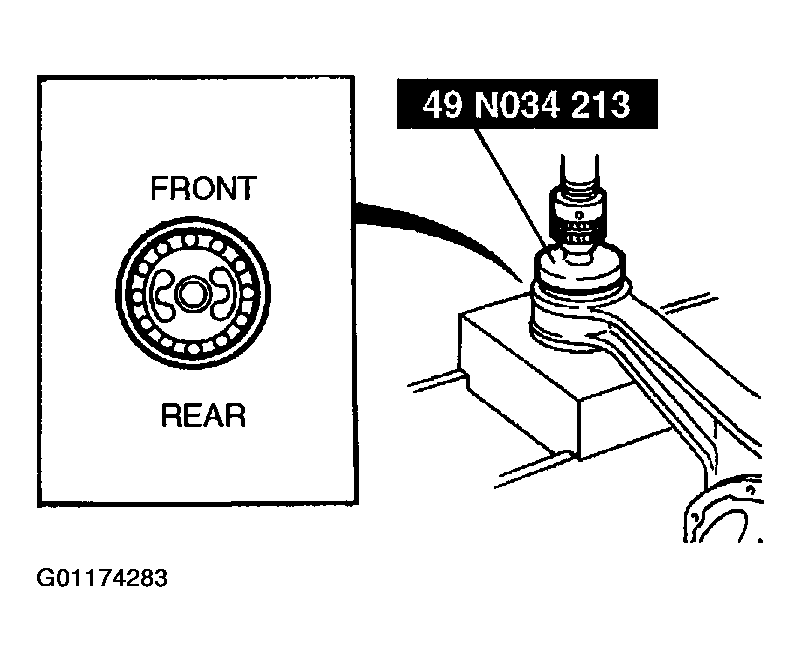

    Fig 1: Assembling Differential Mount
    G01174283Courtesy of MAZDA MOTORS CORP.
