Differential Case Disassembly Note

WARNING: This page is about a different car, the 2002 Mazda MX-5 Miata and 2001 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Strike the differential carrier with a plastic hammer to separate it from the case.
CAUTION:
- The differential case is made of aluminum, and is therefore easily dented and scratched by metal tools. When separating the differential carrier from the case, use only a plastic hammer at the point shown in the figure.

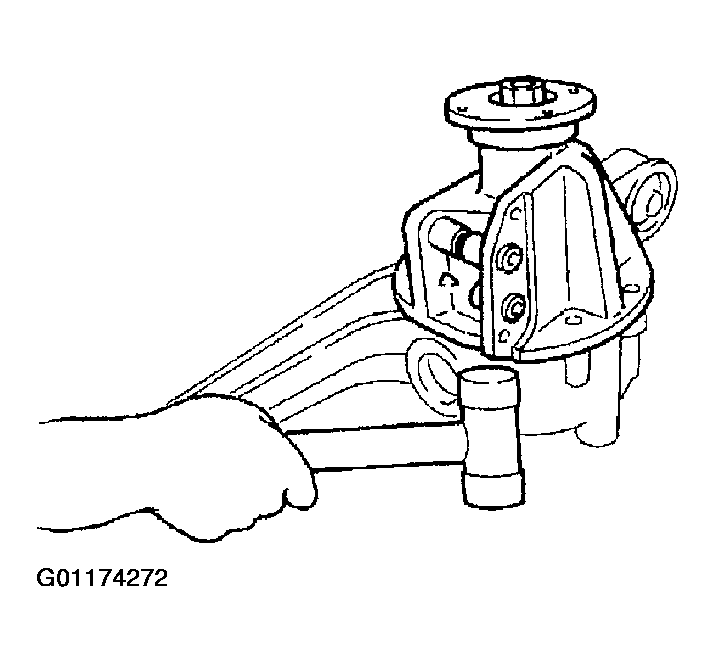

Fig 1: Striking Differential Carrier With A Plastic Hammer To Separate It From Case
Courtesy of MAZDA MOTORS CORP.
