Schematic & Routing Diagrams

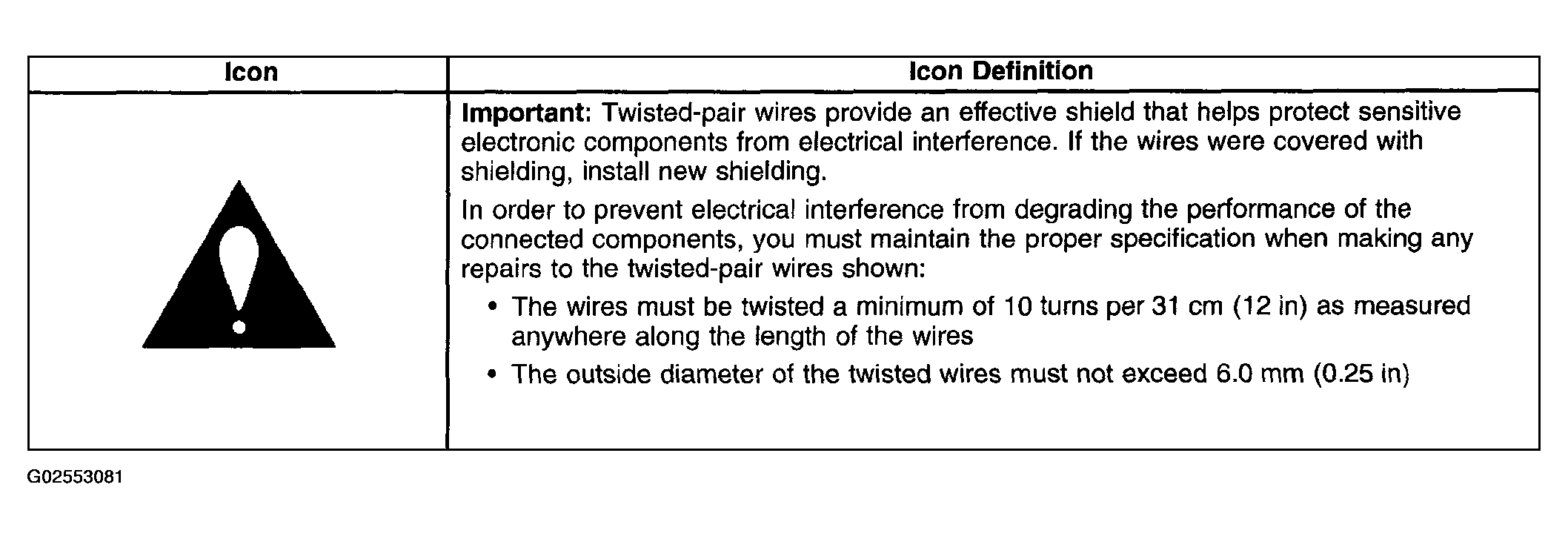

Fig 1: ABS Schematic Icons

Courtesy of GENERAL MOTORS CORP.

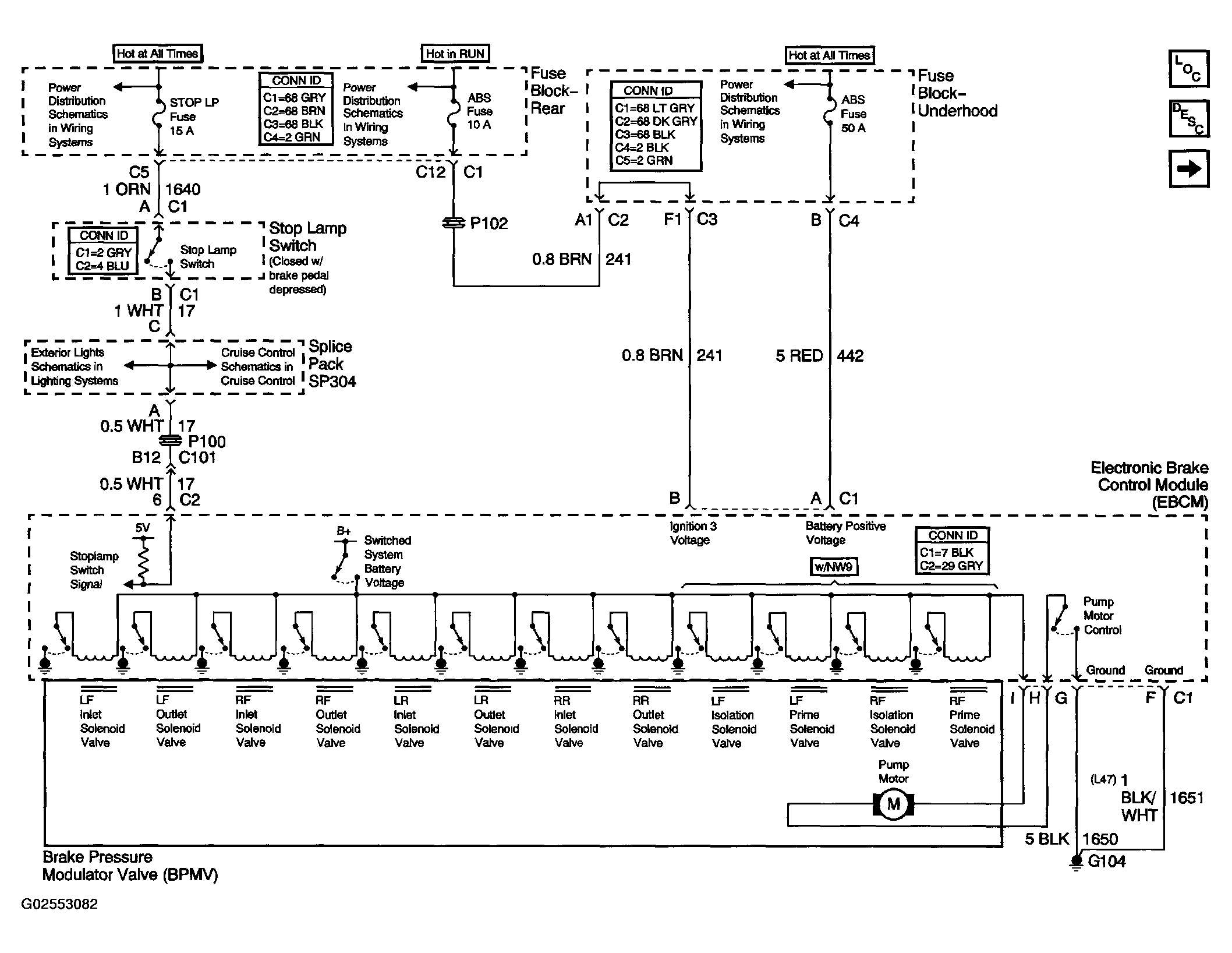

Fig 2: ABS Schematics (Power, Ground, Stop Lamp Switch, Solenoid Valves & Pump Motor)

Courtesy of GENERAL MOTORS CORP.

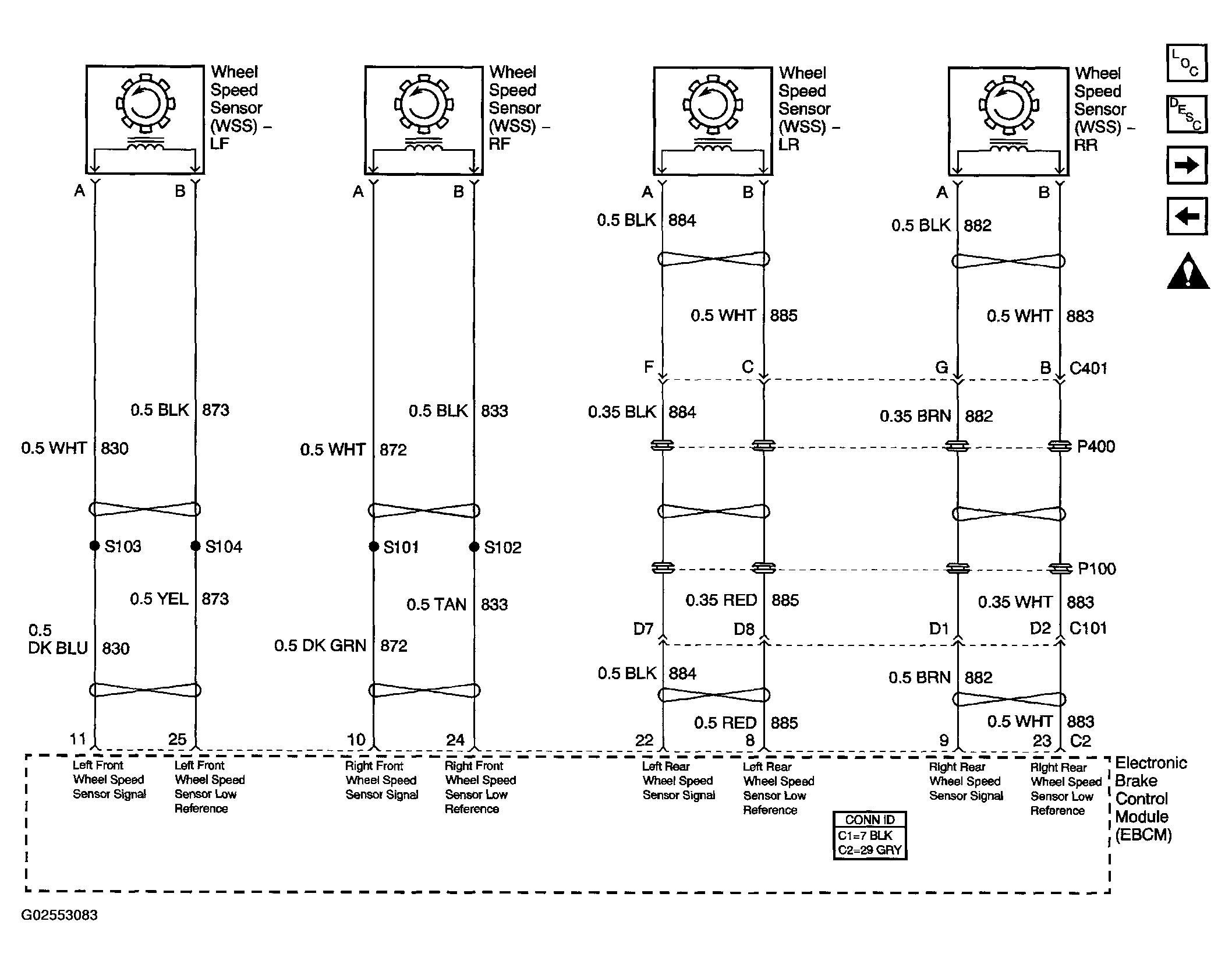

Fig 3: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.

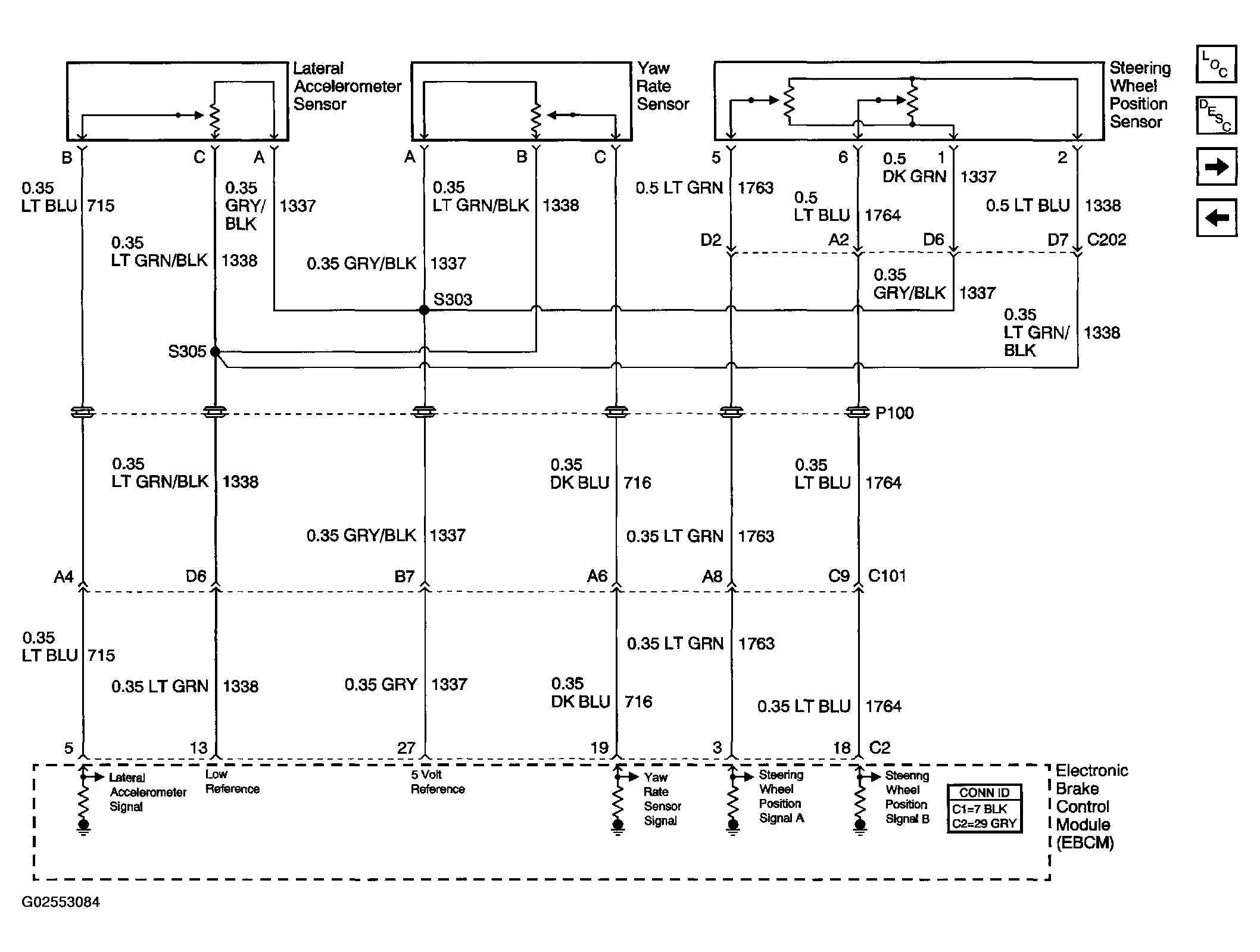

Fig 4: ABS Schematics (Vehicle Stability Enhancement System - W/JL4)

Courtesy of GENERAL MOTORS CORP.

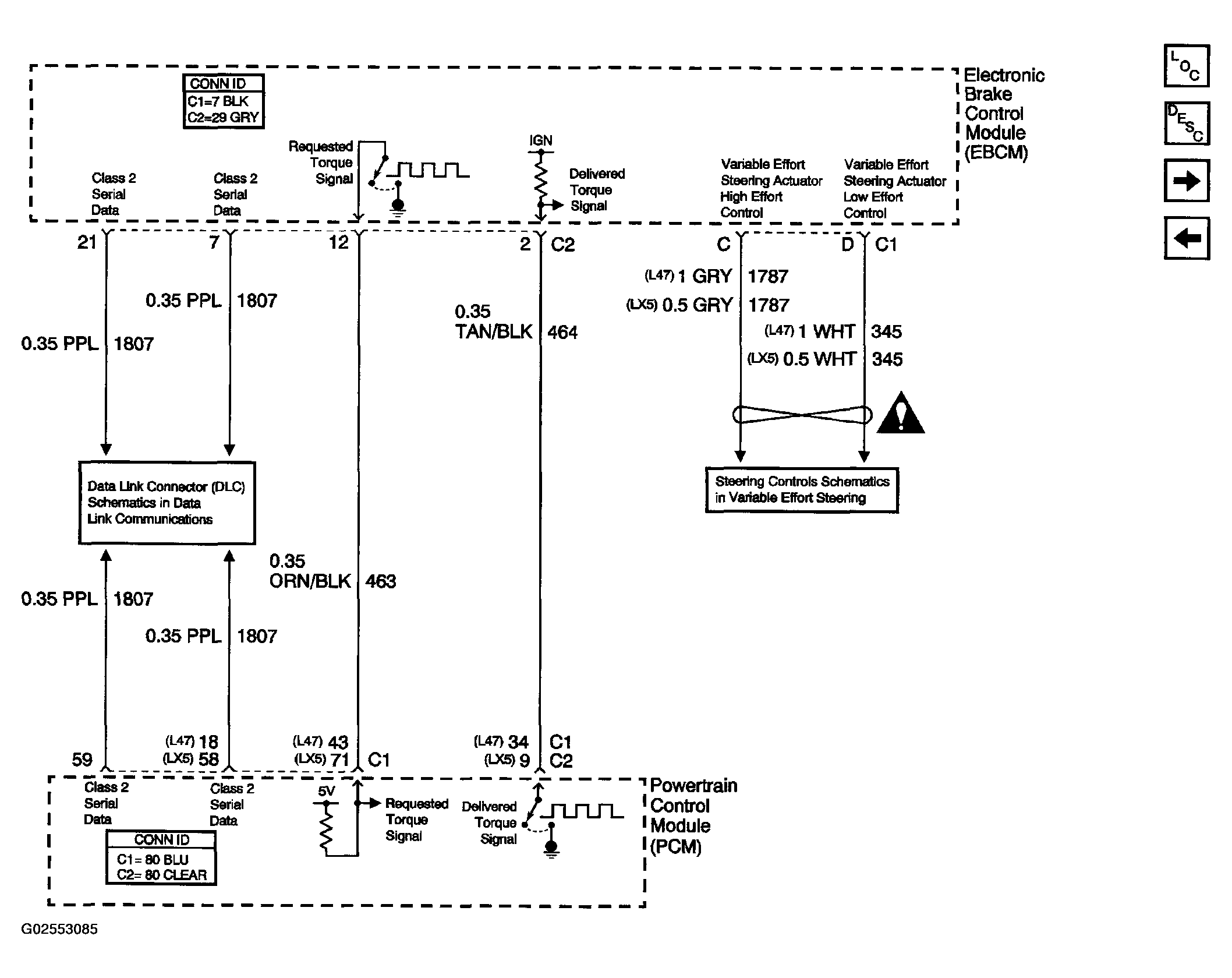

Fig 5: ABS Schematics (Traction Control - W/NW9 & Variable Effort Steering - W/NV8)

Courtesy of GENERAL MOTORS CORP.

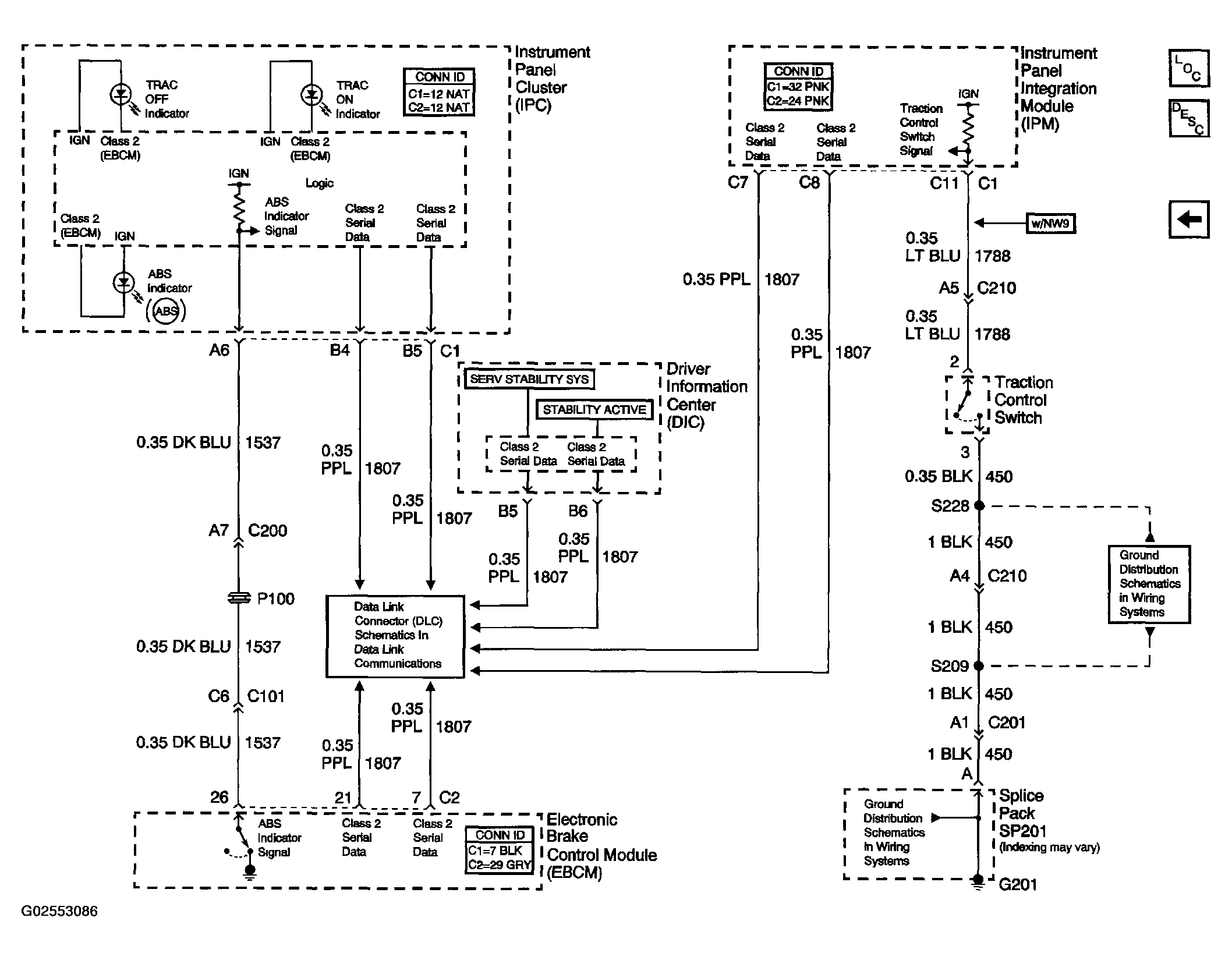

Fig 6: ABS Schematics (Indicators & Traction Control Switch)

Courtesy of GENERAL MOTORS CORP.
