Left Temperature Actuator Connector End View

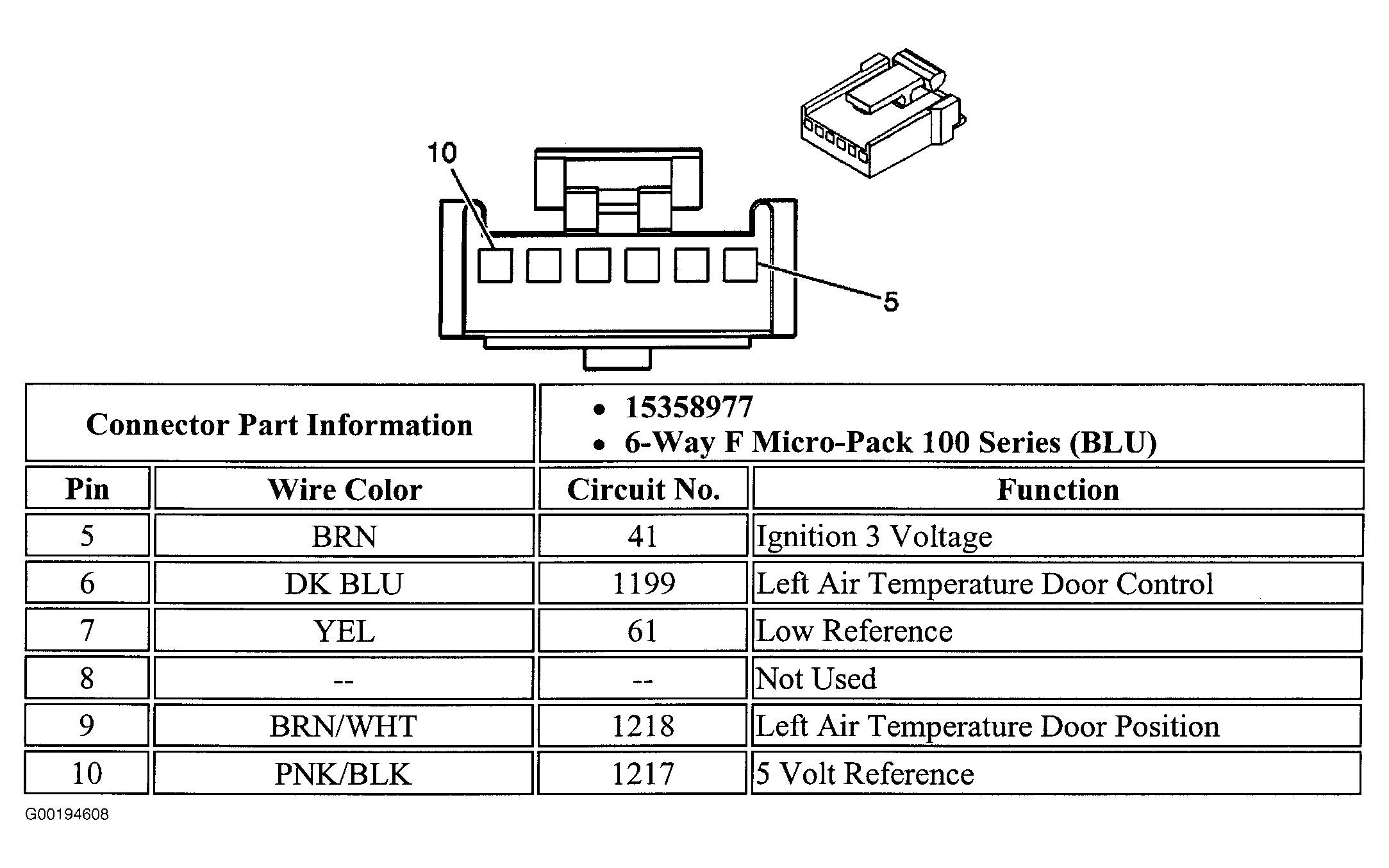

Fig 1: Left Temperature Actuator

G00194608

Courtesy of GENERAL MOTORS CORP.
