Floor Shift Knob: Installation

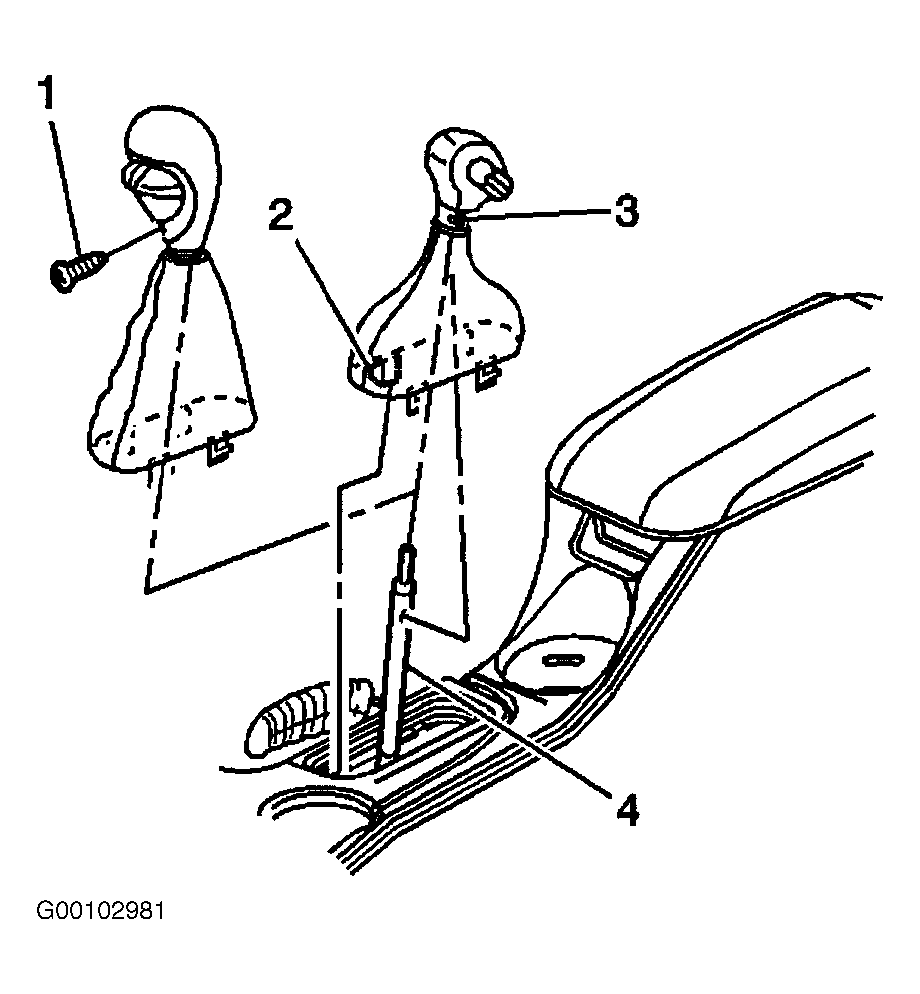

Install the knob and boot assembly onto the transmission control (4). Engage the locking tabs (2) with the console assembly. See Fig 1 . Tighten the control knob set screw (1 or 3) to 18 INCH lbs. (2 N.m).
