Removal Procedure

NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.

Raise and support the vehicle on a suitable hoist. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Remove the left engine splash shield.

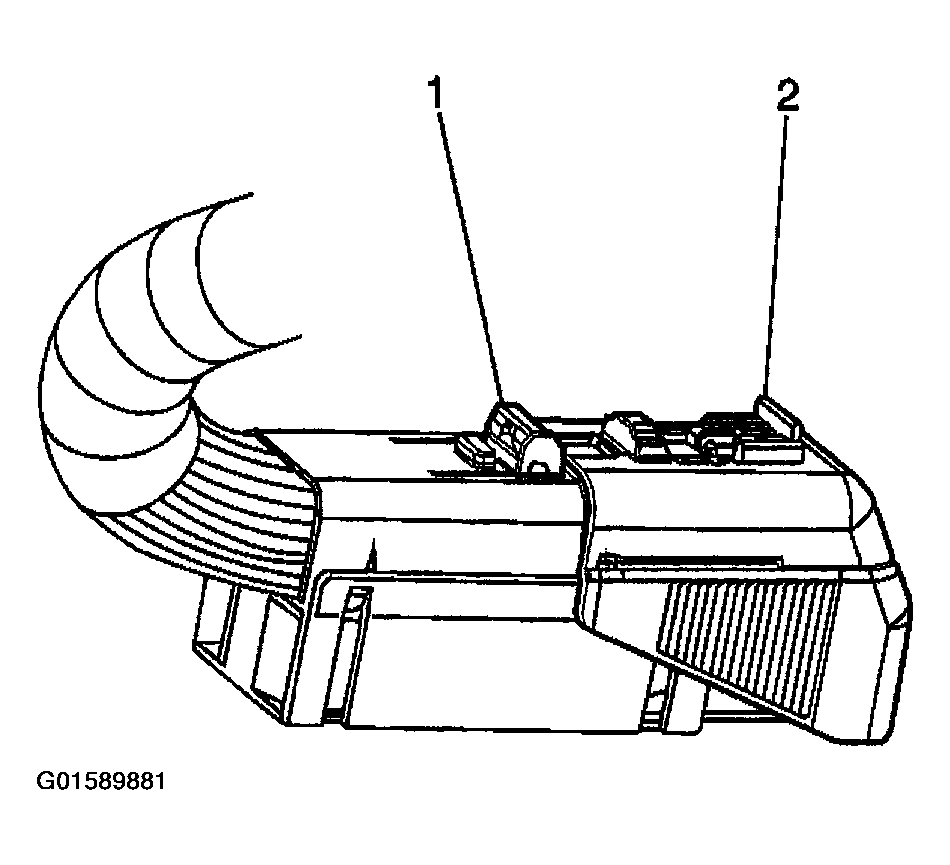

Fig 1: Removing Connector Position Assurance (CPA) From Connector Lock Tab

Courtesy of GENERAL MOTORS CORP.

Remove the Connector Position Assurance (CPA) (2) from the connector lock tab (1).
Push the lock tab (1) down and then move the sliding connector cover to the open position.

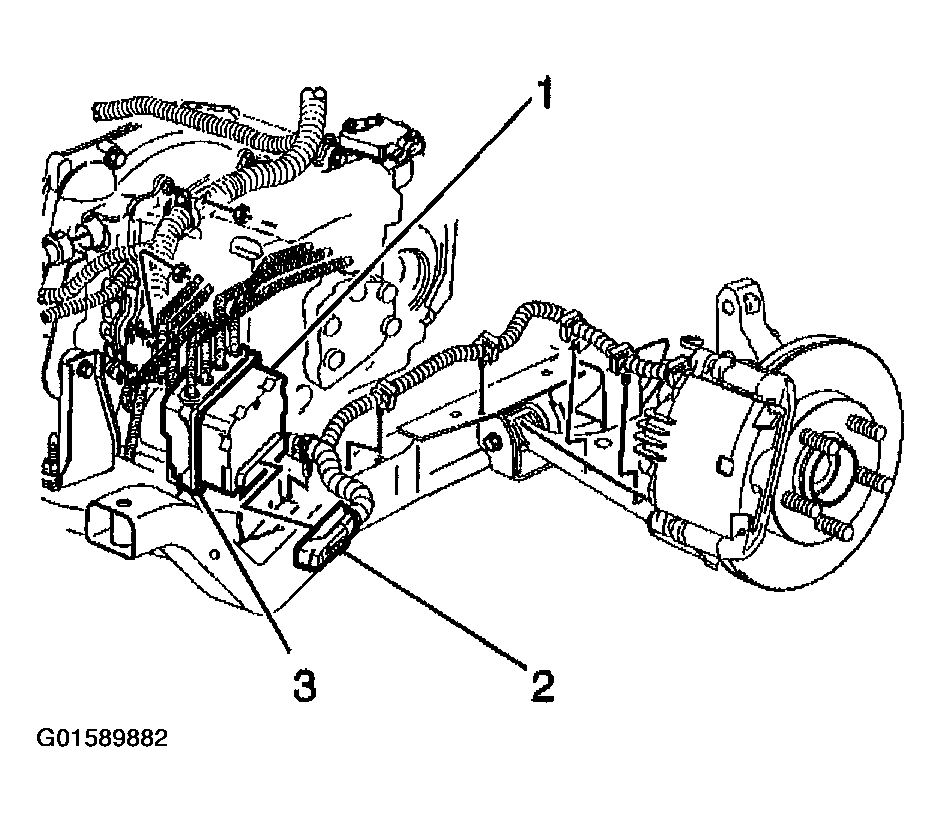

Fig 2: Disconnecting EBCM Harness Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the EBCM harness connector (2) from the EBCM (1).
Brush off any dirt or debris that has accumulated on the EBCM/BPMV assembly.
Remove the 4 EBCM to BPMV screws.
Important:
- Do not pry apart using a tool. Be careful not to damage the BPMV surface.
- Care must be taken not to damage the solenoid valves when the EBCM is removed from the BPMV.

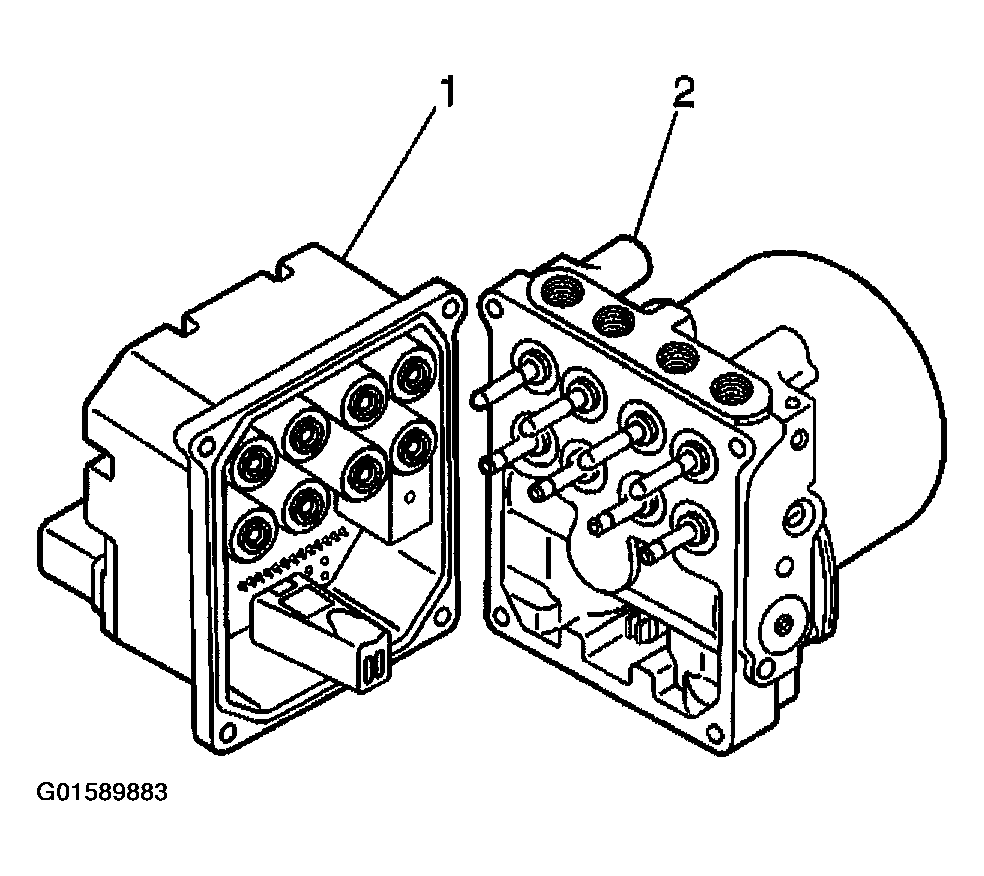

Fig 3: Removing Electronic Brake Control Module From Brake Pressure Modulator Valve

Courtesy of GENERAL MOTORS CORP.

Remove the EBCM (1) from the BPMV (2) by gently pulling apart until separated.
