Installation Procedure

  1. Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
  2. Install the EBCM (1) to the BPMV (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

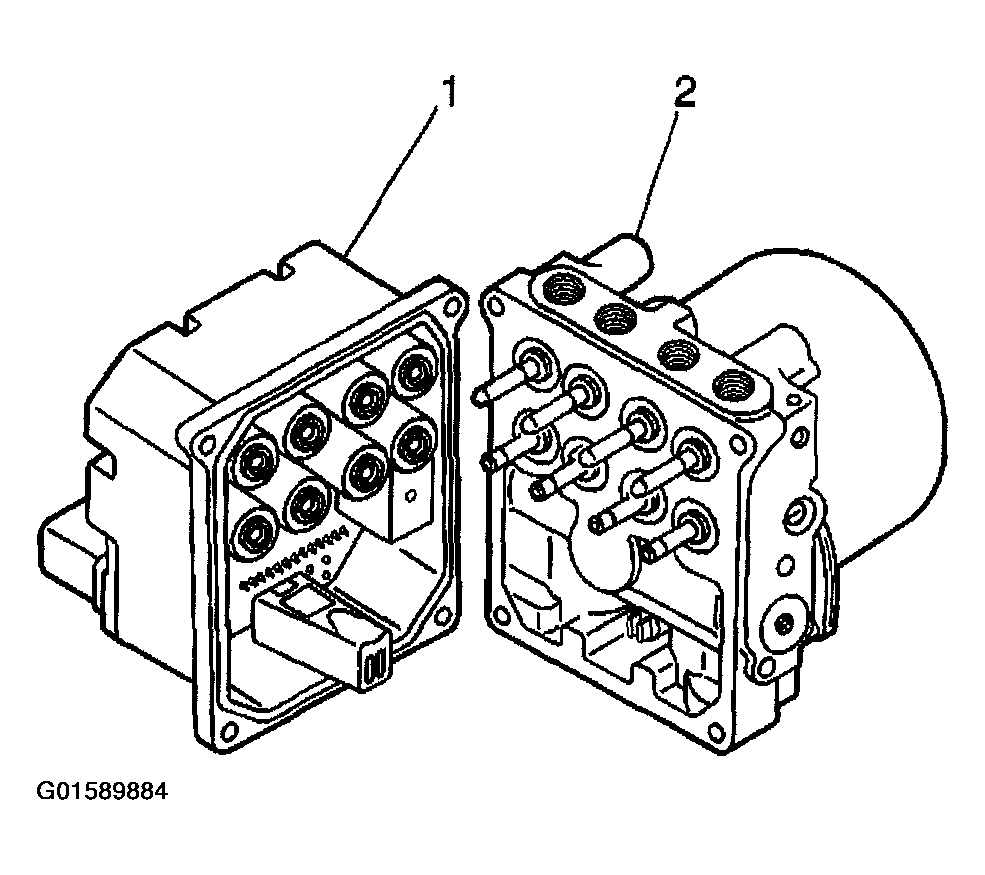

    3. Fig 1: Installing Electronic Brake Control Module To Brake Pressure Modulator Valve
    G01589884Courtesy of GENERAL MOTORS CORP.
  3. Install the 4 screws that attach the EBCM (1) to the BPMV (2).

    Tighten

    Tighten the screws to 5 N.m (44 lb in).

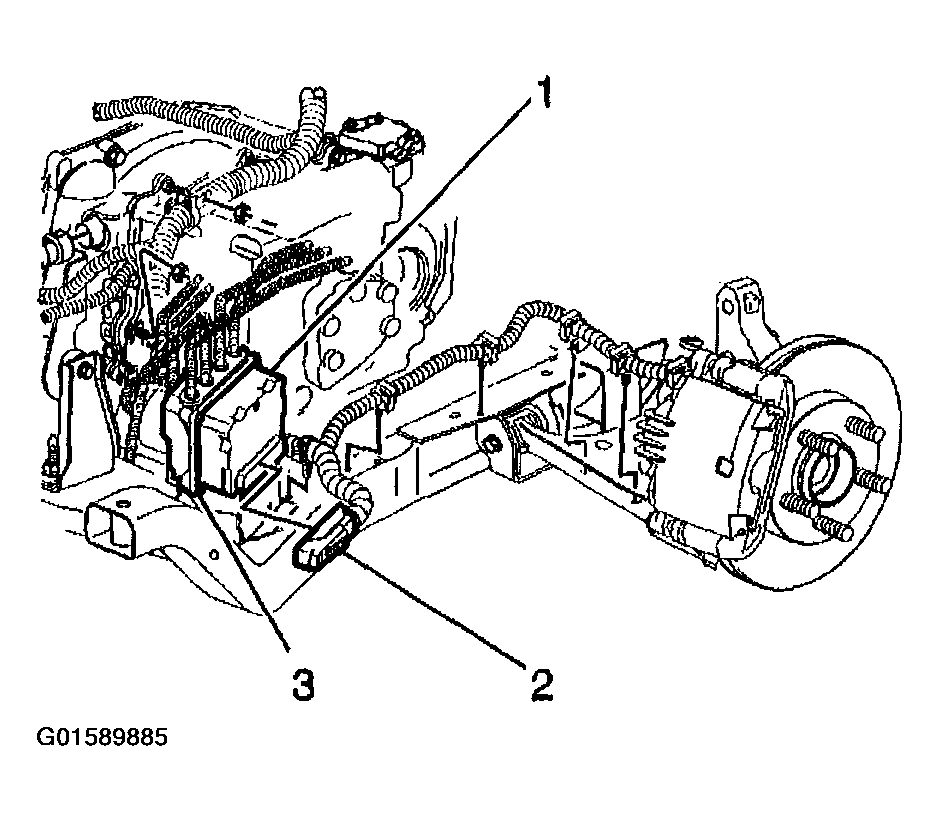

    4. Fig 2: Connecting Electronic Brake Control Module Harness
    G01589885Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector (2) to the EBCM (1).

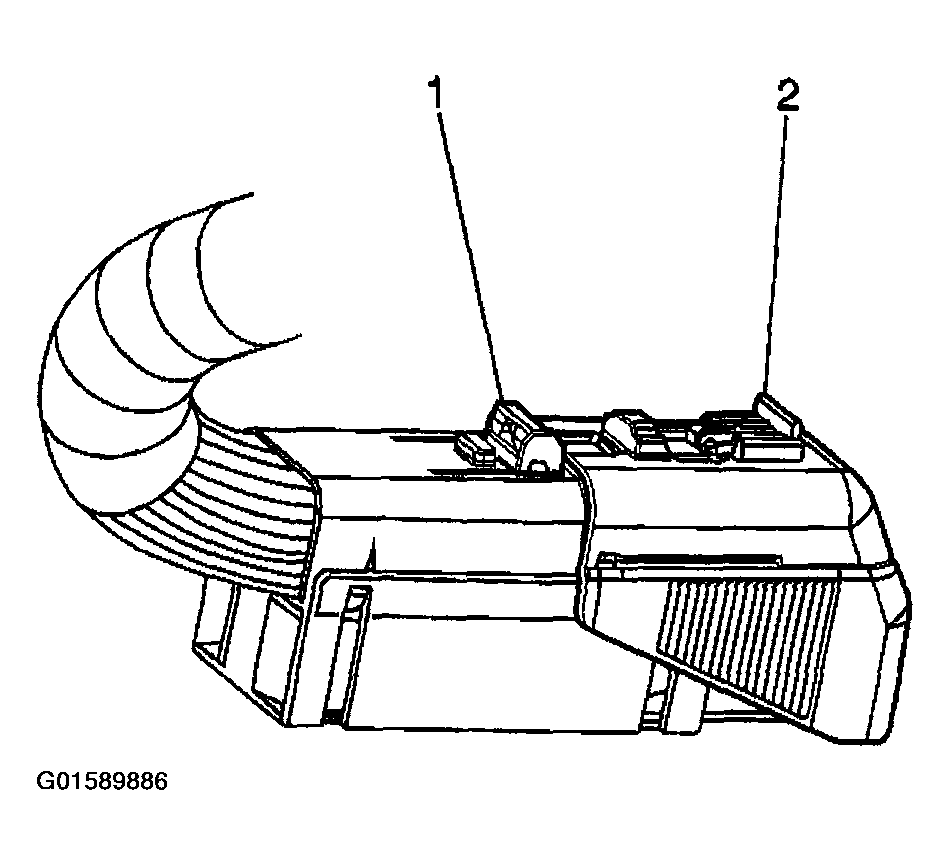

    5. Fig 3: Installing Connector Position Assurance (CPA) To Connector Lock Tab
    G01589886Courtesy of GENERAL MOTORS CORP.
  5. Push down the harness connector lock tab (1) and then move the sliding connector cover back in the home position to lock.
  6. Push the CPA (2) back into place.
  7. Install the left engine splash shield.
  8. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  9. Perform the Diagnostic System Check-ABS .
