Right Hand UNDERHOOD Fuse Block

NOTE: Right hand underhood fuse block is located in the center rear of the engine compartment, near the cowl. See Figure .

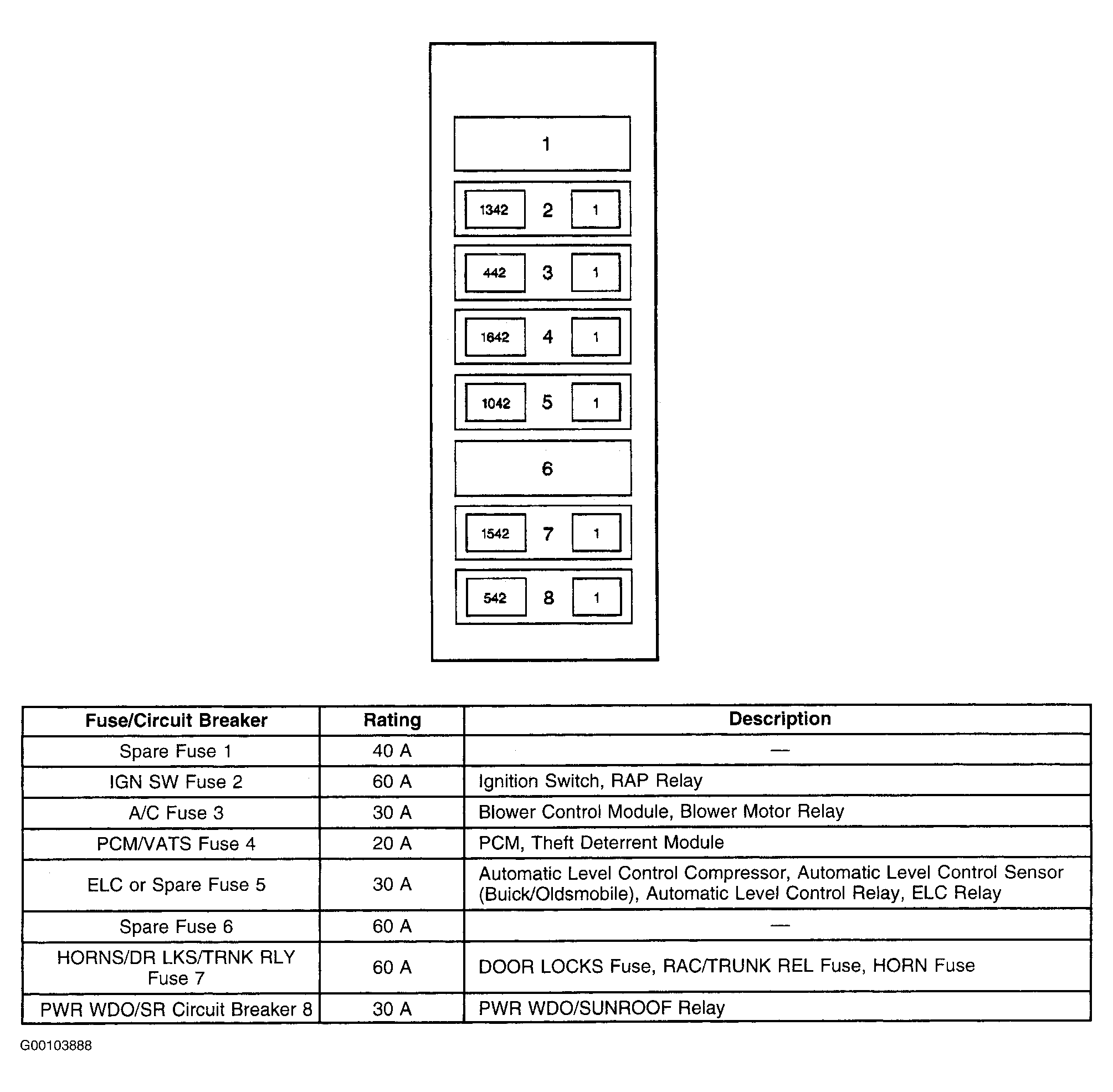

Fig 1: Identifying Right Hand Underhood Fuse Block Components
G00103888Courtesy of GENERAL MOTORS CORP.
