Left Hand UNDERHOOD Fuse Block

NOTE: Left hand underhood fuse block is located in the center rear of the engine compartment, near the cowl. See Fig 1 .

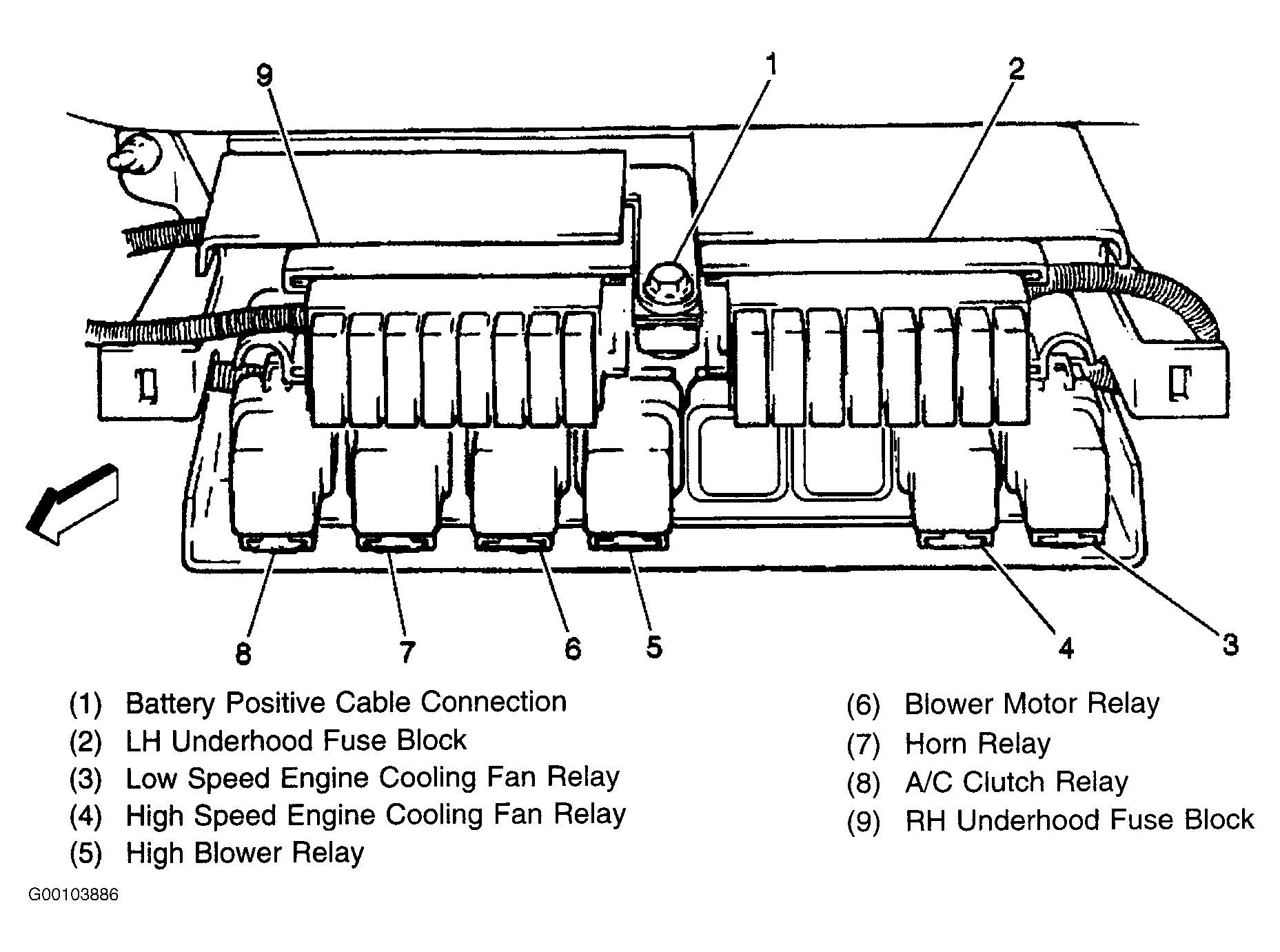

Fig 1: Locating Left & Right Hand Underhood Fuse Blocks

Courtesy of GENERAL MOTORS CORP.

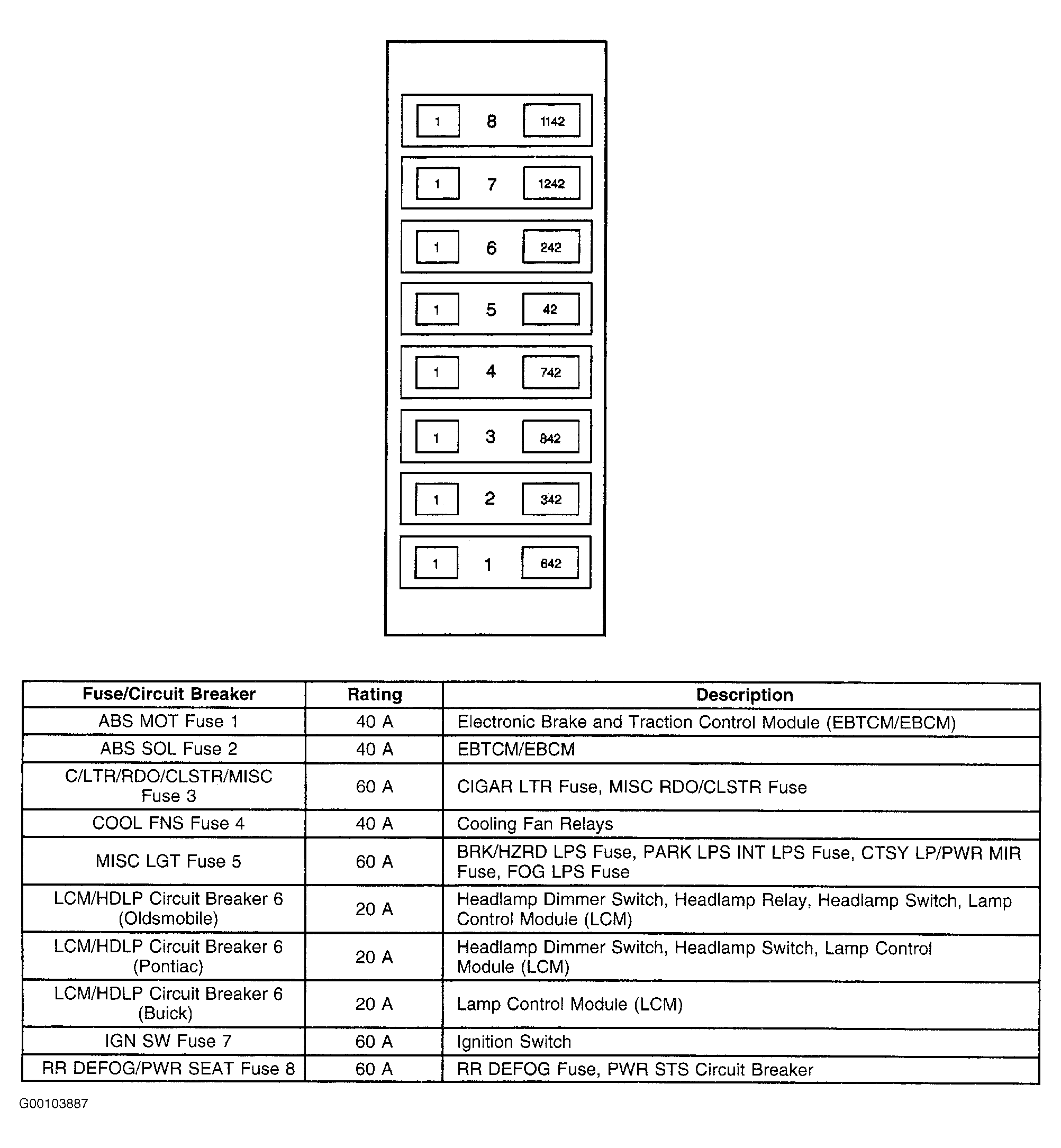

Fig 2: Identifying Left Hand Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.
