Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located under driver's side of instrument panel. See Fig 1 .

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

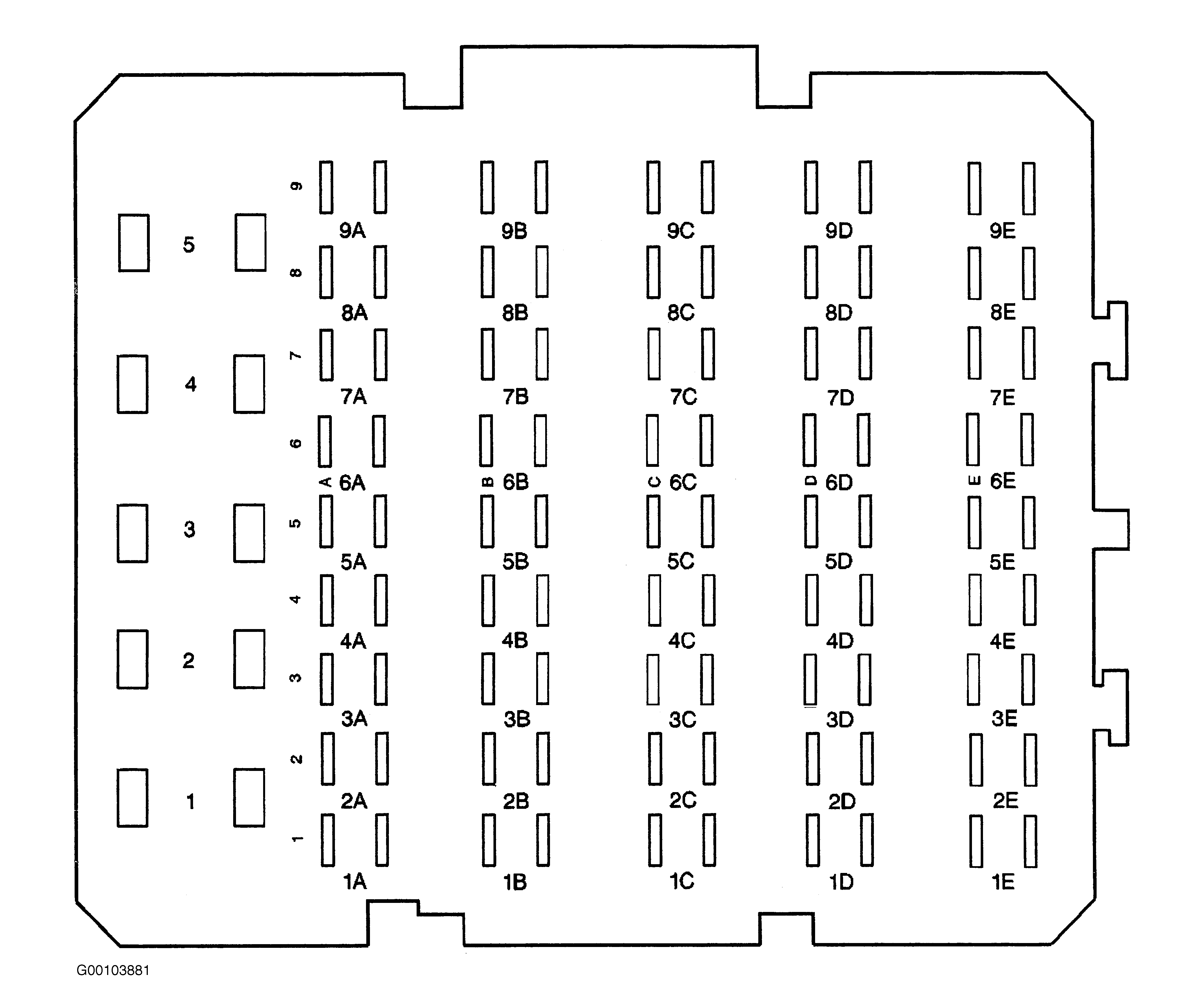

Fig 2: Identifying Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

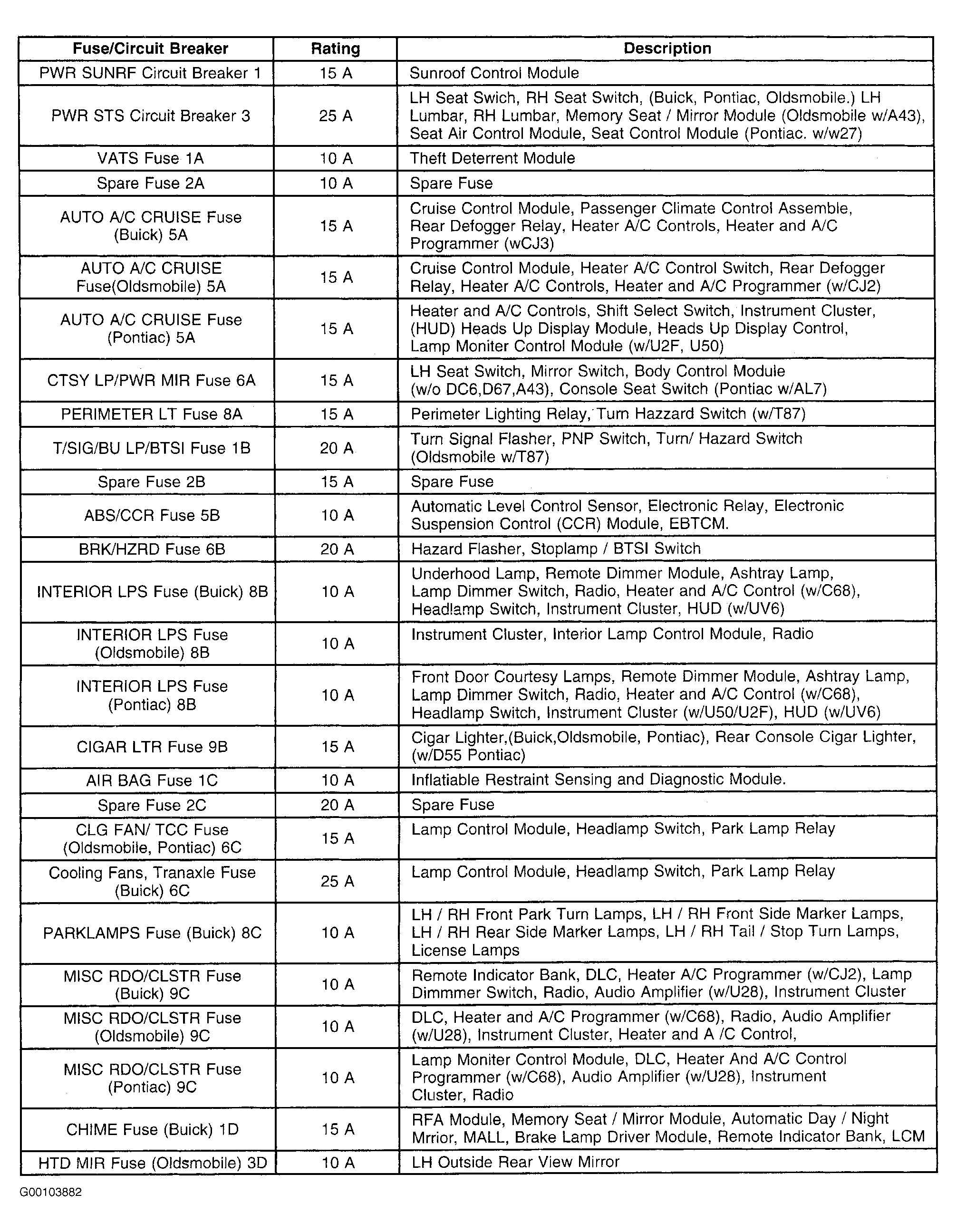

Fig 3: Instrument Panel Fuse Block Legend (1 of 2)

Courtesy of GENERAL MOTORS CORP.

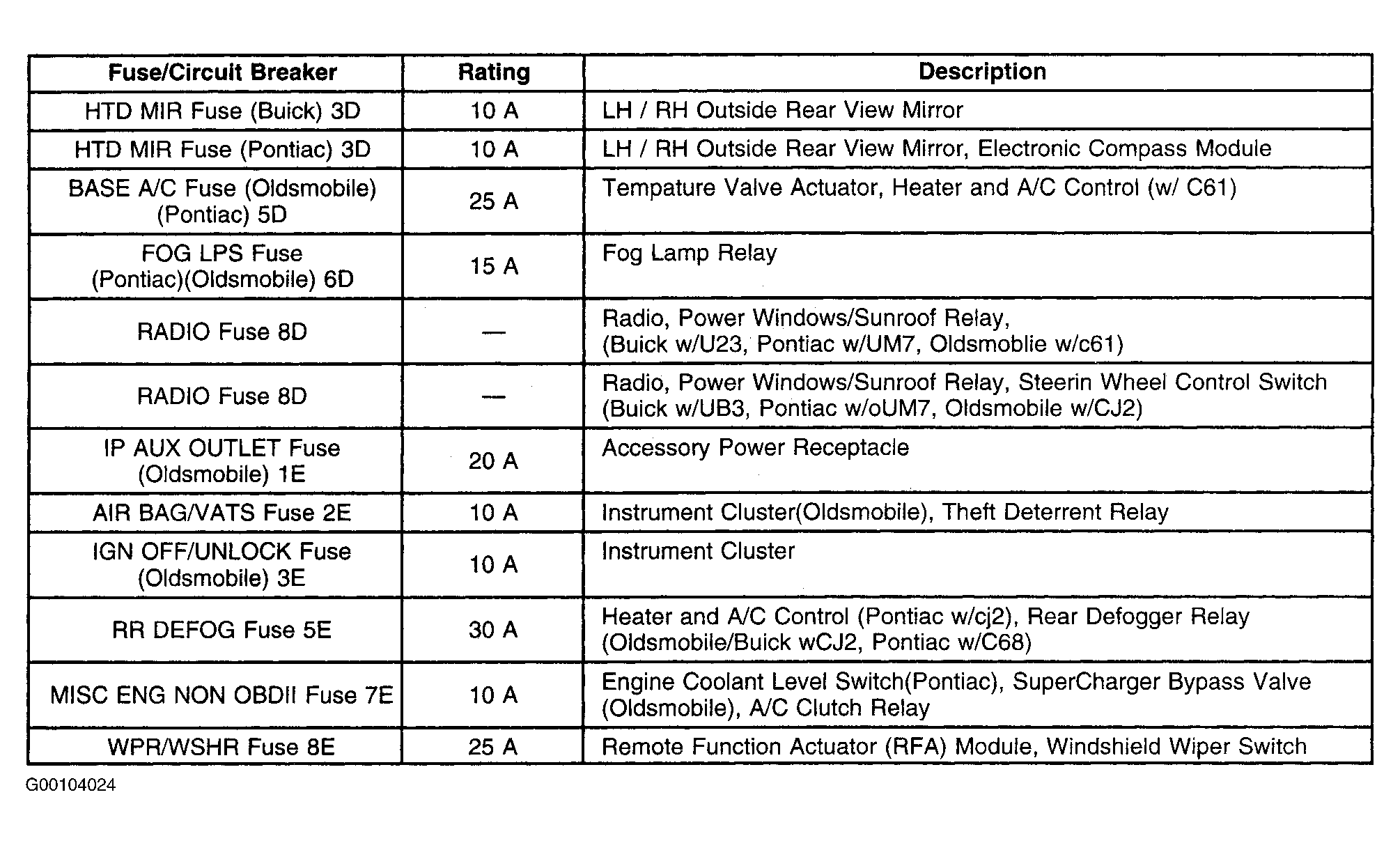

Fig 4: Instrument Panel Fuse Block Legend (2 of 2)

Courtesy of GENERAL MOTORS CORP.
