Installation Procedure

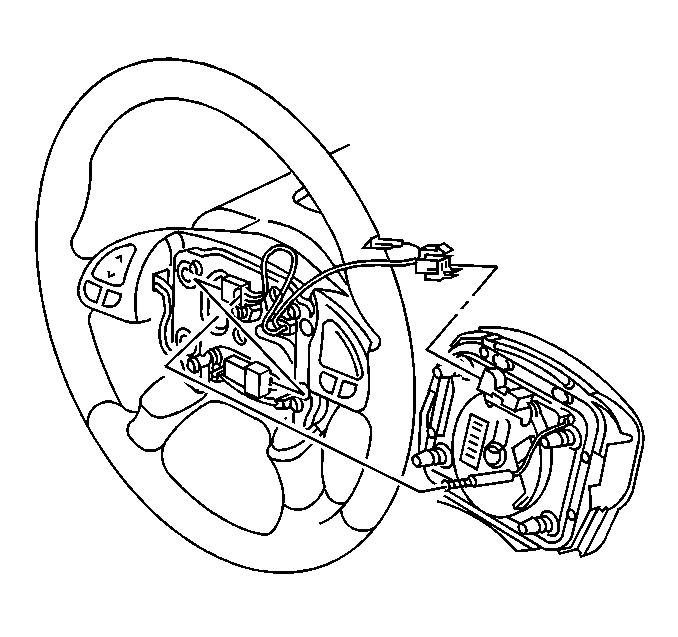

Fig 1: View Of Electrical Connectors And Inflatable Restraint Steering Wheel Module
GM294362Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connections to the inflatable restraint steering wheel module.
    Fig 2: Inflatable Restraint Steering Wheel Module
    GM294356Courtesy of GENERAL MOTORS CORP.
  2. Install the inflatable restraint steering wheel module until it snaps into place.
  3. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
