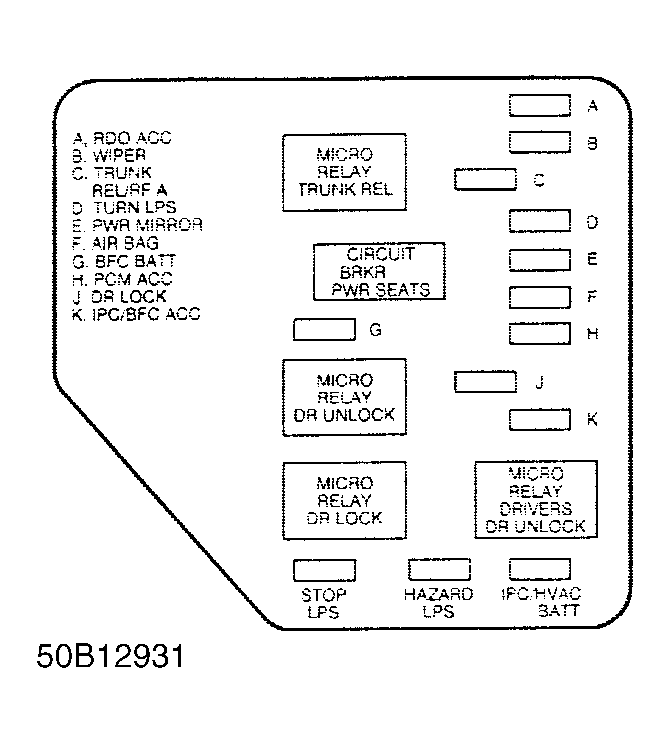

Instrument Panel Fuse Block Identification - Left
Courtesy of GENERAL MOTORS CORP.
- A
- Radio
- B
- Wipers
- C
- Trunk Release & Remote Lock Control
- D
- Turn Signals
- E
- Power Mirrors
- F
- Air Bag
- G
- Body Function Control Module
- H
- Powertrain Control Module
- J
- Door Locks
- K
- Body Function Control Module, Cluster
- STOP LPS
- Stop Lamps
- HAZARD LPS
- Hazard Lamps
- IPC/HVAC BATT
- Cluster, Climate Control
- MICRO RELAY TRUNK REL
- Remote Trunk Release
- CIRCUIT BRKR PWR SEATS
- Power Seats
- MICRO RELAY DR UNLOCK
- Door Locks
- MICRO RELAY DR LOCK
- Door Locks
- MICRO RELAY DRIVERS DR LOCK
- Not Used
