Right Instrument Panel Junction Block

NOTE: Right instrument panel junction block is located under driver's side of instrument panel. See Fig 1 .

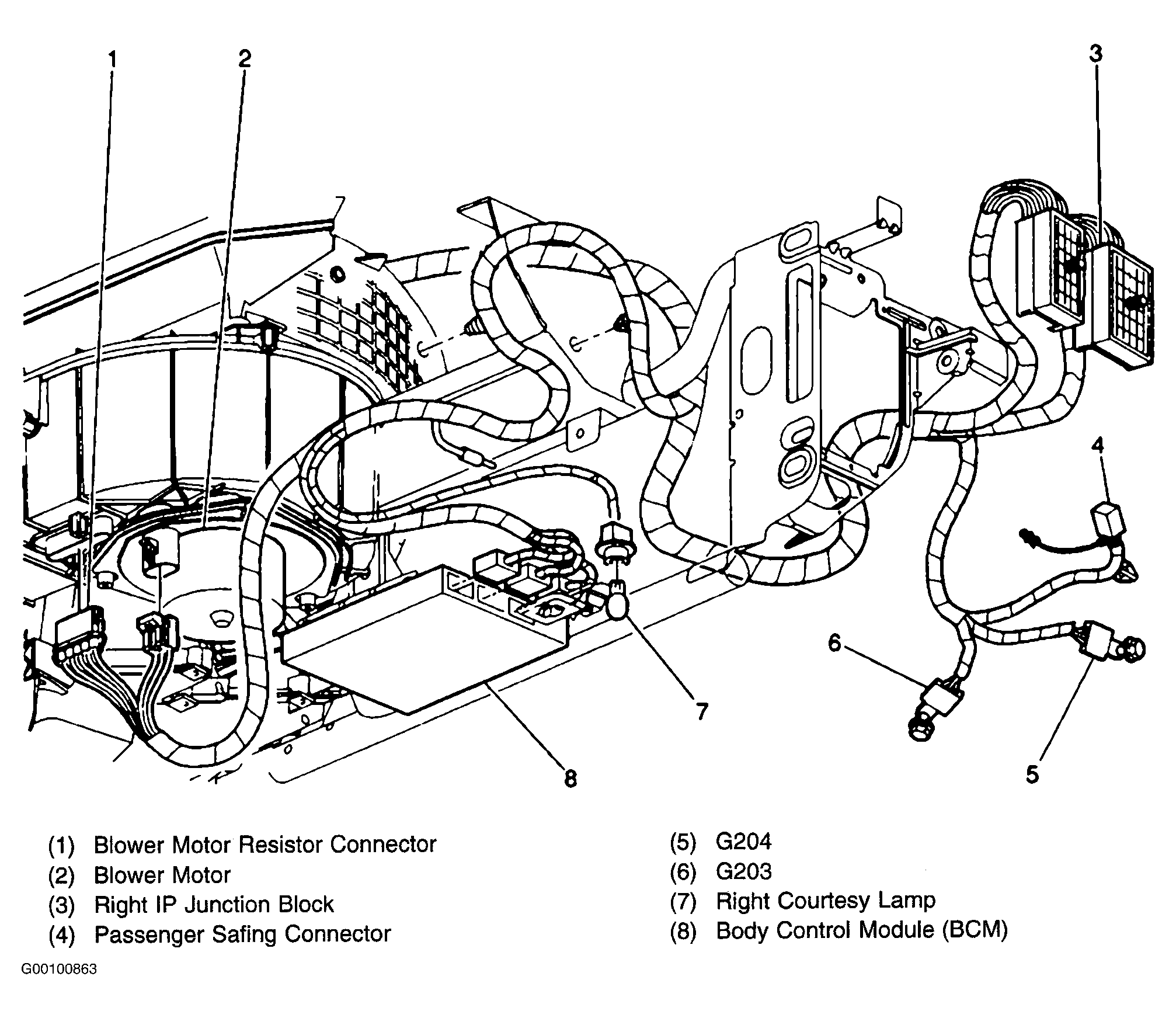

Fig 1: Locating Right Instrument Panel Junction Block

Courtesy of GENERAL MOTORS CORP.

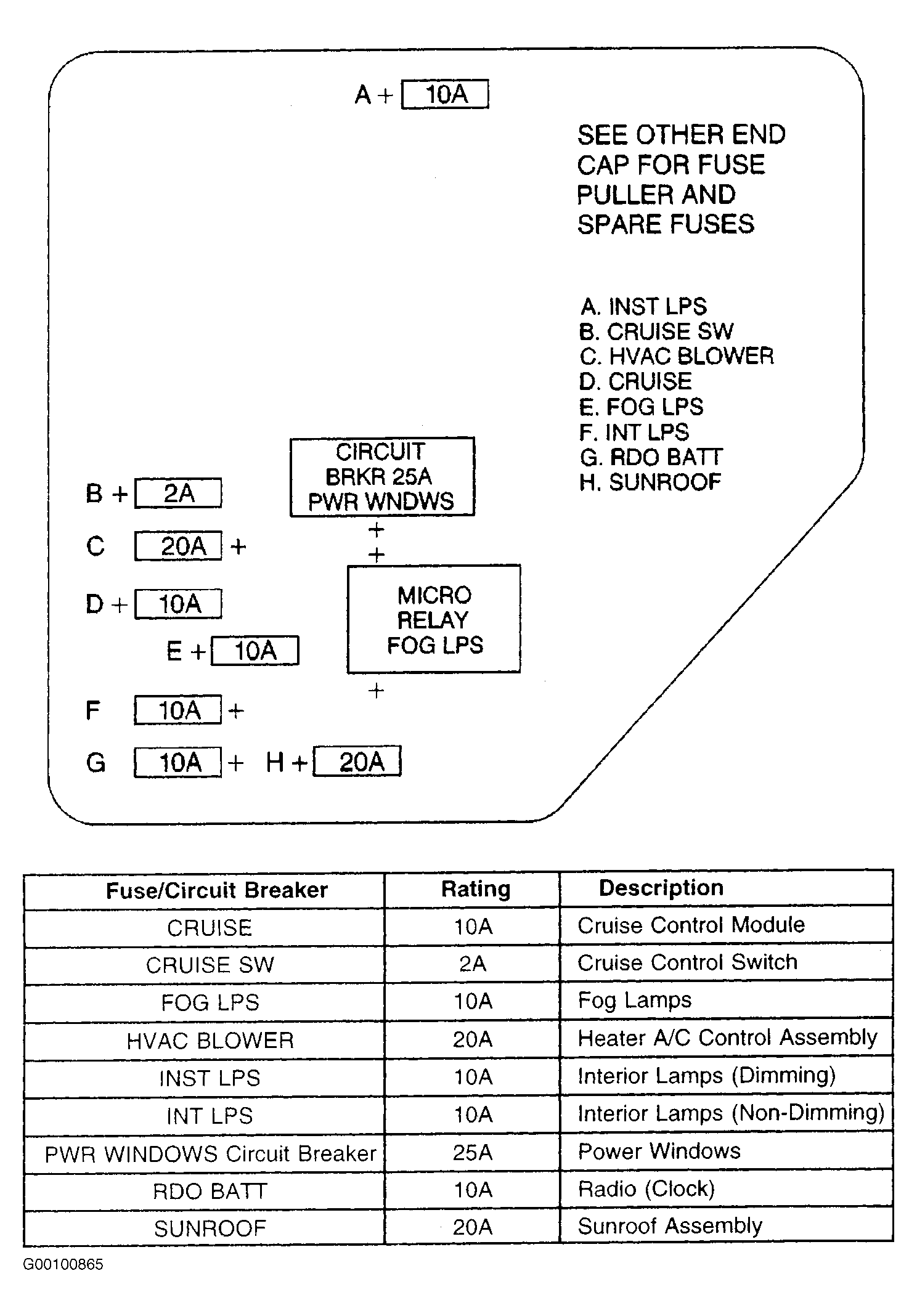

Fig 2: Identifying Right Instrument Panel Junction Block Components

Courtesy of GENERAL MOTORS CORP.
