Home >> Oldsmobile >> 1997 >> Cutlass Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Overhaul & Testing - 4T40-E >> Component Disassembly, Reassembly & Transaxle Reassembly >> Notes

Component Disassembly, Reassembly & Transaxle Reassembly: Notes

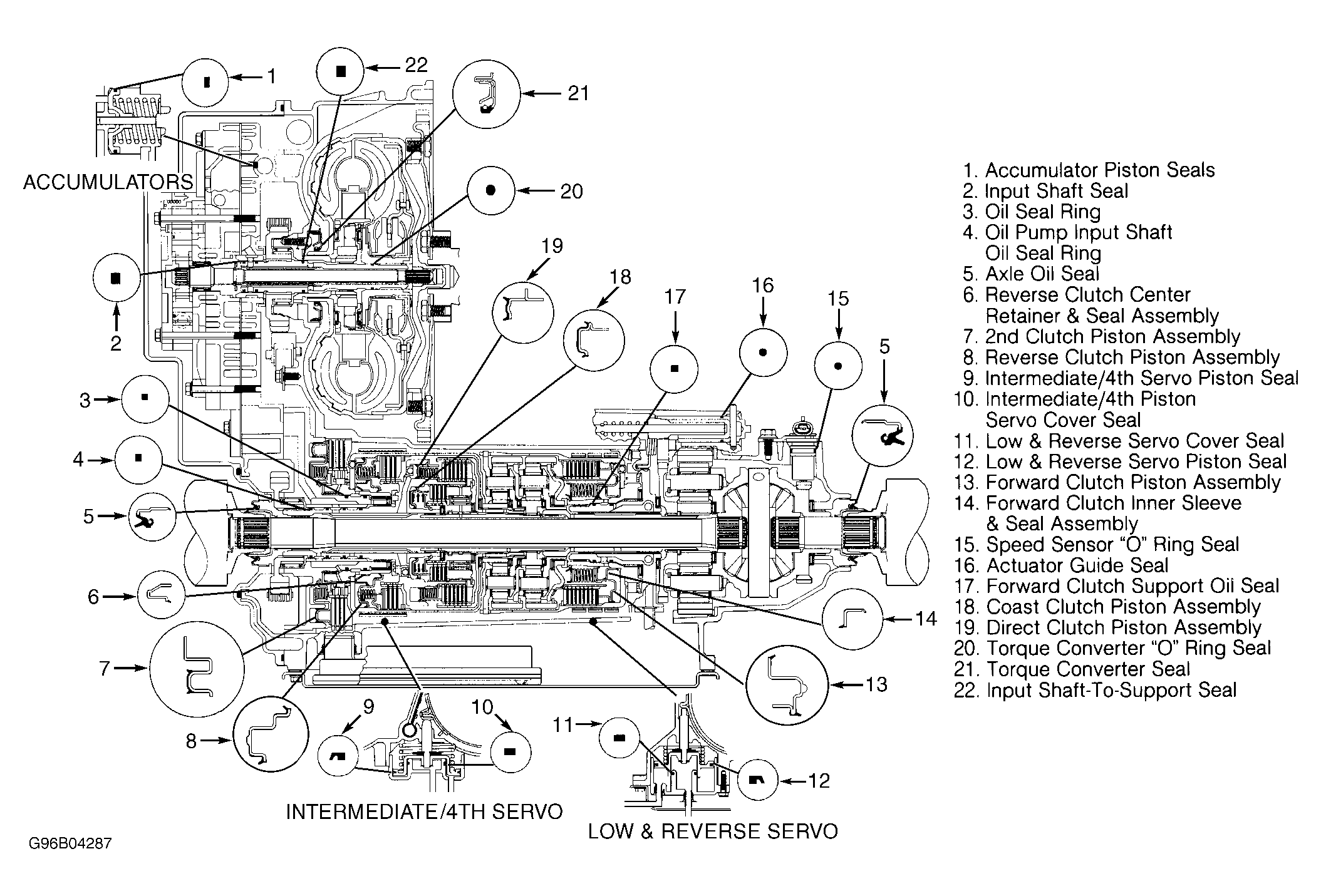

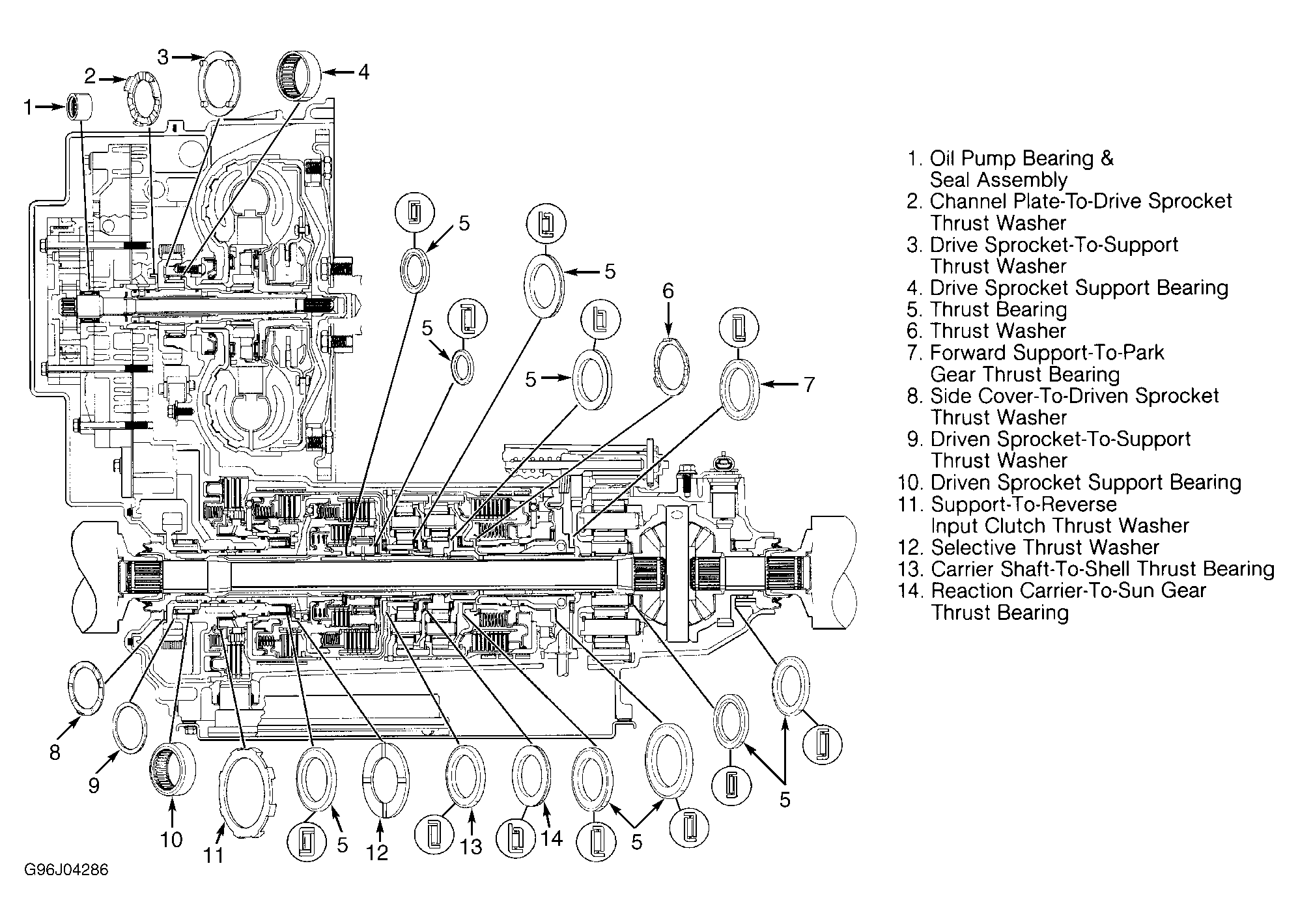

NOTE: Following procedures also include transaxle reassembly. Transaxle components are installed into transaxle as components are reassembled. For component seal, thrust bearing and thrust washer locations, see Figure and Figure .
