Fuse Block

Fuse block is located at driver's end of instrument panel.

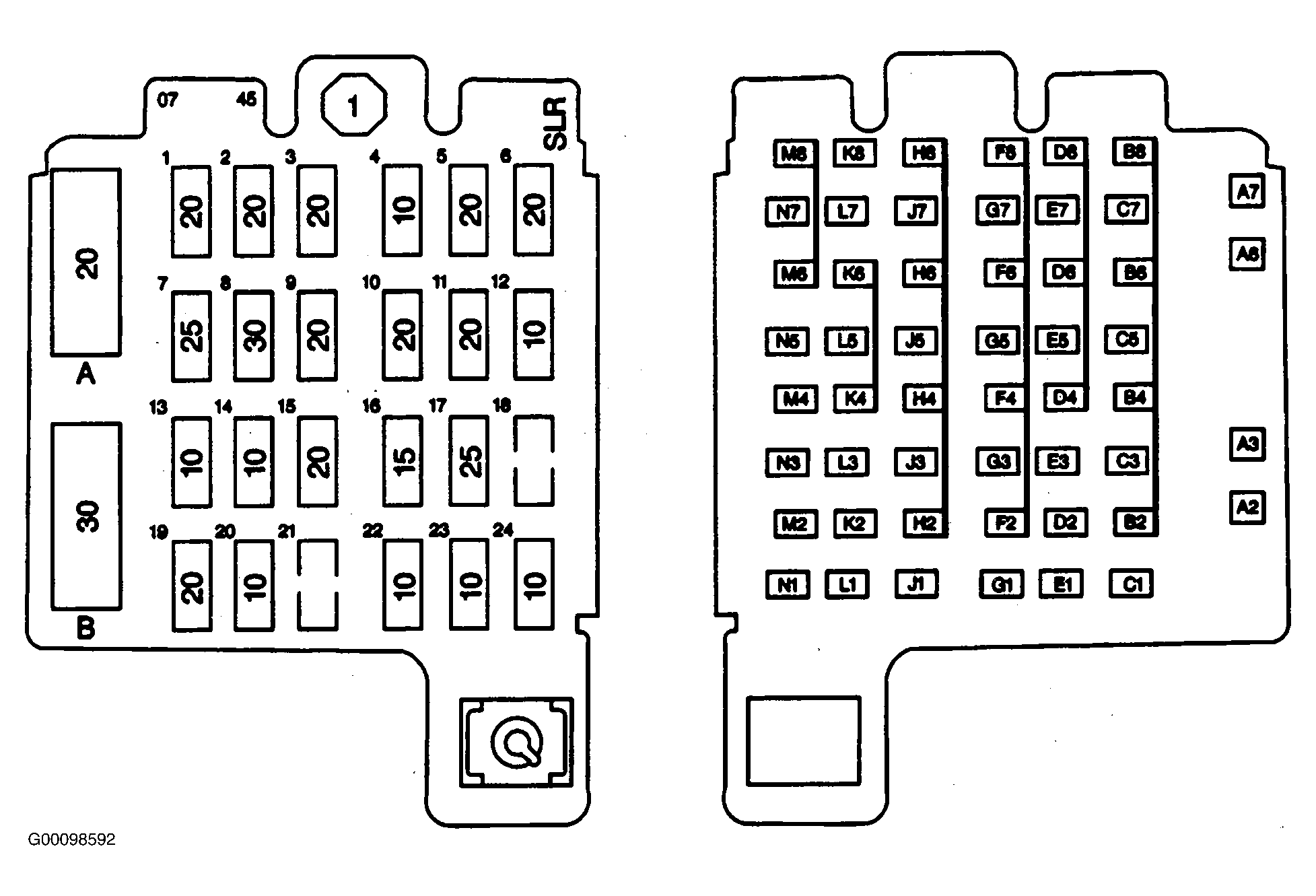

Fig 1: Fuse Block View

G00098592

Courtesy of GENERAL MOTORS CORP.

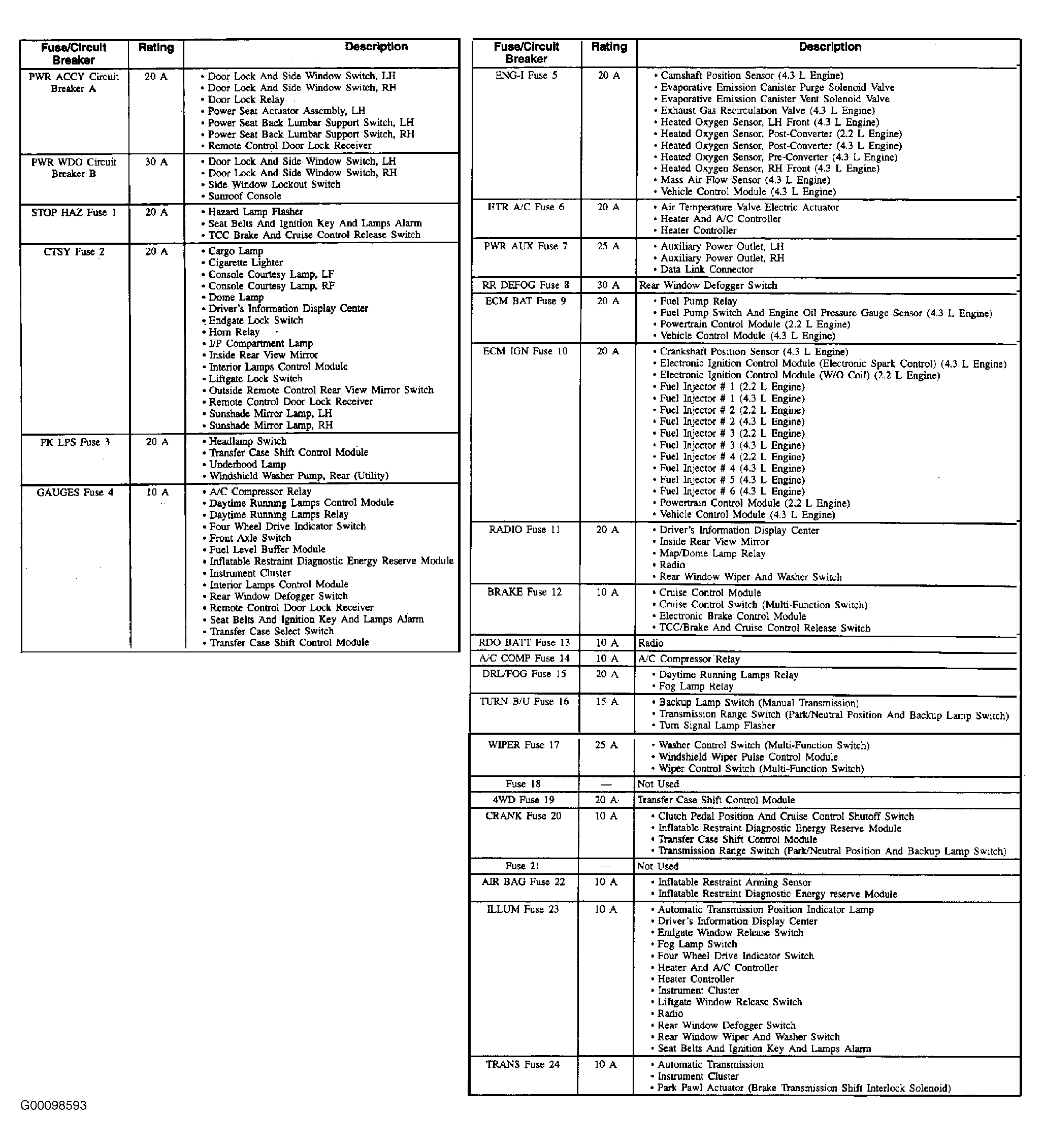

Fig 2: Fuse Block Identification

G00098593

Courtesy of GENERAL MOTORS CORP.
