Left Instrument Panel Fuse Block

NOTE: Left instrument panel fuse block is located under driver's side of instrument panel, to the left of the steering wheel.

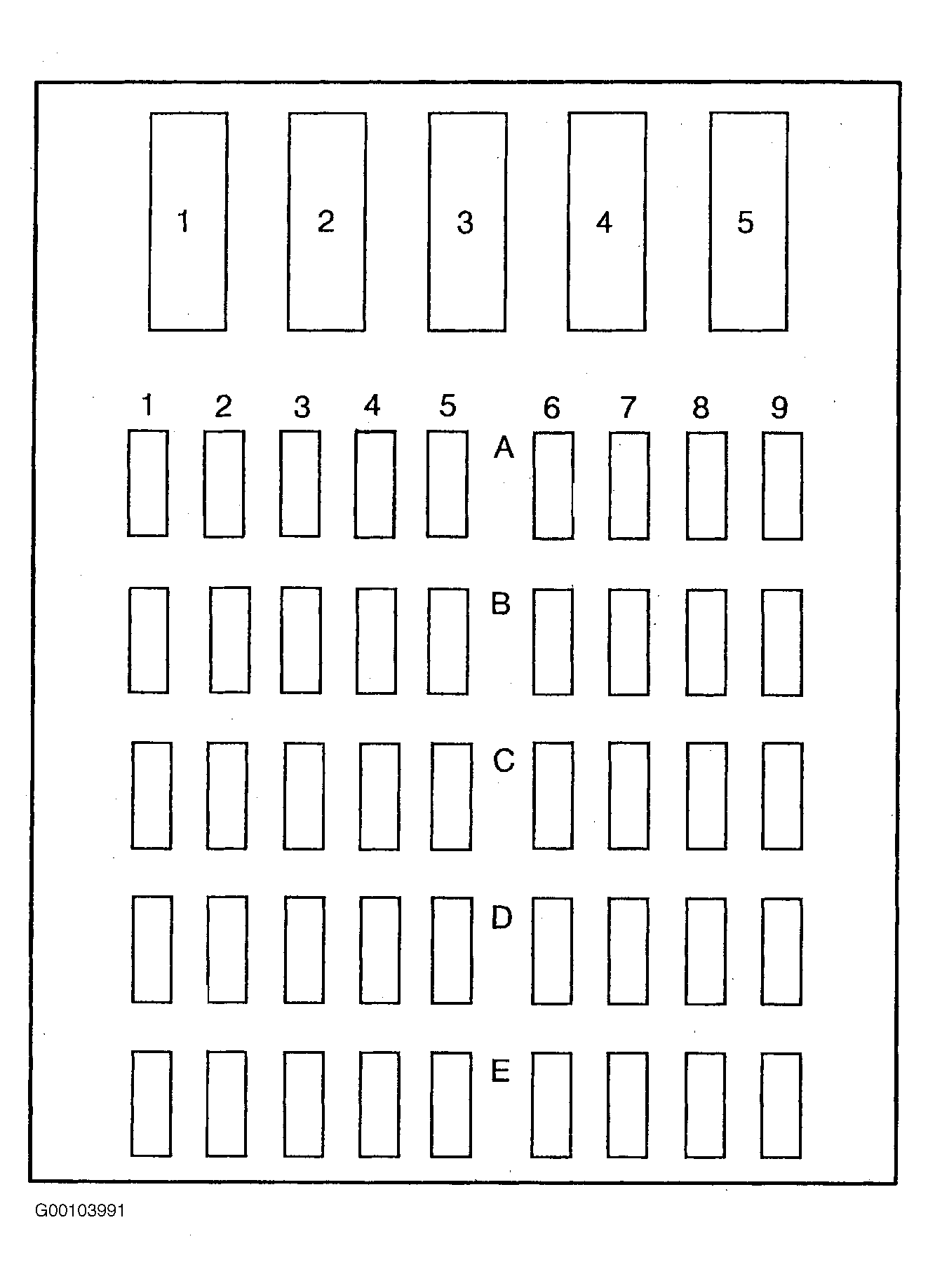

Fig 1: Identifying Left Instrument Panel Fuse Block Fuses

Courtesy of GENERAL MOTORS CORP.

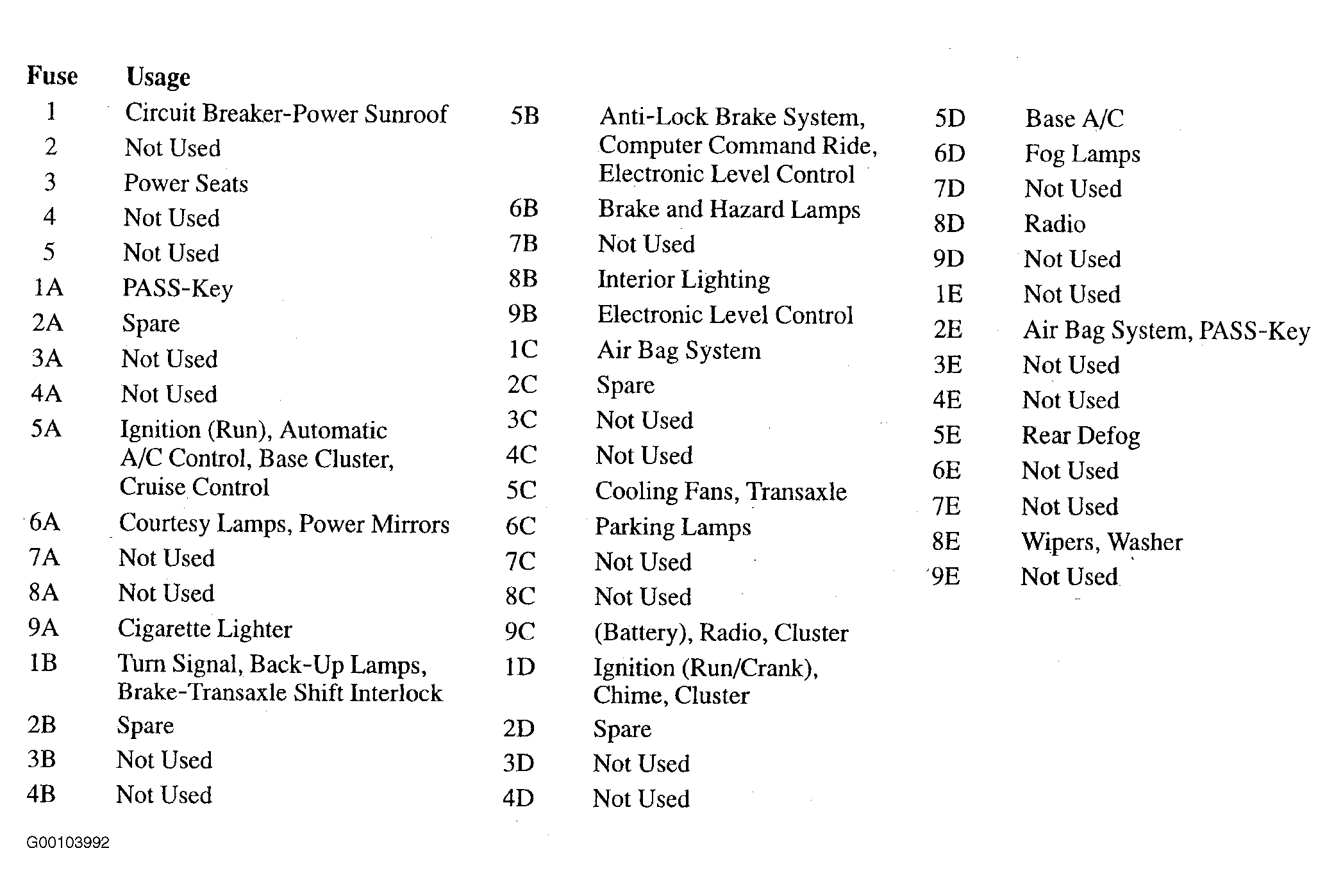

Fig 2: Left Instrument Panel Fuse Block Legend (LeSabre)

Courtesy of GENERAL MOTORS CORP.

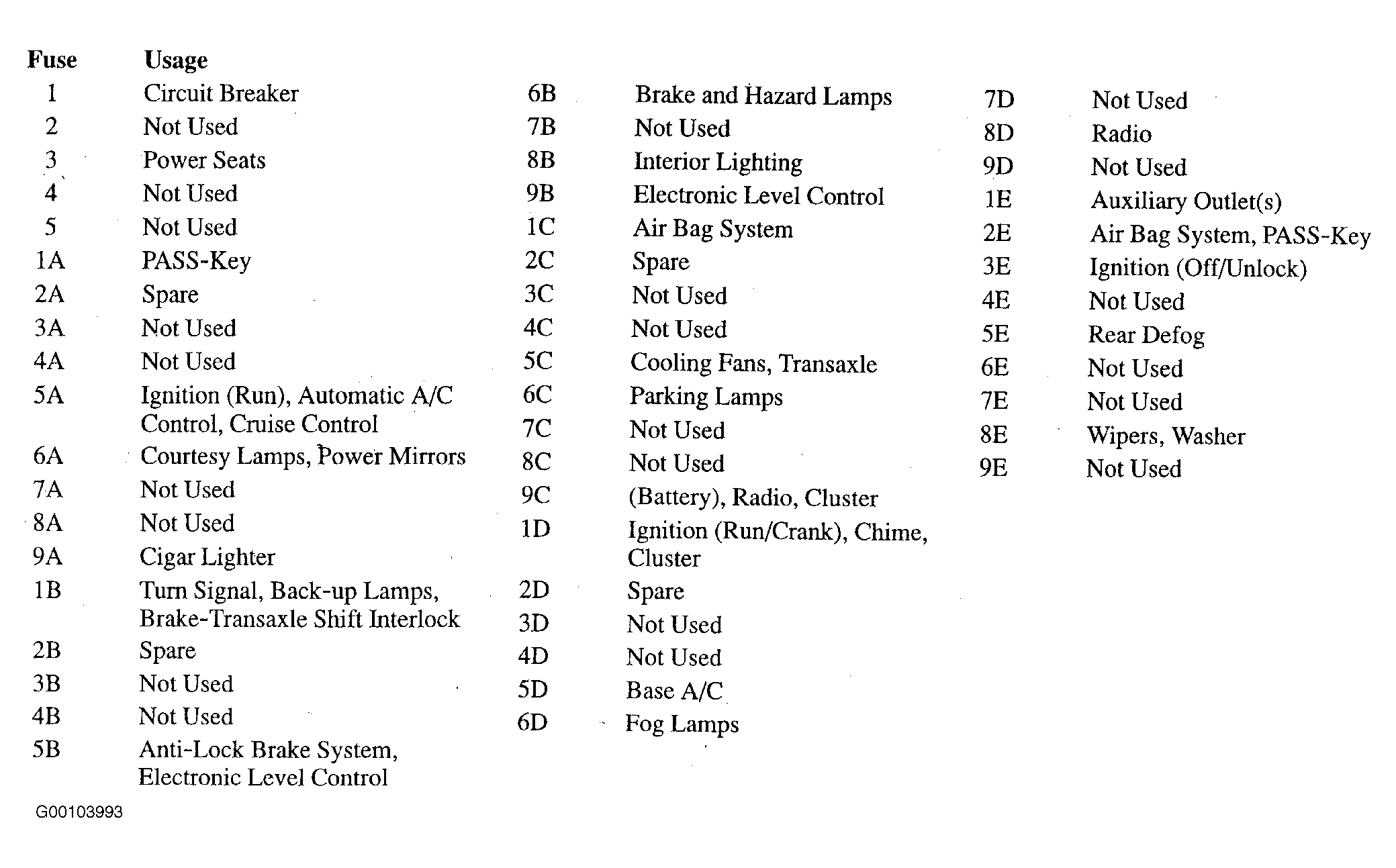

Fig 3: Left Instrument Panel Fuse Block Legend (Bonneville)

Courtesy of GENERAL MOTORS CORP.

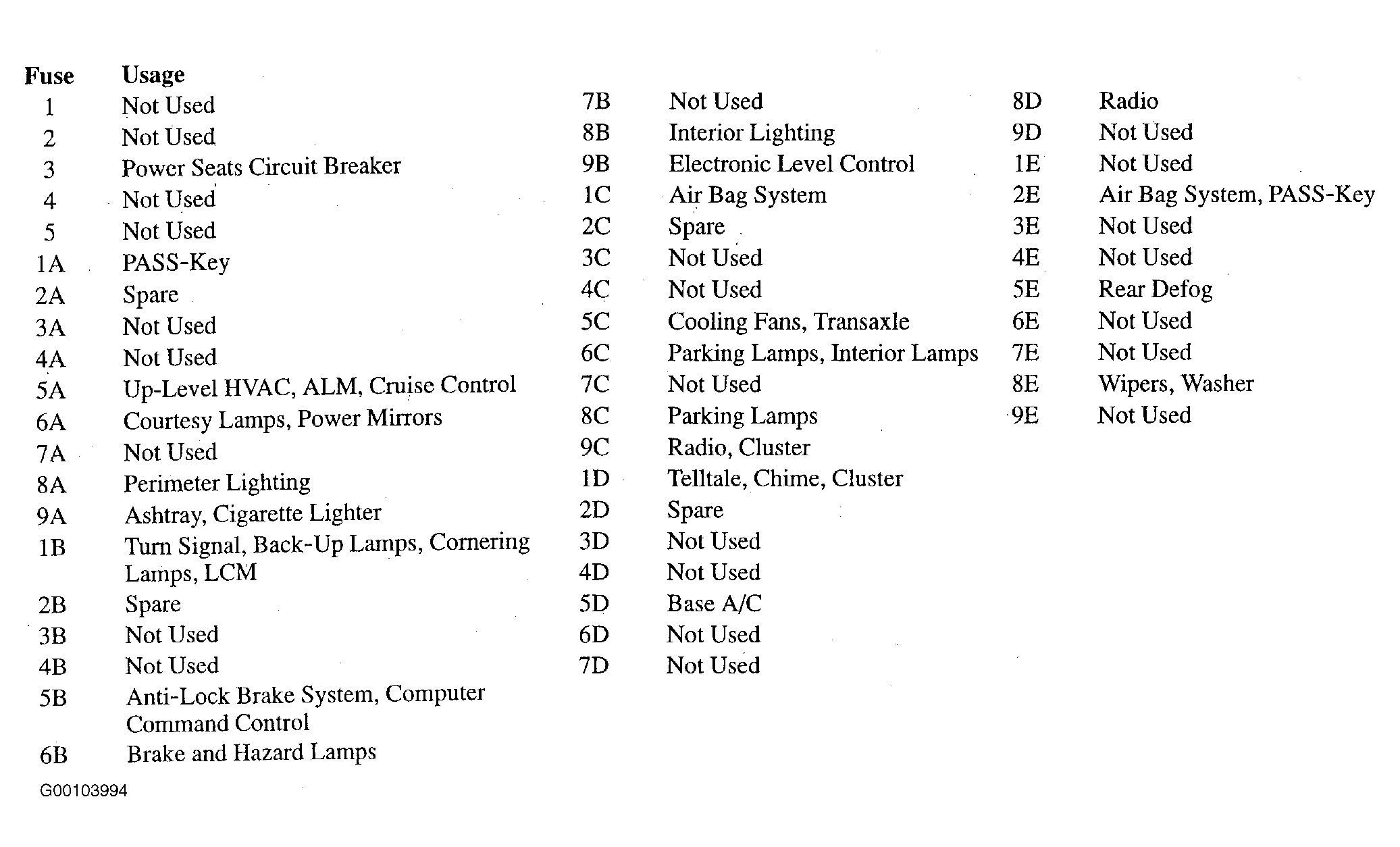

Fig 4: Identifying Left Instrument Panel Fuse Block Legend (Eighty-Eight & LSS)

Courtesy of GENERAL MOTORS CORP.
