Connector Identification
Connector Identification
To identify connector terminals, see
Fig 1
.

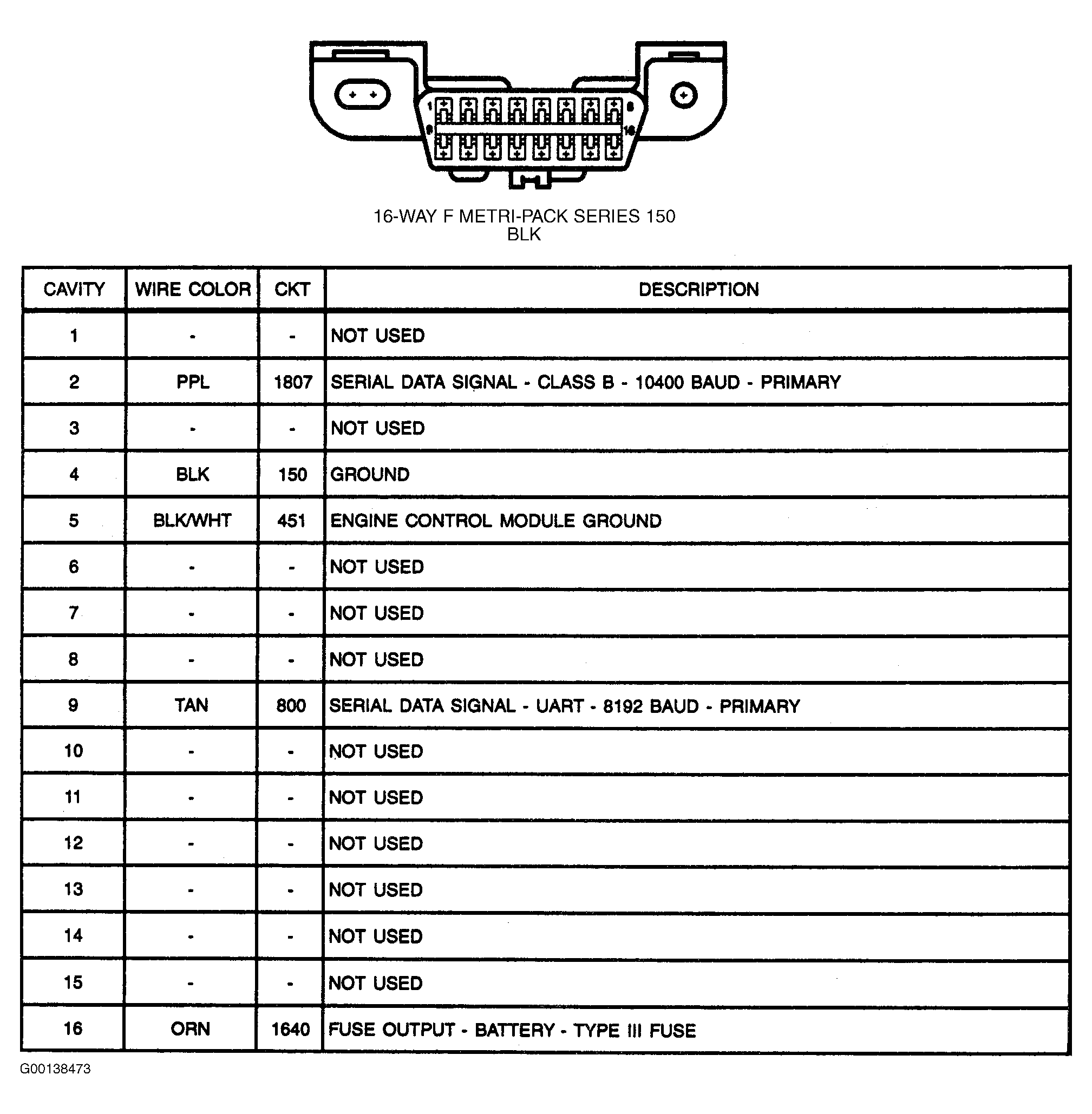

Fig 1: Identifying DLC Terminals
Courtesy of GENERAL MOTORS CORP.
