Cruise Control Systems: Wiring Diagram

For 1992 model wiring diagrams, see appropriate chassis wiring diagram in WIRING DIAGRAMS Section.

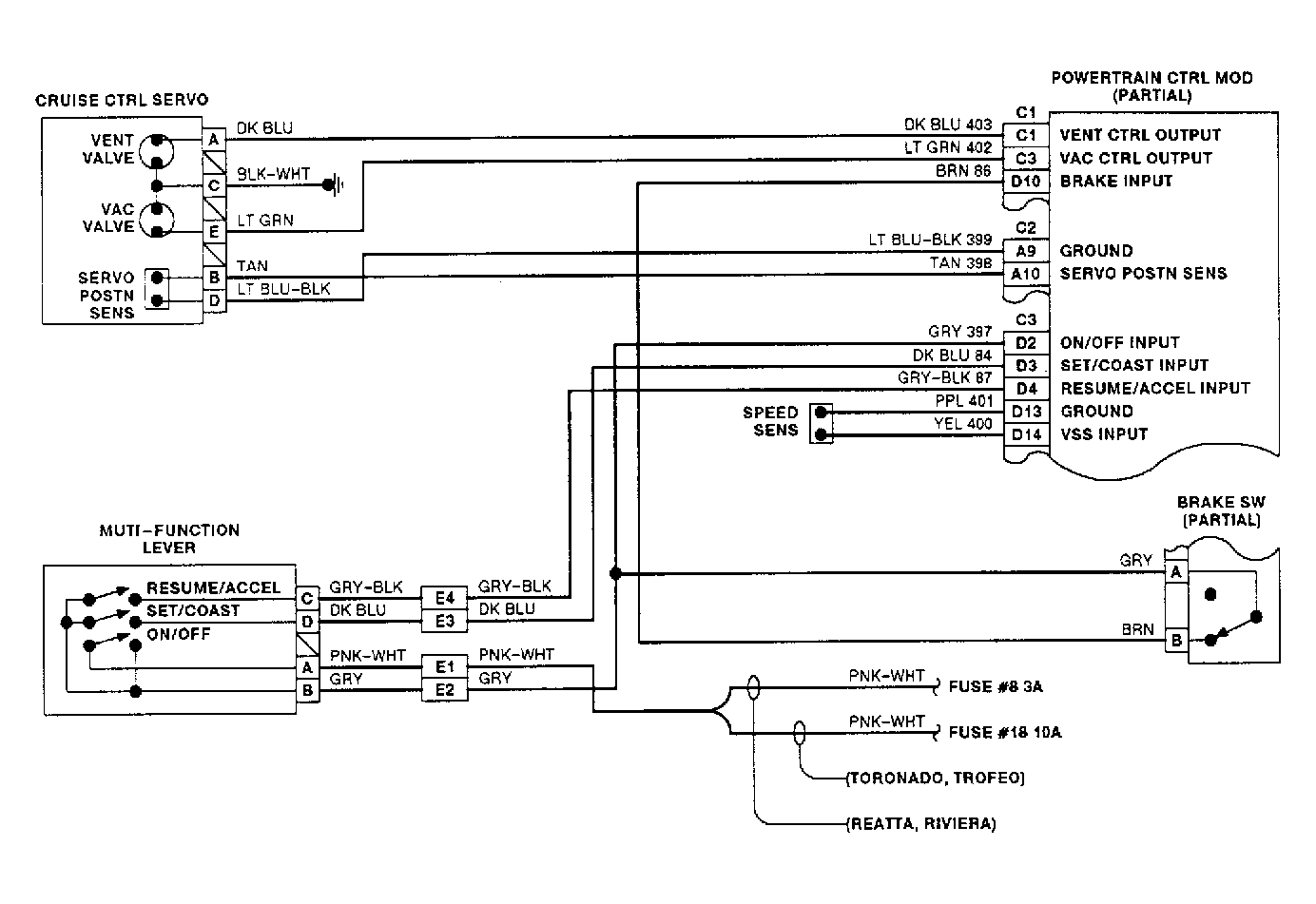

Fig 1: Cruise Control System Wiring Diagram (1991 Reatta, Riviera, Toronado & Trofeo)
