EXPERTEC TSB (336506)

Publication date: 1993-08-31
Reference number: 336506

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 336506, Date of Issue:  08/31/93

ENG. STALL, LONG CRANKS/IDLE/DECEL SURGE (DIAG. REPL. PROM)

Chevrolet 336506

Pontiac 336506

Oldsmobile 336506

Buick 336506

08/31/1993

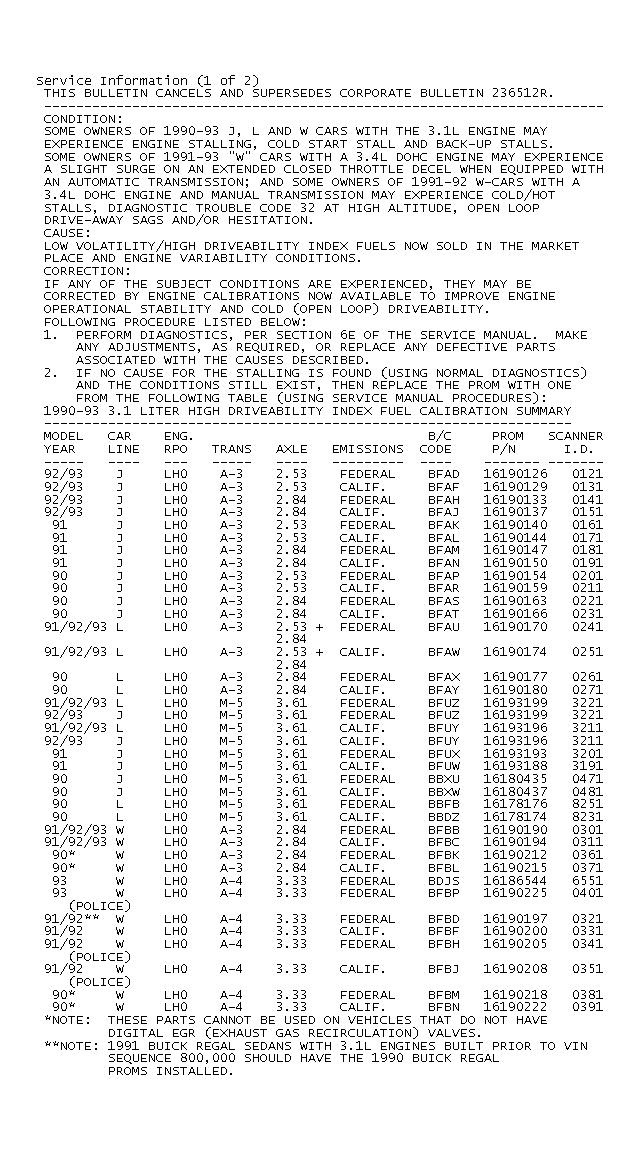

Fig 1: Service Information (1 of 2)
GB0041400

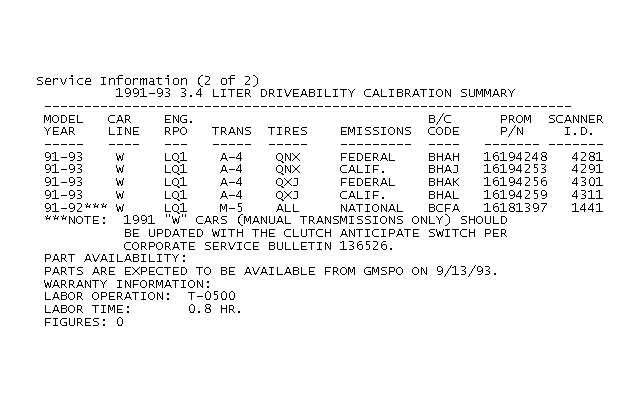

Fig 2: Service Information (2 of 2)
GB0041401
