Test F: Seat Recliner Motor Test
Test F: Seat Recliner Motor Test
To perform Test F, see
Fig 1
.

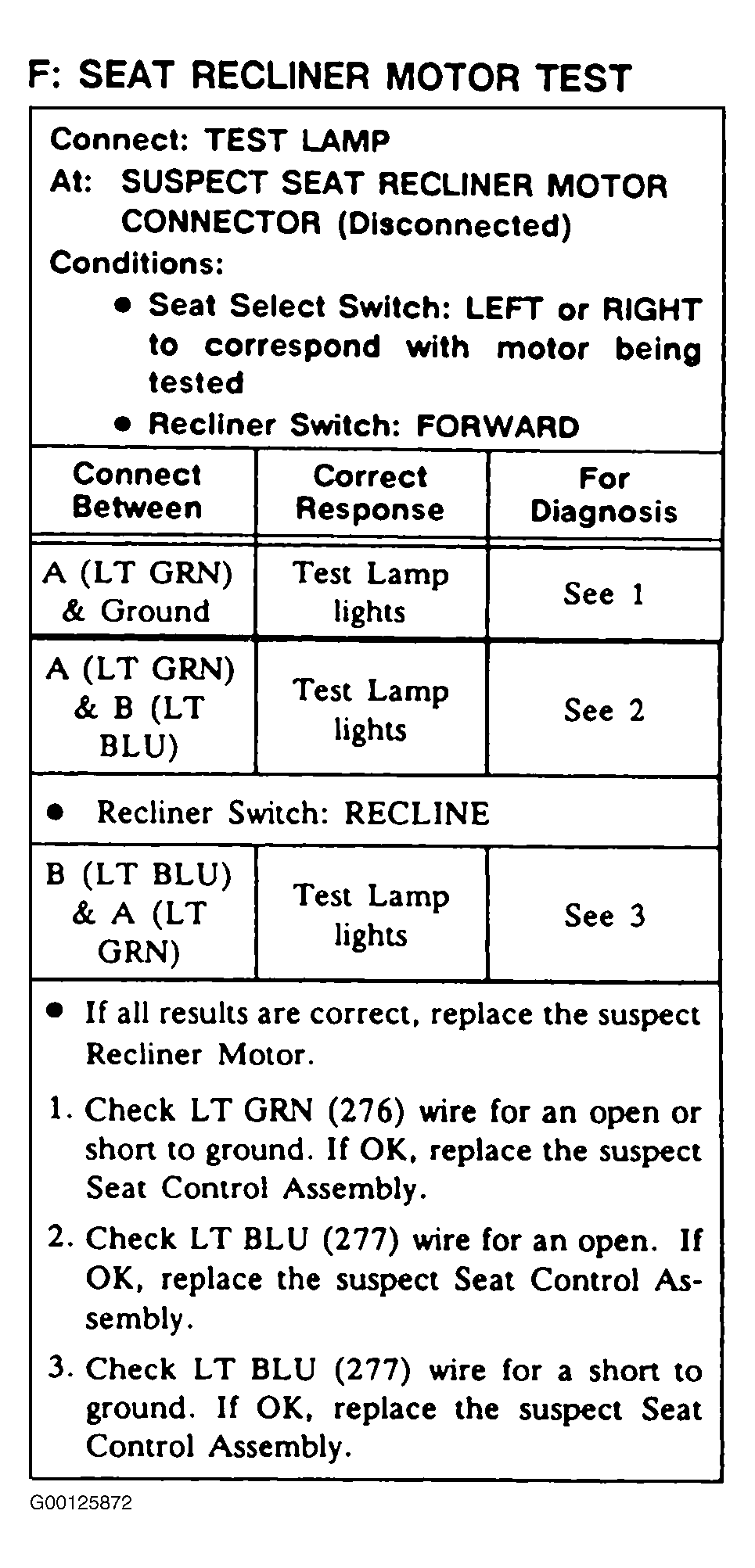

Fig 1: Test F: Seat Recliner Motor Test
Courtesy of GENERAL MOTORS CORP.
