Horizontal Travel Adjustment

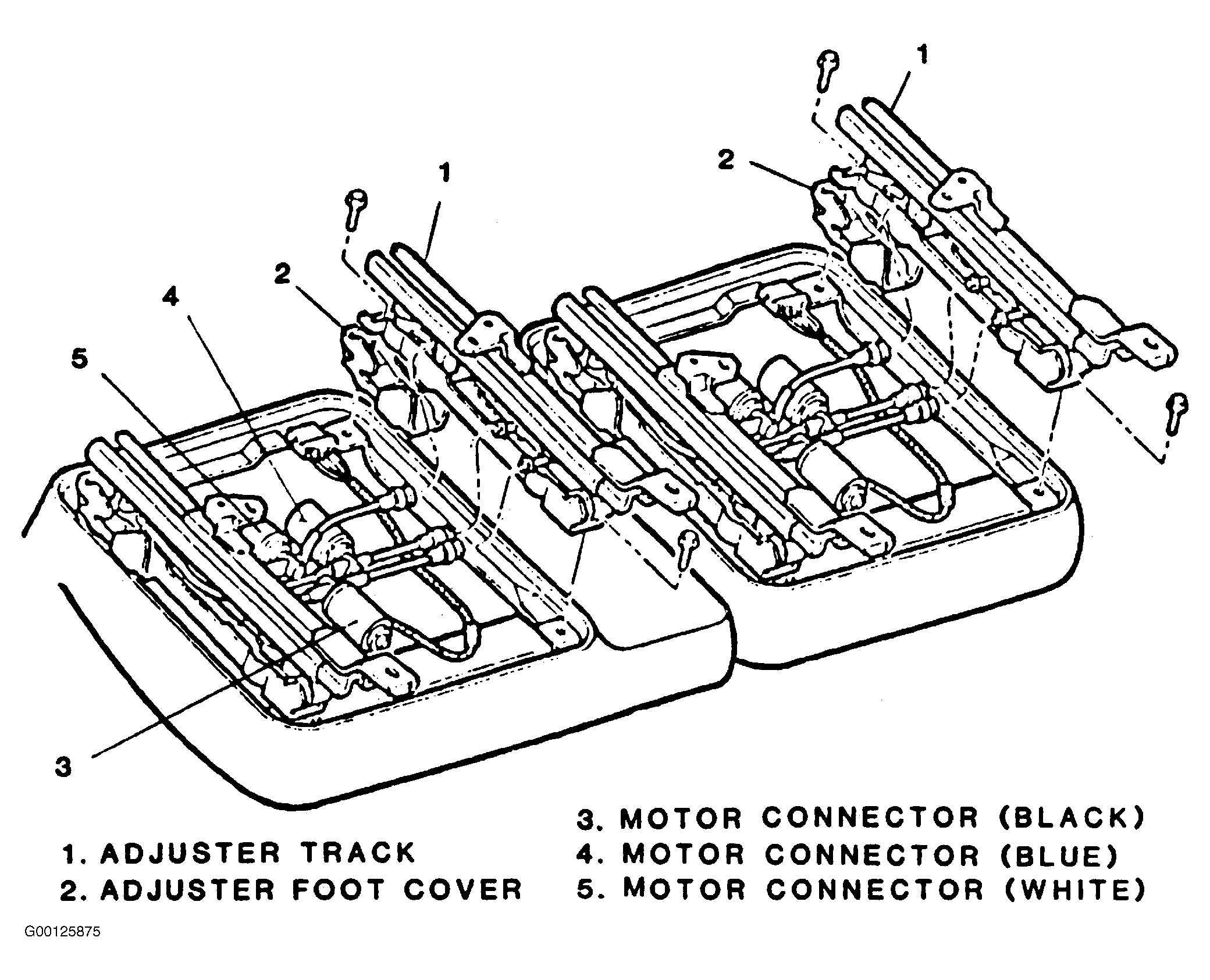

When installing power seat adjusters, check that both adjusters are parallel and in phase with each other. See Figure . In the event the adjusters are out of phase (one adjuster reaches its maximum horizontal or vertical travel in a given direction before the other adjuster), phase adjusters as follows:

1. Operate seat control switch until one adjuster reaches full-forward position.
2. Detach horizontal drive cable from adjuster which has reached full-forward position.
3. Operate seat forward until other adjuster reaches full-forward position; then connect horizontal drive cable and check horizontal travel of seat. The above operation may be repeated on an as-required basis if adjusters do not appear to be in phase after test cycle.
