Wiring Diagrams

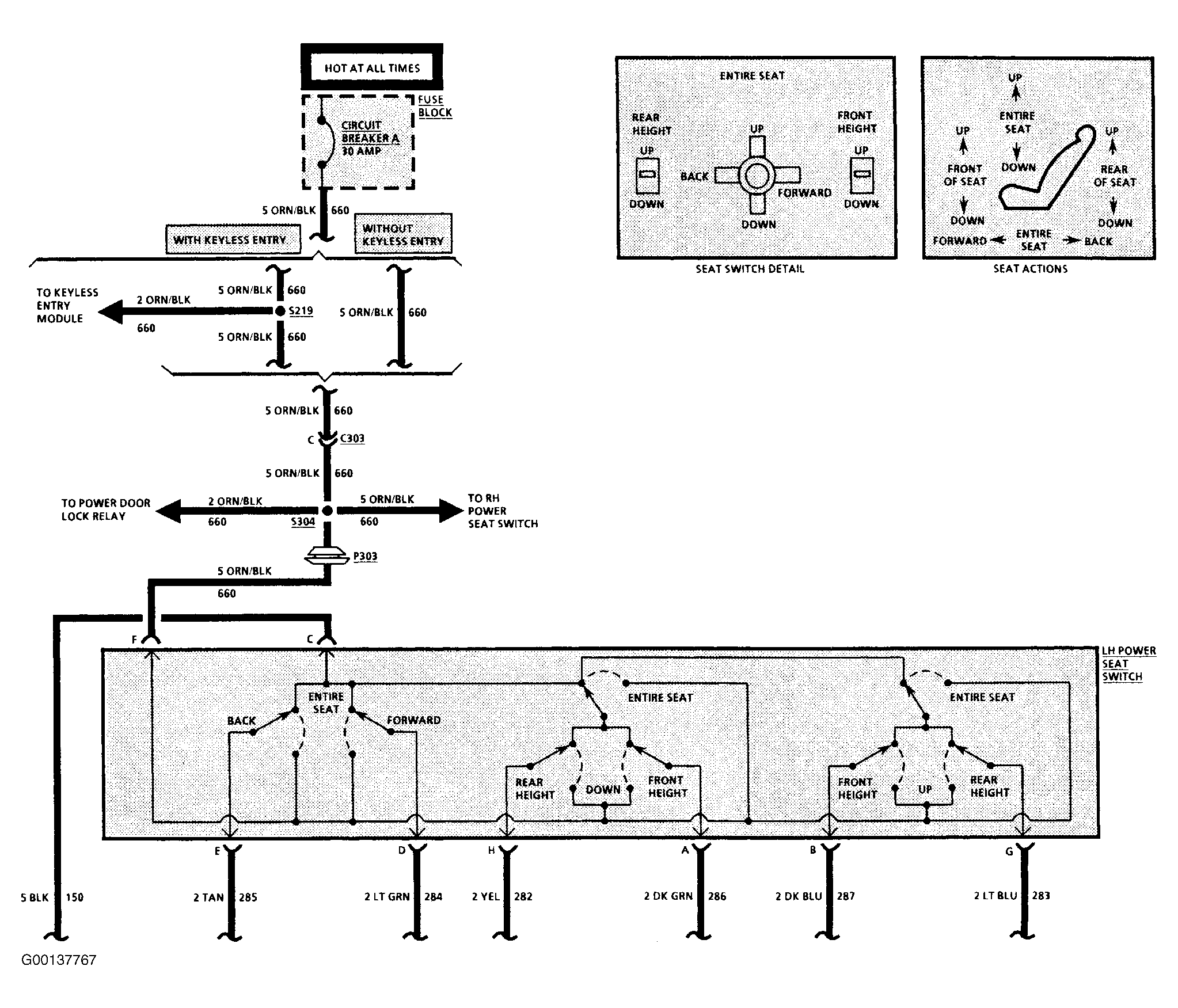

Fig 1: Power Seats Wiring Diagram (1991 Caprice, Custom Cruiser & Roadmaster - Left Side - 1 Of 2)
G00137767Courtesy of GENERAL MOTORS CORP.

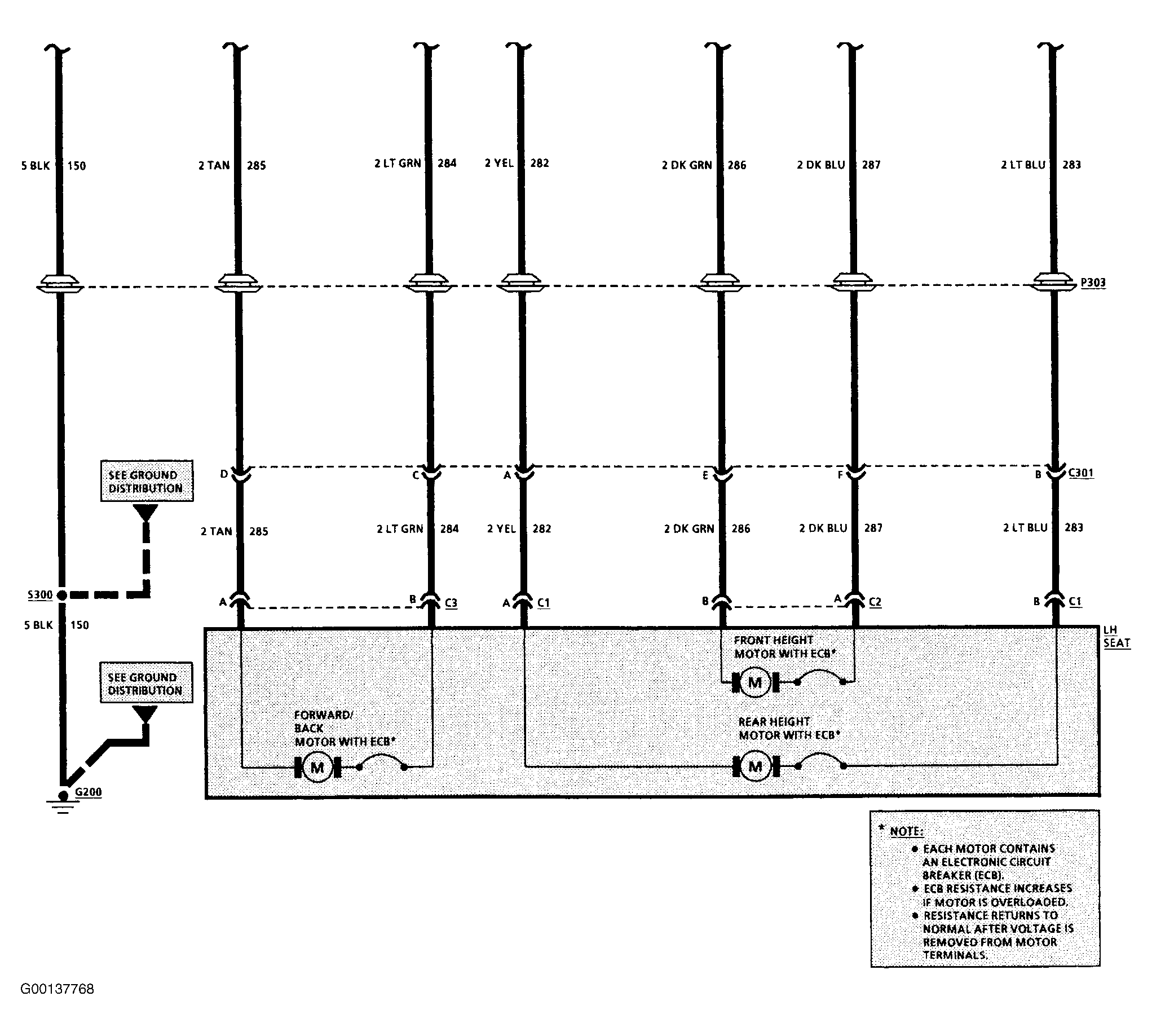

Fig 2: Power Seats Wiring Diagram (1991 Caprice, Custom Cruiser & Roadmaster - Left Side - 2 Of 2)
G00137768Courtesy of GENERAL MOTORS CORP.

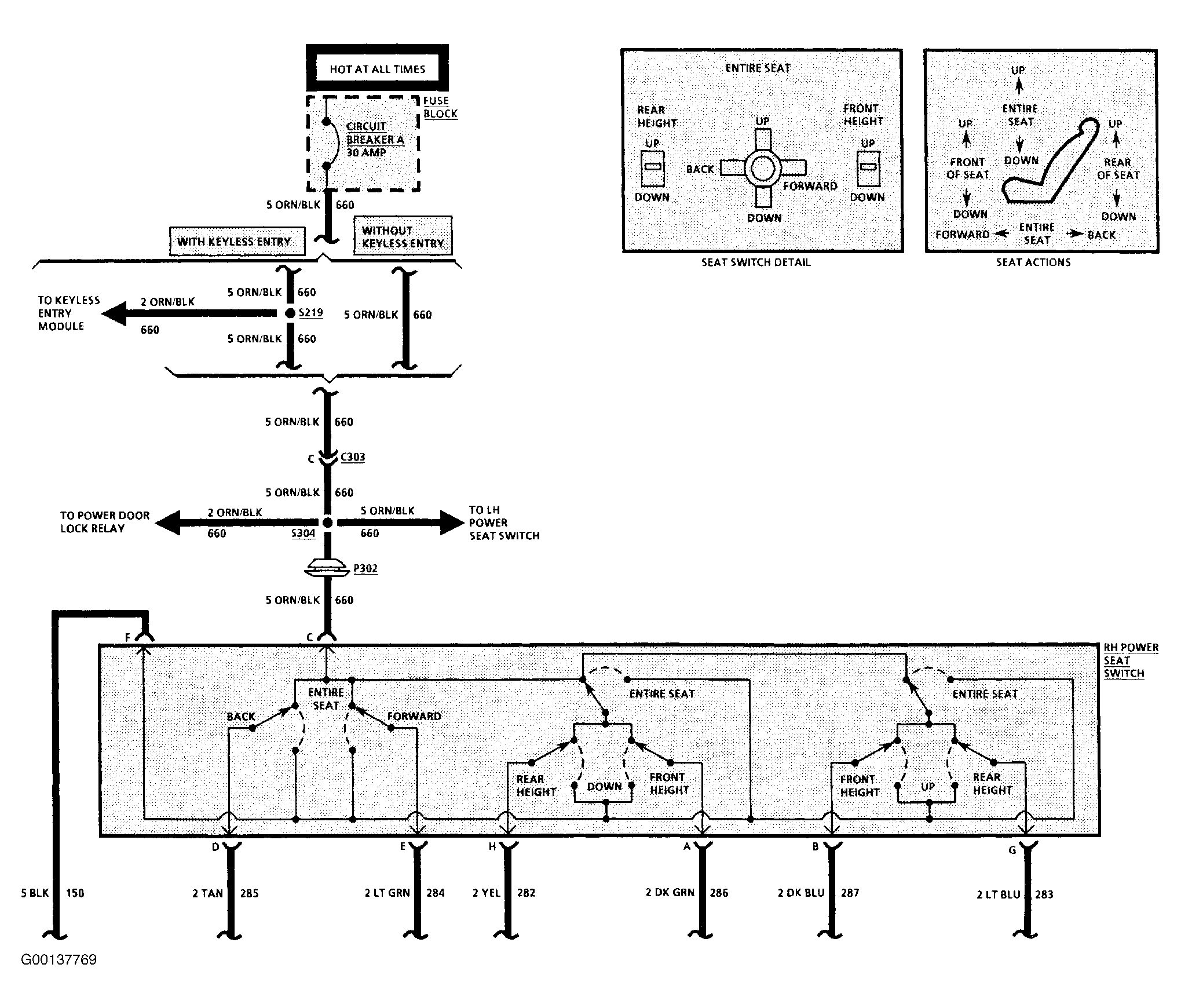

Fig 3: Power Seats Wiring Diagram (1991 Caprice, Custom Cruiser & Roadmaster - Right Side - 1 Of 2)
G00137769Courtesy of GENERAL MOTORS CORP.

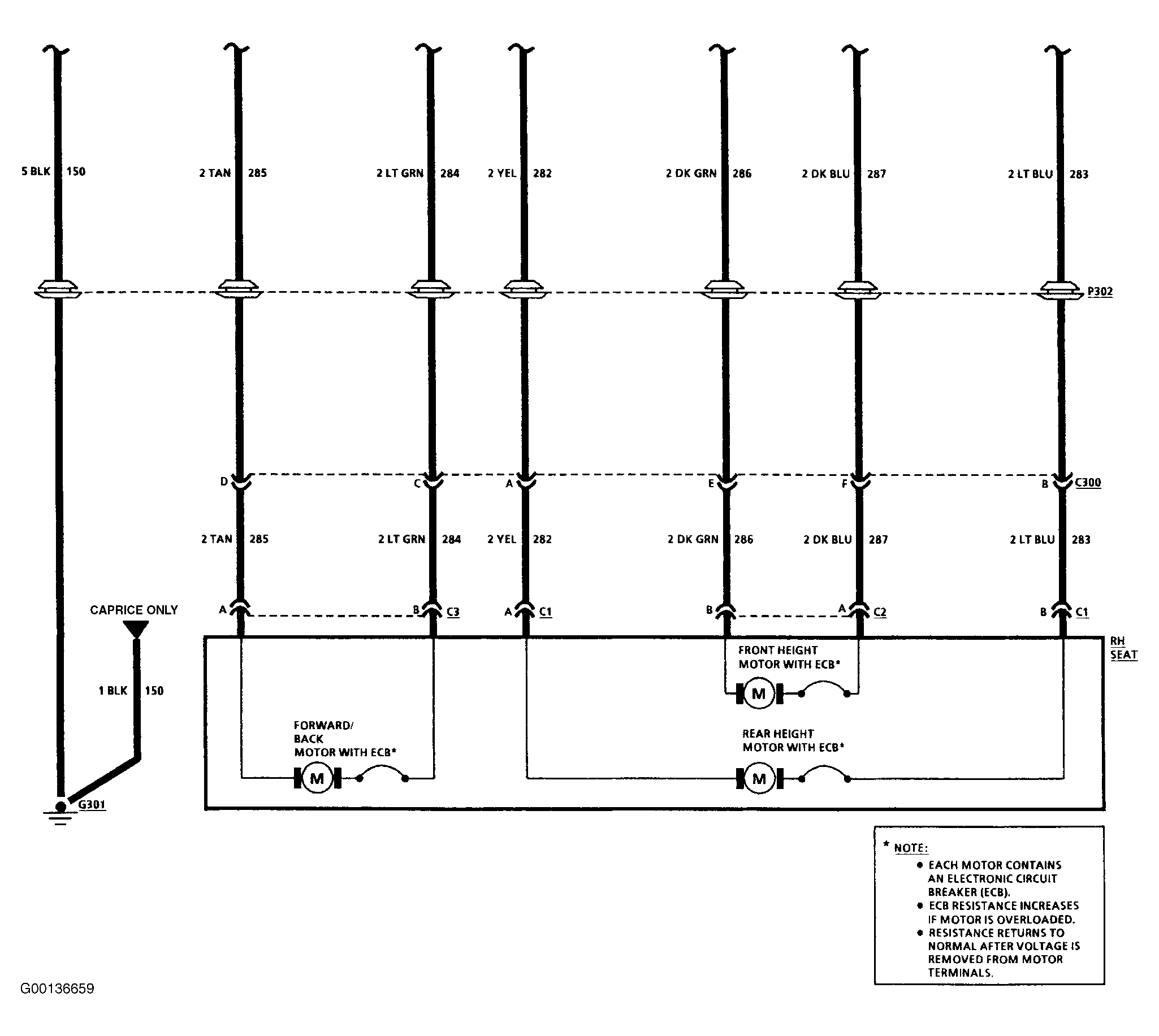

Fig 4: Power Seats Wiring Diagram (1991 Caprice, Custom Cruiser & Roadmaster - Right Side - 2 Of 2)
G00136659Courtesy of GENERAL MOTORS CORP.
