Horizontal Actuator

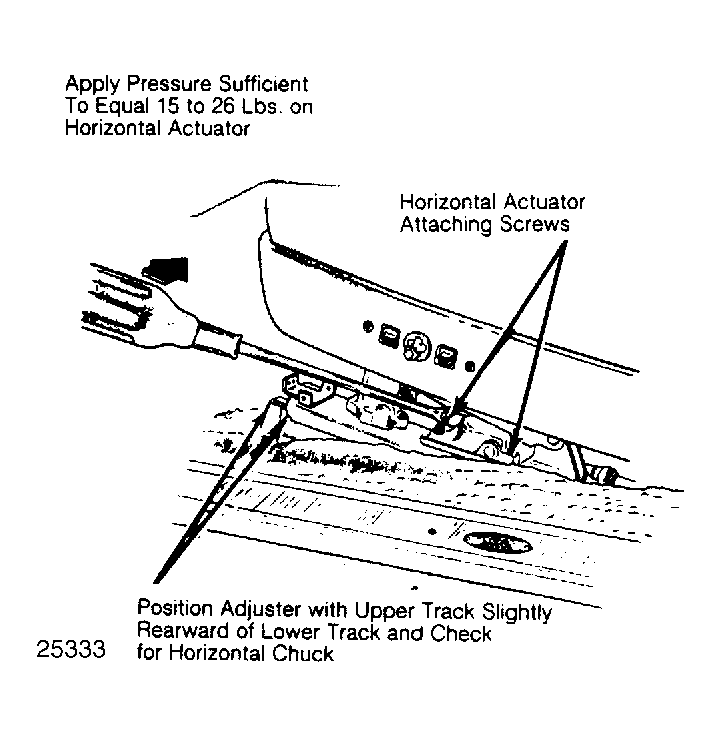

  1. Chucking can be corrected by adjusting the horizontal actuator and pinion gear to full mesh with the lower adjuster lower track rack gear. Operate seat to full up position and about 3/4 forward. Loosen horizontal actuator screws. See Figure .
  2. Using a large screwdriver, press out on horizontal actuator (about 15-25 lbs.) and energize horizontal switch to move seat slightly fore and aft. This helps seat the horizontal actuator pinion gear teeth tight to the lower track rack gear teeth and eliminate free play between gear teeth. Tighten screws while maintaining outward pressure against horizontal actuators.
