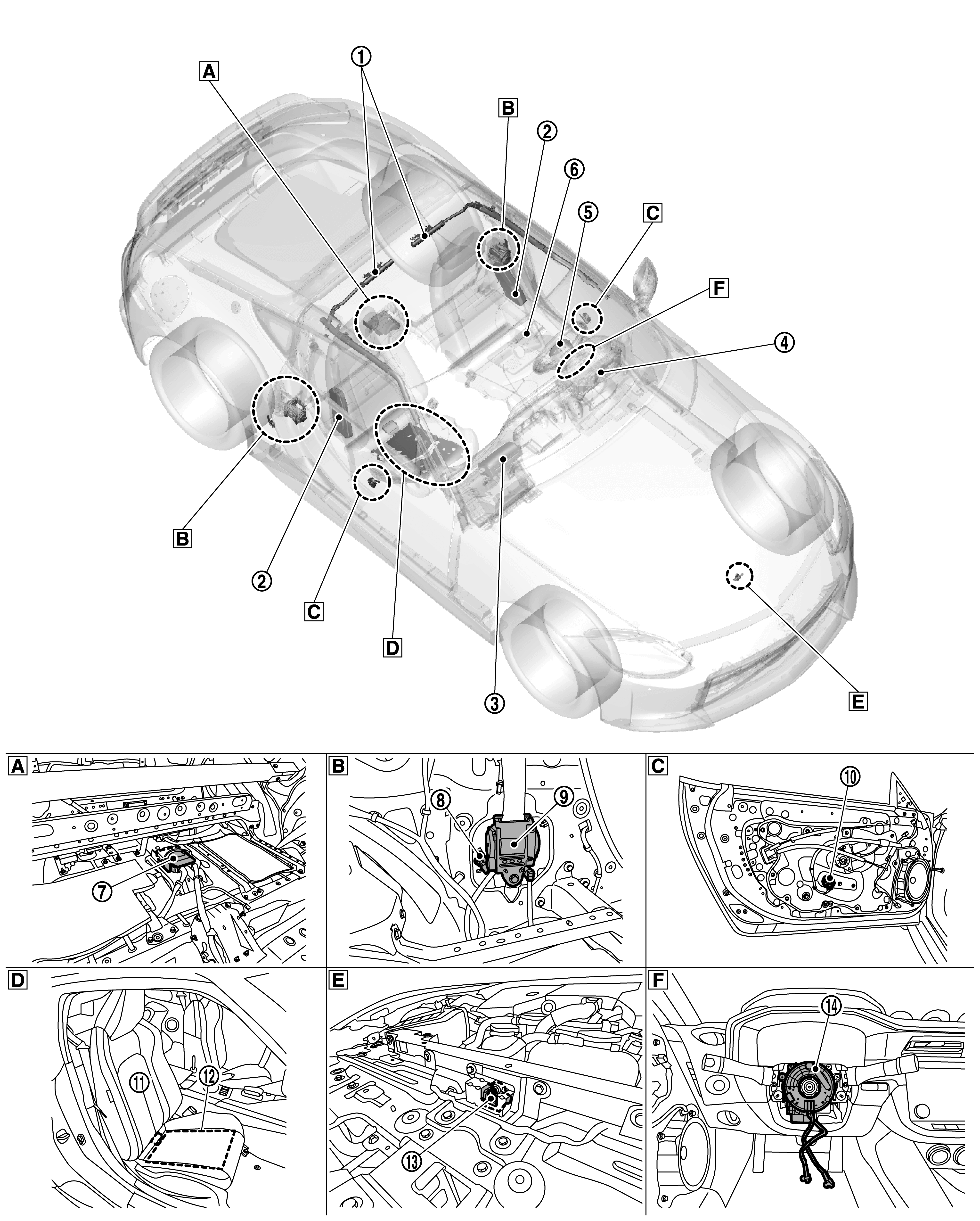

Component Location

GNSDB155849Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Curtain air bag module SYMBOL Front side air bag module SYMBOL Passenger air bag module
SYMBOL Combination meter (SRS air bag warning lamp) SYMBOL Driver air bag module SYMBOL Front passenger air bag OFF indicator
SYMBOL Air bag diagnosis sensor unit SYMBOL B-pillar satellite sensor SYMBOL Front seat belt pretensioner
SYMBOL Front door satellite sensor SYMBOL Occupant classification system control unit SYMBOL Occupant classification system sensor
SYMBOL Crash zone sensor SYMBOL Spiral cable
SYMBOL View with rear parcel shelf finisher removed SYMBOL View with rear side finisher removed SYMBOL View with door finisher removed
SYMBOL Passenger seat SYMBOL View with front bumper cover removed SYMBOL View with steering wheel removed
