Exploded View

REMOVAL

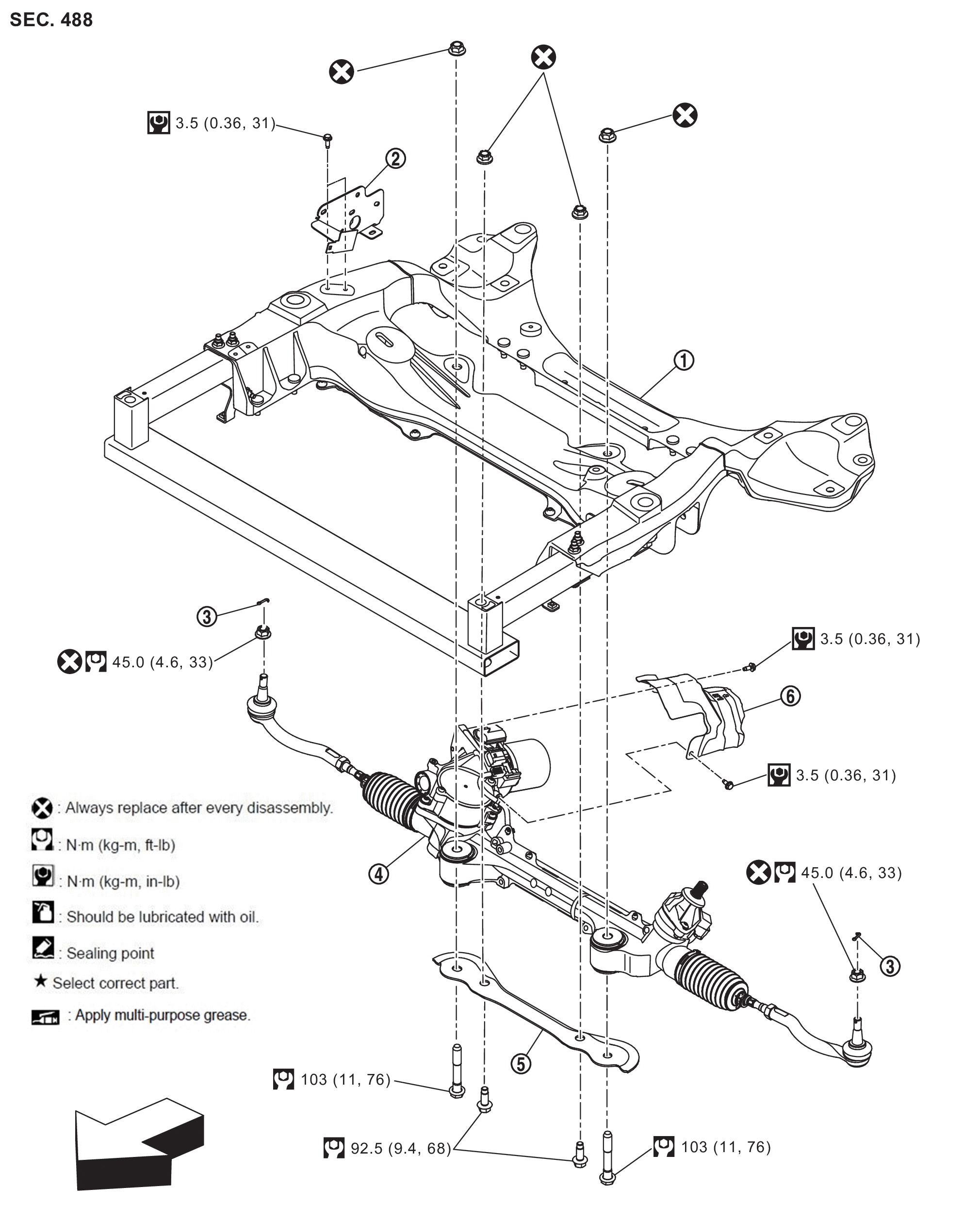

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB155808Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Front suspension member SYMBOL Bracket SYMBOL Cotter pin
SYMBOL Steering gear assembly SYMBOL Rack stay SYMBOL Heat Insulator
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : Always replace after every disassembly.

DISASSEMBLY

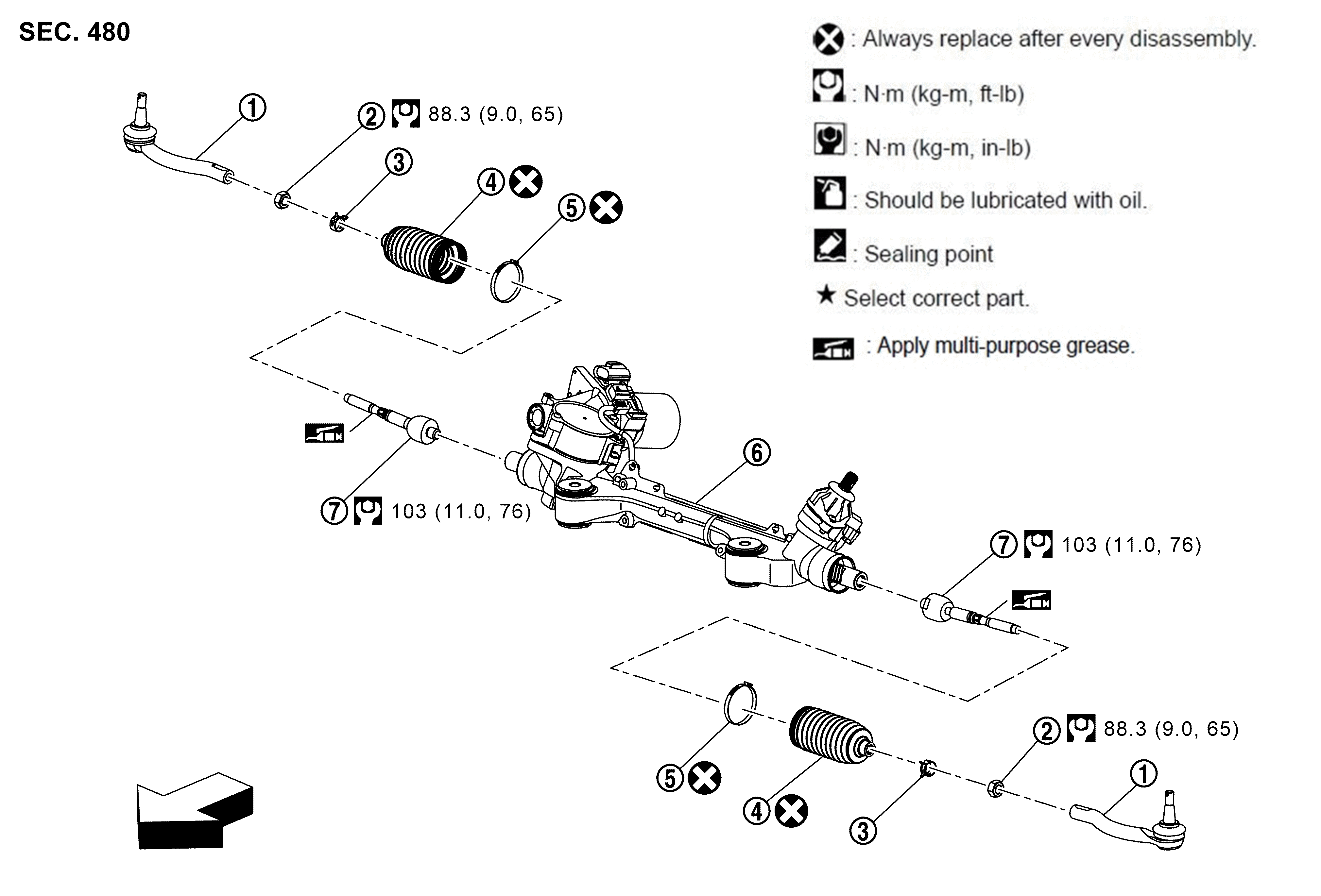

Fig 2: Steering Gear Disassembly With Torque Specifications
GNSDB155632Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Outer socket SYMBOL Outer socket lock nut SYMBOL Boot clamp (small diameter)
SYMBOL Boot SYMBOL Boot clamp (large diameter) SYMBOL Gear housing assembly
SYMBOL Inner socket
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Apply Dow corning 111 or equivalent.
SYMBOL : Always replace after every disassembly.
CAUTION:

Never apply the grease to the surface between steering rack and inner socket screw part.
