Removal and Installation

REMOVAL

1. Remove console finisher assembly. Refer to Removal and Installation .

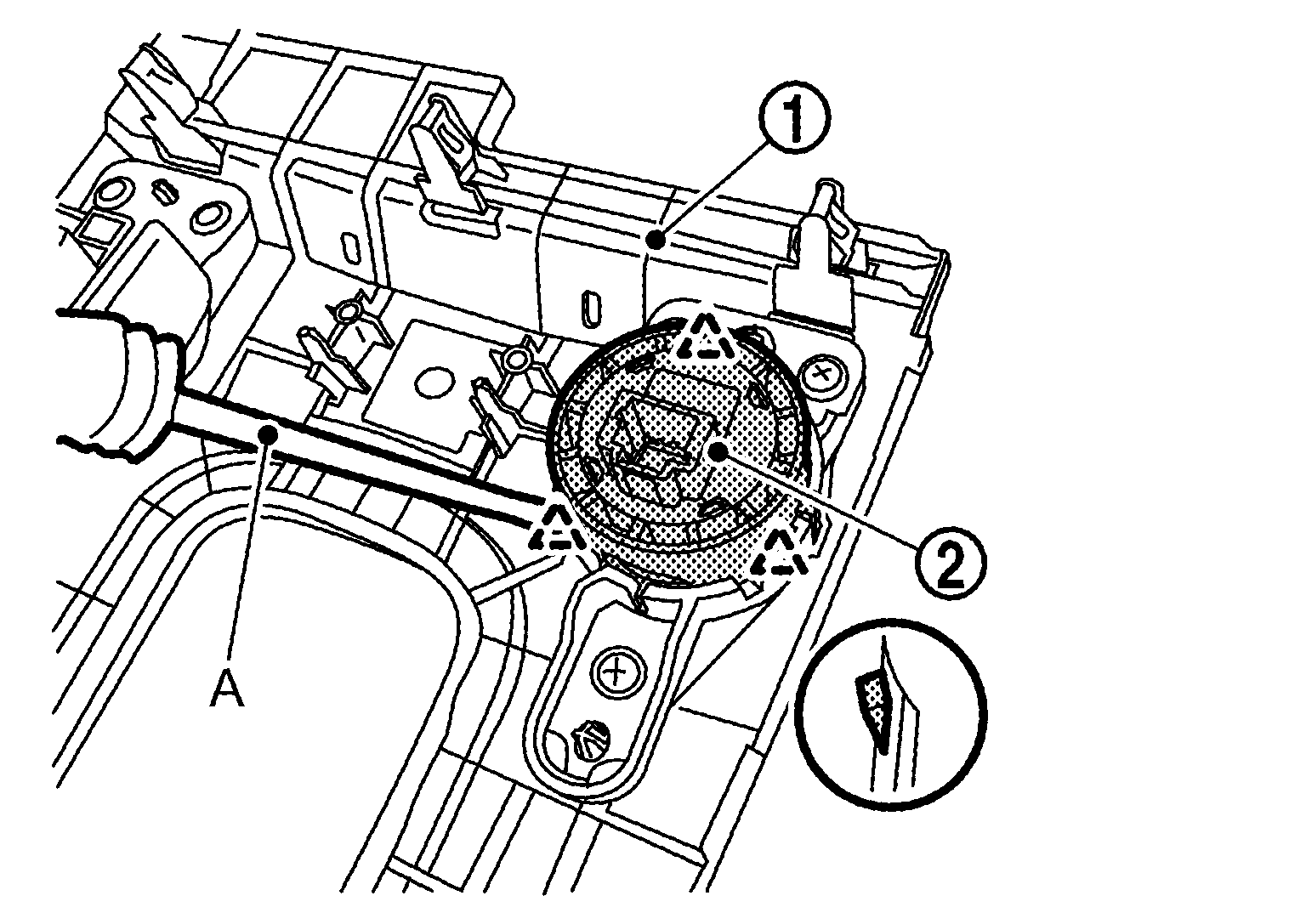

2. Disengage push-button ignition switch fixing pawls remover tool (A) and then remove push-button ignition switch from console finisher assembly .

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Install in the reverse order of removal.
