Steering Column

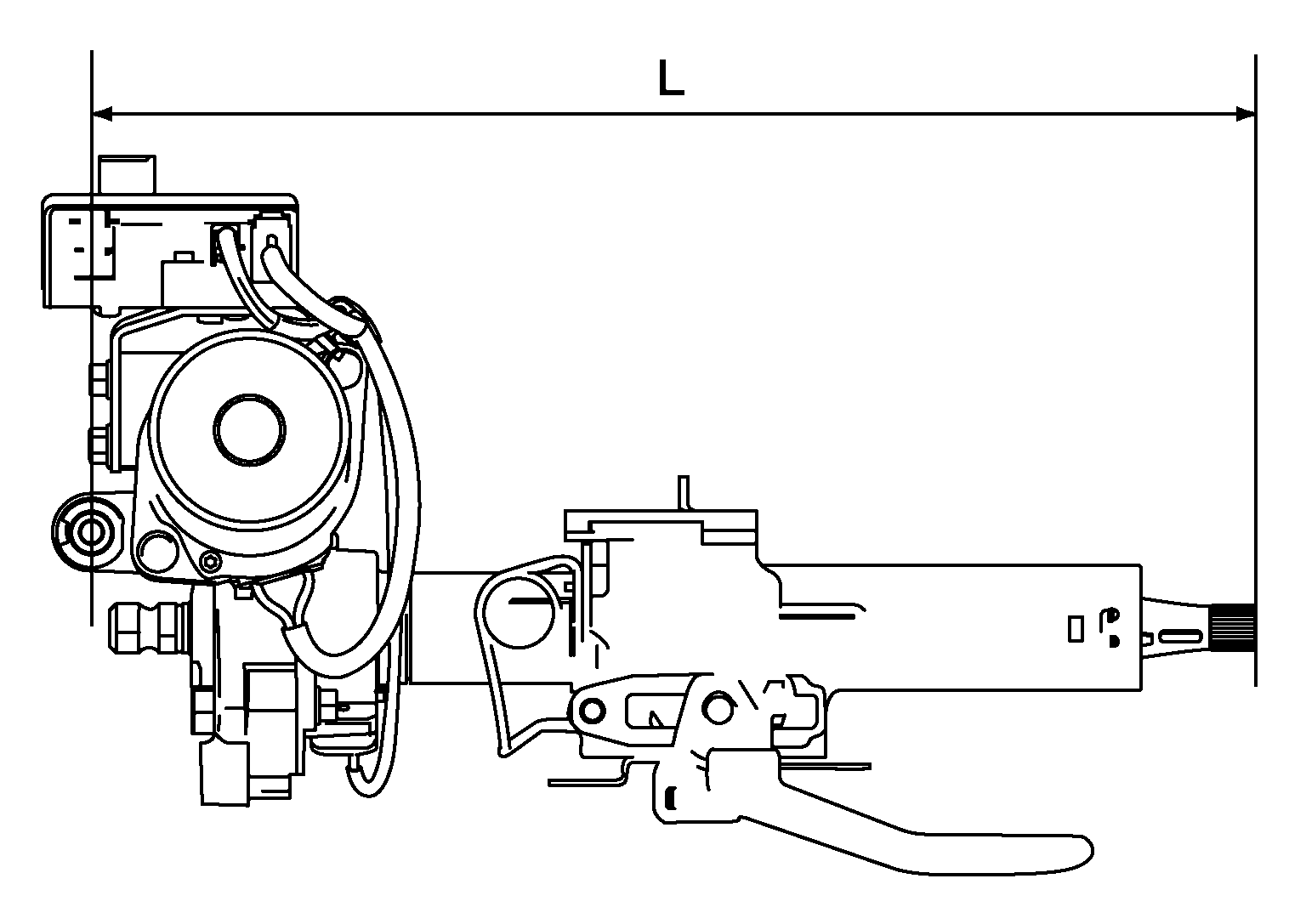

STEERING COLUMN LENGTH
Unit: mm (in)
 Courtesy of NISSAN
|
|
| Steering column length |
Length (L) |
440 (17.32) |
| Telescopic maximum |
460 (18.11) |
| Telescopic minimum |
420 (16.54) |

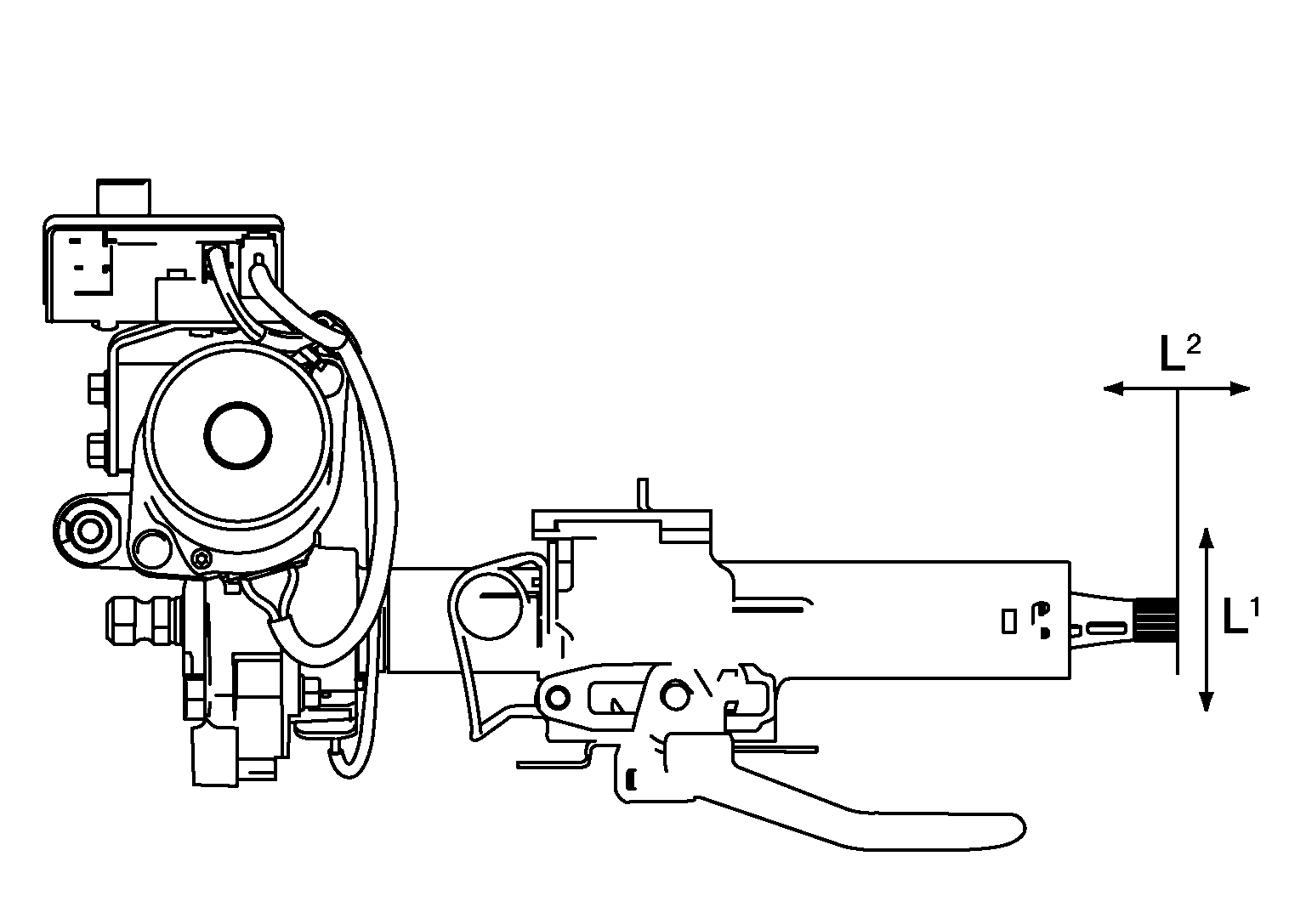

TILT MECHANISM OPERATING RANGE
Unit: mm (in)
 Courtesy of NISSAN
|
|
| Tilt operating range (L1) |
40 (1.57) |
| Telescopic operating range (L2) |
40 (1.57) |
