Exploded View

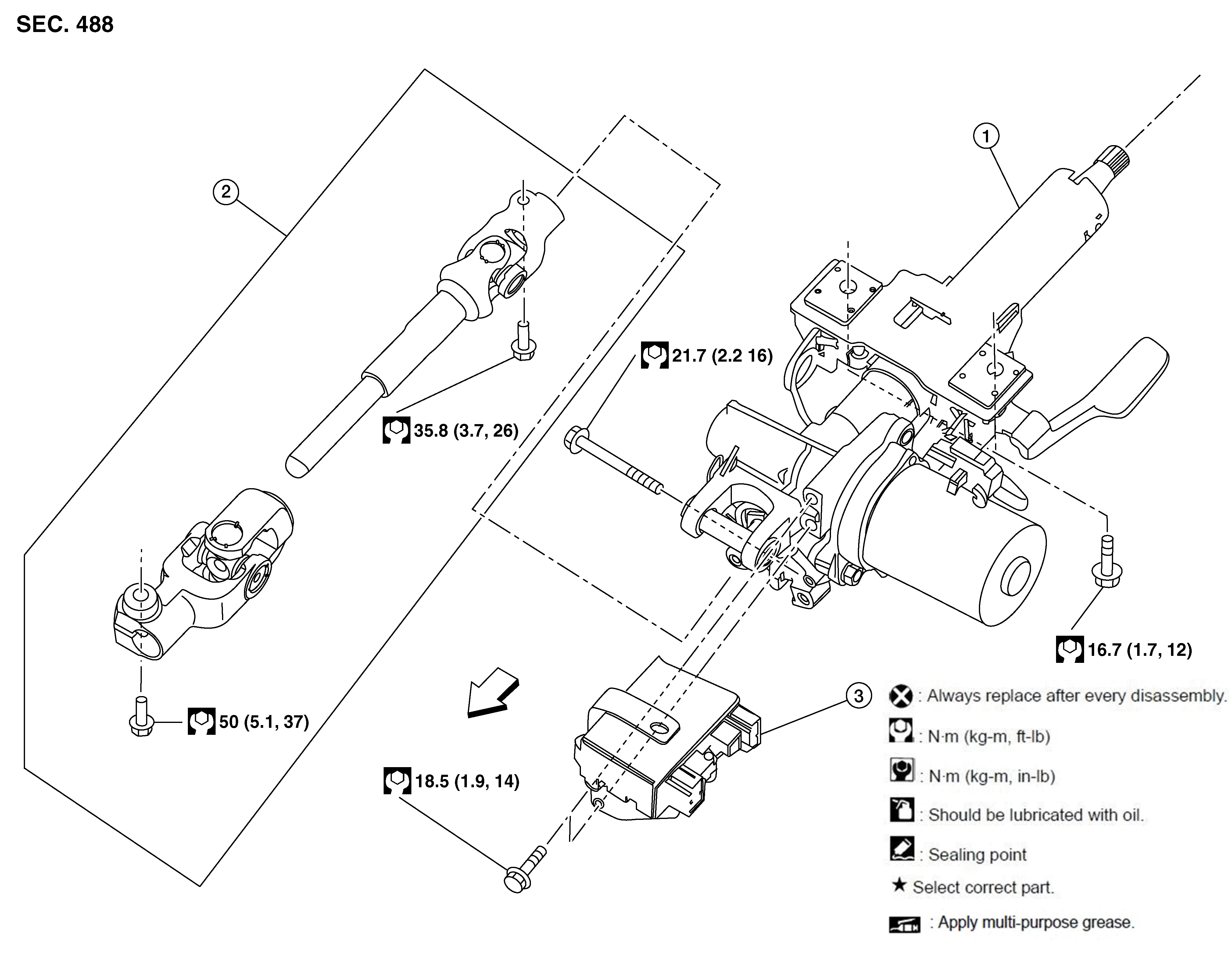

Fig 1: Steering Column With Torque Specifications

GNSDB52286

Courtesy of NISSAN

1.	Steering column	2.	Lower joint	3.	EPS control unit
	Front
