System Description - Without Idle Start/Stop System

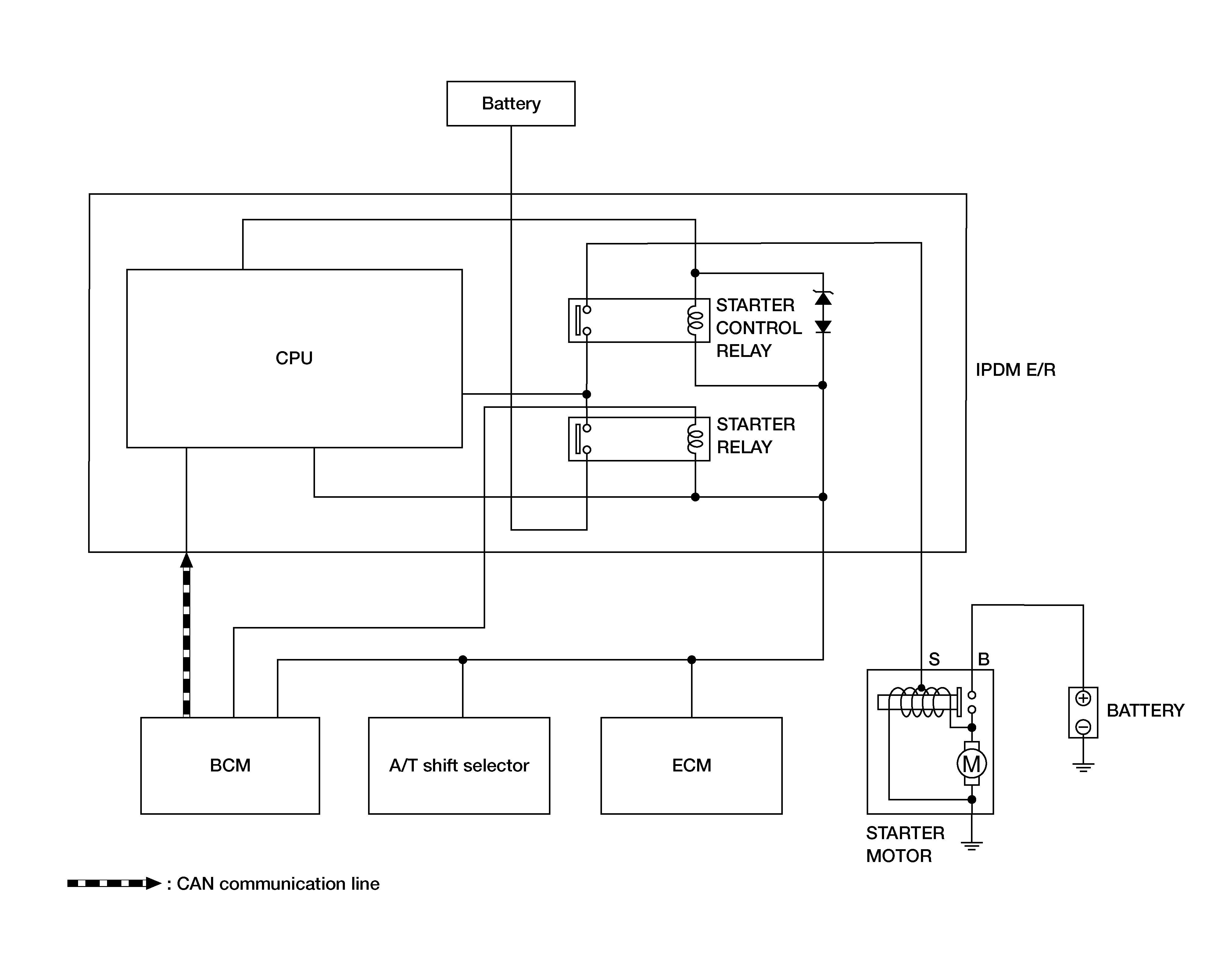

SYSTEM DIAGRAM

Courtesy of NISSAN

System Description

The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.
