Component Location

2WD models

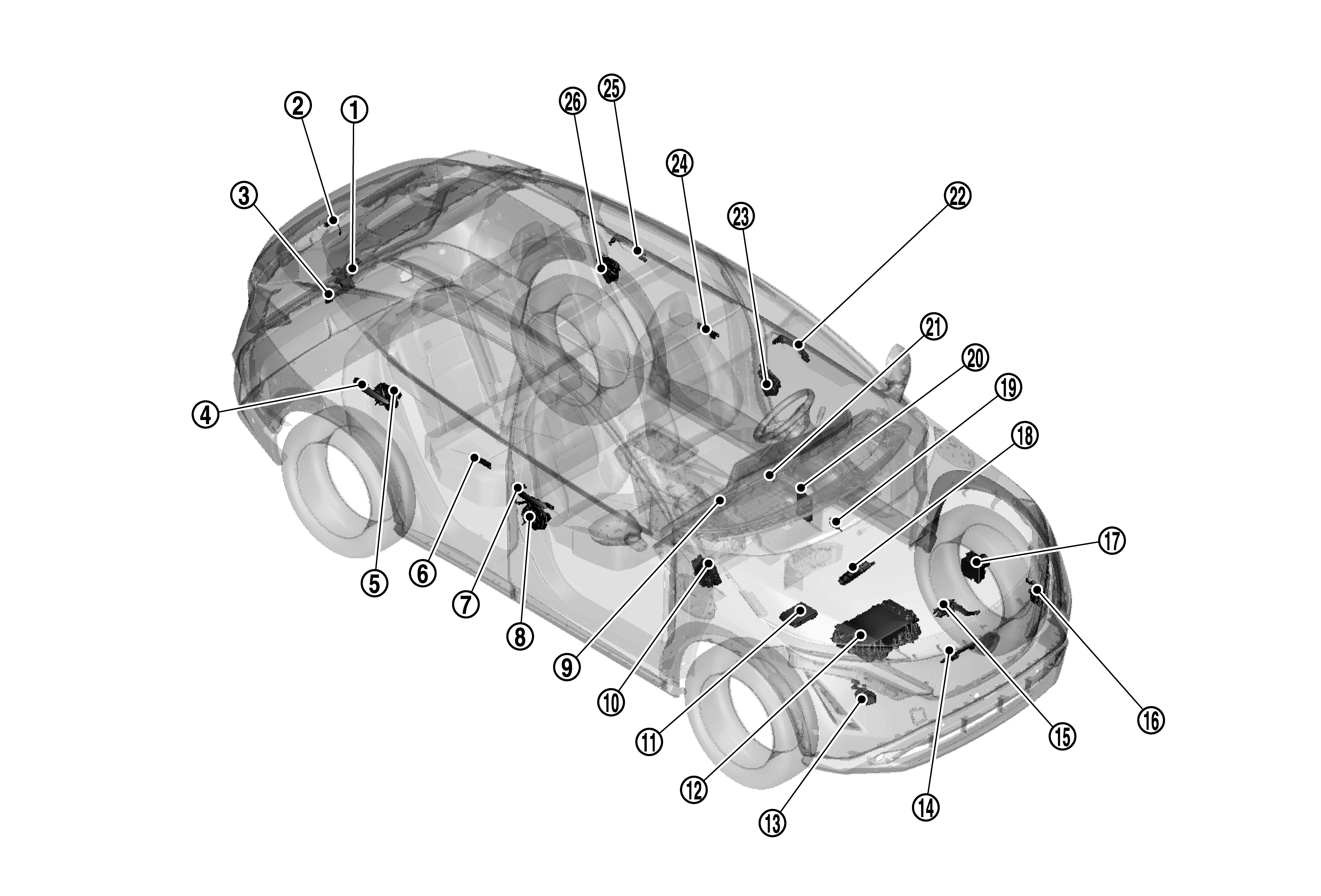

GNSDB153514Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Back door lock assembly (back door switch) SYMBOL Back door opener switch assembly (door request switch) SYMBOL Outside key antenna (rear bumper)
SYMBOL One touch sensor (rear RH) SYMBOL Rear door lock assembly RH SYMBOL Outside key antenna (rear door RH)
SYMBOL One touch sensor (front RH) SYMBOL Front door lock assembly (passenger side) SYMBOL Intelligent Key unit. Refer to Component Location .
SYMBOL BCM. Refer to Component Location . SYMBOL IPDM E/R. Refer to Component Location . SYMBOL Inverter (front). Refer to Component Location .
SYMBOL Horn low SYMBOL Outside key antenna (front bumper) SYMBOL Hood switch
SYMBOL Horn high SYMBOL ABS actuator and electric unit (control unit). Refer to Component Location . SYMBOL VCM. Refer to Component Location .
SYMBOL Stop lamp switch SYMBOL TCU. Refer to Component Location . SYMBOL Power switch
SYMBOL One touch sensor (front LH) SYMBOL Front door lock assembly (driver side) SYMBOL Outside key antenna (rear door LH)
SYMBOL One touch sensor (rear LH) SYMBOL Rear door lock assembly LH

AWD models

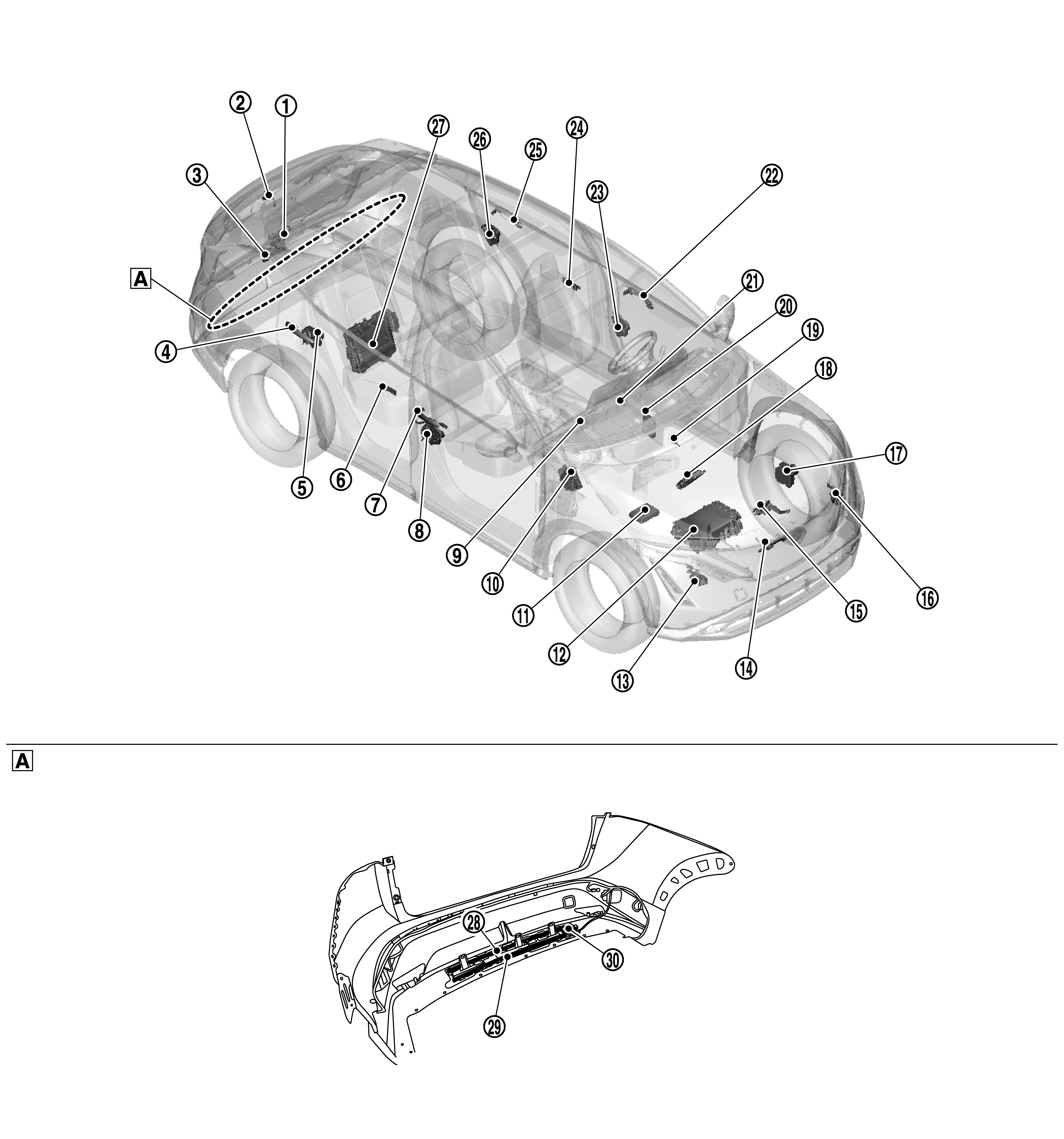

GNSDB153395Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Back door lock assembly (back door switch) SYMBOL Back door opener switch assembly (door request switch) SYMBOL Outside key antenna (rear bumper)
SYMBOL One touch sensor (rear RH) SYMBOL Rear door lock assembly RH SYMBOL Outside key antenna (rear door RH)
SYMBOL One touch sensor (front RH) SYMBOL Front door lock assembly (passenger side) SYMBOL Intelligent Key unit. Refer to Component Location .
SYMBOL BCM. Refer to Component Location . SYMBOL IPDM E/R. Refer to Component Location . SYMBOL Inverter (front). Refer to Component Location .
SYMBOL Horn low SYMBOL Outside key antenna (front bumper) SYMBOL Hood switch
SYMBOL Horn high SYMBOL ABS actuator and electric unit (control unit). Refer to Component Location . SYMBOL VCM. Refer to Component Location .
SYMBOL Stop lamp switch SYMBOL TCU. Refer to Component Location . SYMBOL Power switch
SYMBOL One touch sensor (front LH) SYMBOL Front door lock assembly (driver side) SYMBOL Outside key antenna (rear door LH)
SYMBOL One touch sensor (rear LH) SYMBOL Rear door lock assembly LH SYMBOL Inverter (rear). Refer to Component Location .
SYMBOL Hands free sensor (upper) SYMBOL Hands free sensor (lower) SYMBOL Hands free sensor control unit
SYMBOL View with back side of rear bumper fascia assembly
