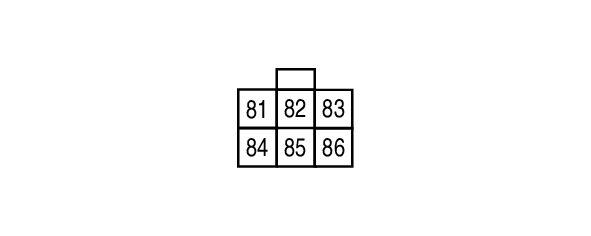

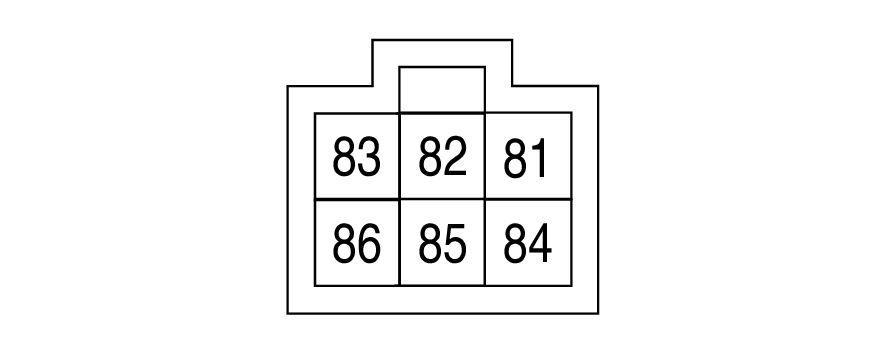

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (F97)
Connector Types:
YLA06FGY
Connector Color:
GRAY
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 81 |
Y |
FL ECM USM SUPPLY |
| 82 |
- |
- |
| 83 |
R |
STARTER |
| 84 |
- |
- |
| 85 |
- |
- |
| 86 |
L |
FL STARTER |
