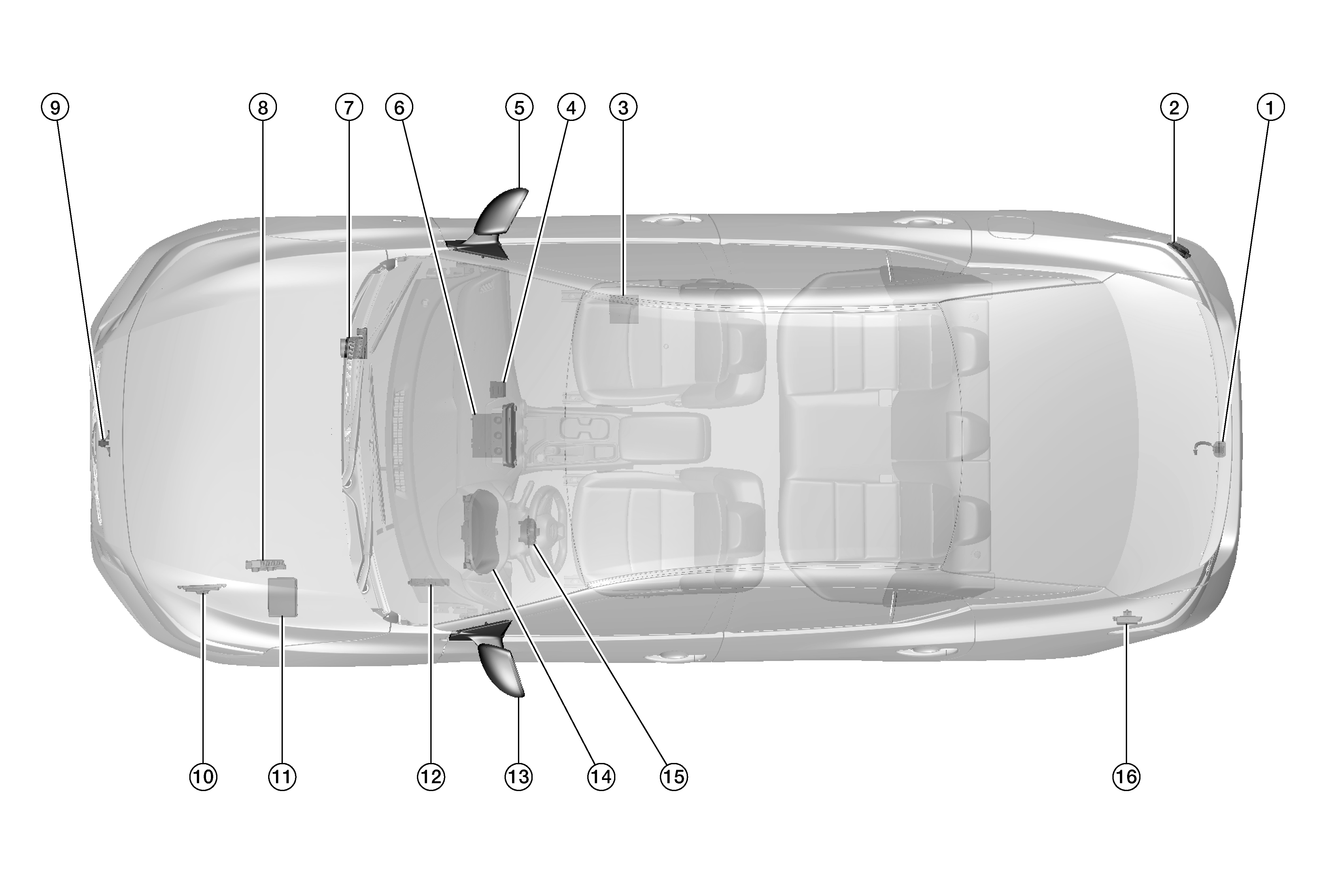

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Rear camera	Refer to Rear Camera .
2.	Side radar RH	Provides around view monitor control unit with right and left alert signal via CAN communication. Refer to Component Location for detailed component location.
3.	Around view monitor control unit	Refer to Around View Monitor Control Unit .
4.	ADAS (Advanced Driver Assistance Systems) control unit	Provides around view monitor control unit with alert 1 and 2 signal via CAN communication. Refer to Component Location for detailed component location.
5.	Door mirror RH (side camera)	Refer to Side Cameras .
6.	AV control unit	Refer to AV Control Unit .
7.	ABS (Anti-lock Braking System) actuator and electric unit (control unit)	Provides around view monitor control unit with vehicle speed signal via CAN communication. Refer to Component Location for detailed component location.
8.	ECM (Engine Control Module)	Provides around view monitor control unit with pedal failure signal via CAN communication. Refer to Component Location for detailed component location.
9.	Front camera	Refer to Front Camera .
10.	TCM (Transmission Control Module) (with CVT models)	Provides around view monitor control unit with transmission range sensor signal via CAN communication. Refer to Component Location for detailed component location.
11.	IPDM E/R (Intelligent Power Distribution Module Engine Room)	Provides around view monitor control unit with ignition supply signal via CAN communication. Refer to Component Location for detailed component location.
12.	BCM (Body Control Module)	Provides around view monitor control unit with door switch state signal via CAN communication.
13.	Door mirror LH (side camera)	Refer to Side Cameras .
