Electric Intake Valve Timing Control Position Sensor Connector End View (F87)

Connector Types:  RH03FB

Connector Color:  BLACK

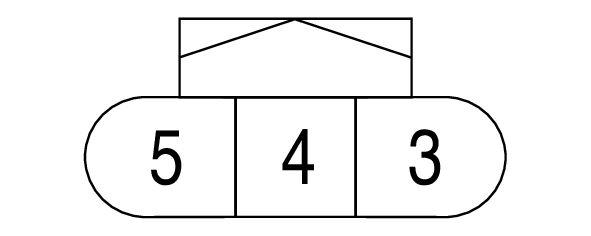

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

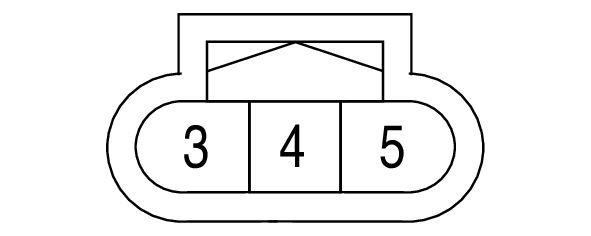

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
3	L	SENSOR GROUND
4	Y	ELECTRIC INTAKE VALVE TIMING CONTROL POSITION SENSOR
5	G	SENSOR POWER SUPPLY
