System Control Condition Display

Quickly push (less than 1.5 seconds) and release the MAIN switch ON.

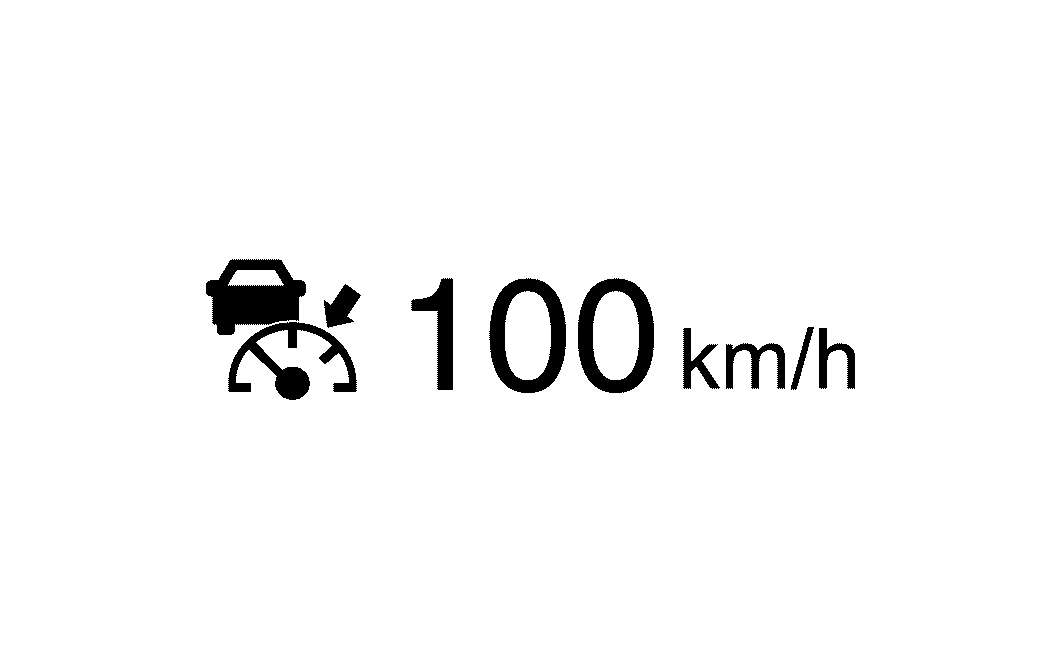

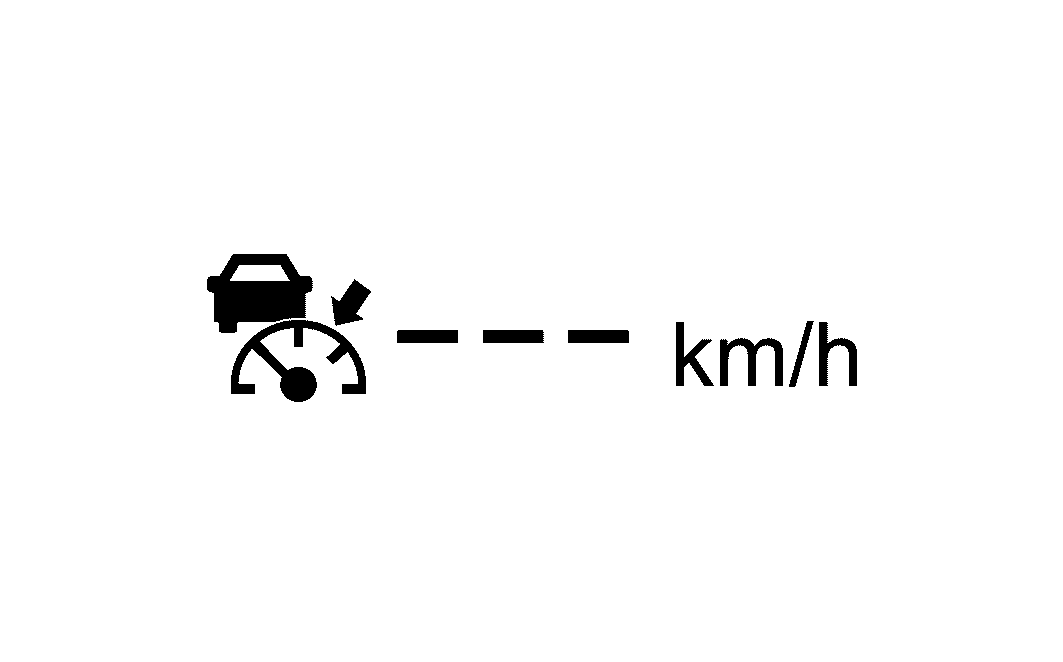

The MAIN switch indicator (cruise indicator), set distance indicator, own vehicle indicator, and set vehicle speed indicator come on and ICC system is set to a standby state.

Condition			Display on combination meter
Condition			Left part	Right part
Standby mode			White Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Gray Set distance indicator : Gray Courtesy of NISSAN NORTH AMERICA, INC.
Control mode	Without a vehicle ahead	Set vehicle distance (Long)	Green Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	Green Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Short)	Green Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.

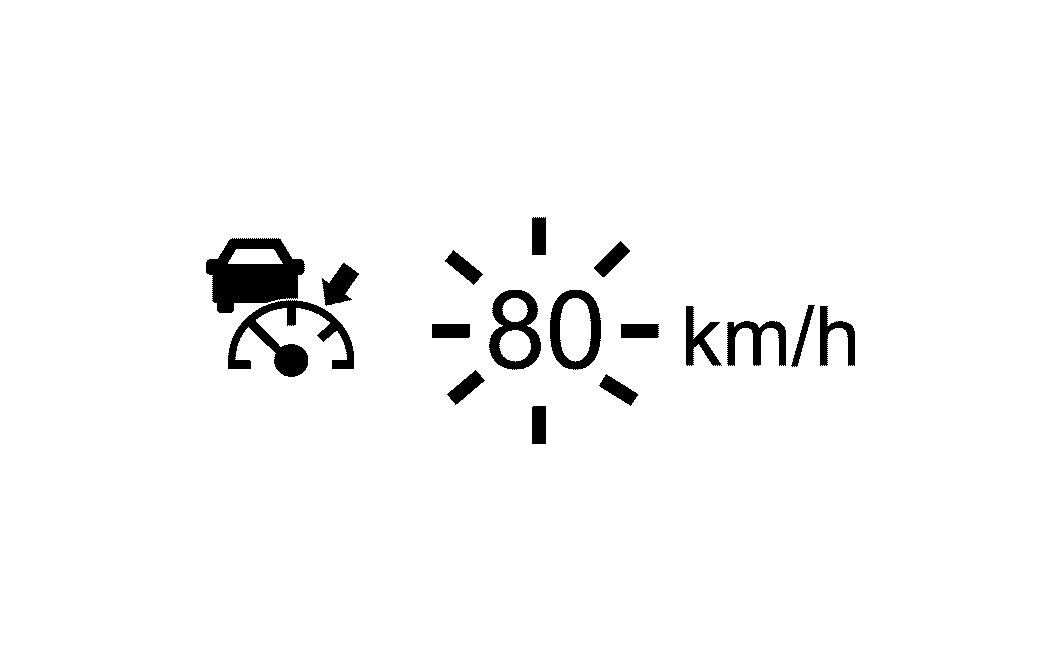

		When the vehicle speed exceeds the set speed	Green Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Green (Blink) Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.
Control mode	With a vehicle ahead	Set vehicle distance (Long)	Green Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	Green Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Short)	Green Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.
		When the vehicle speed exceeds the set speed	Green Courtesy of NISSAN NORTH AMERICA, INC.	Speed control indicator/warning : Green (Blink) Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.
