SRS Component Location

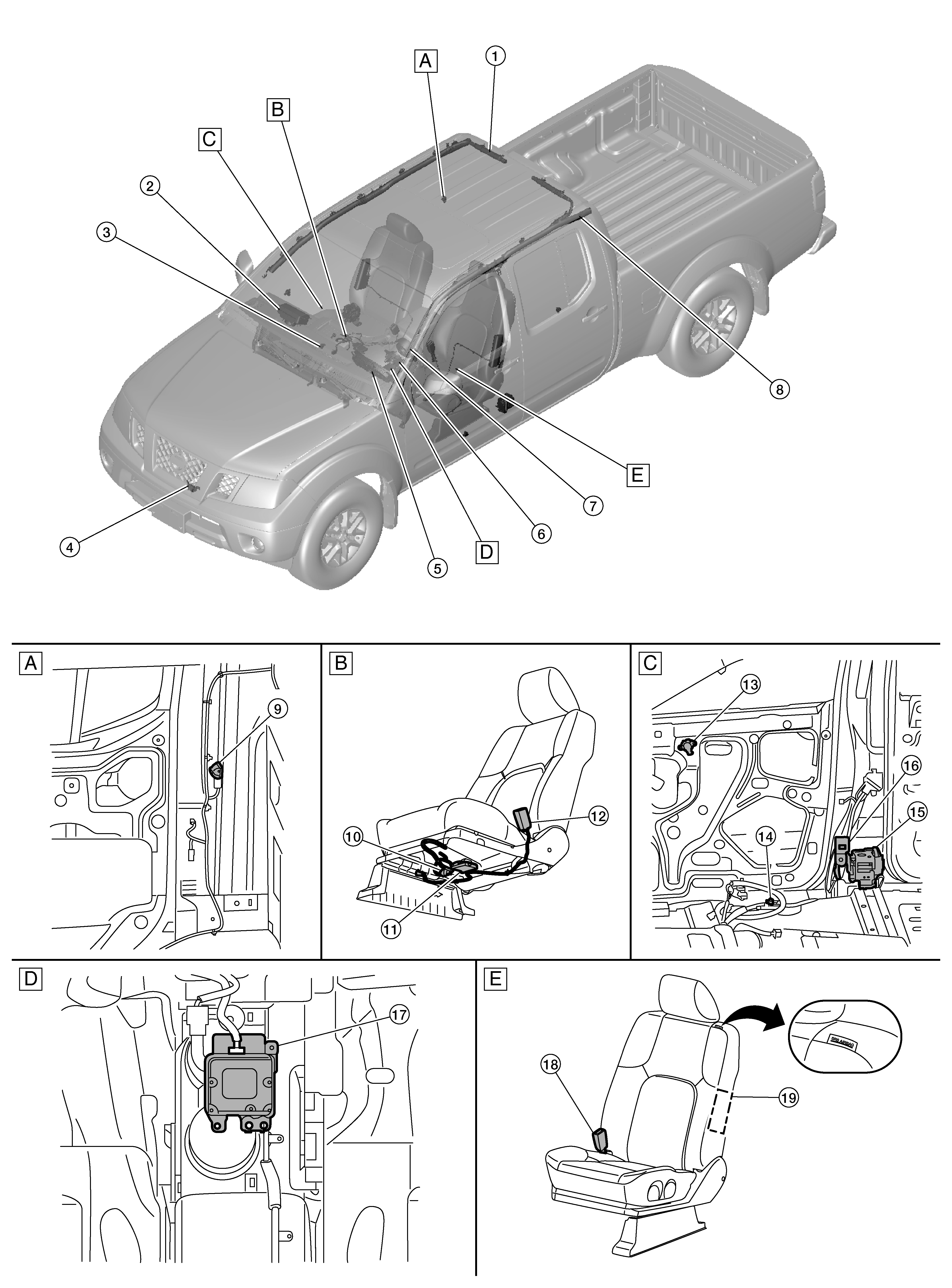

Courtesy of NISSAN NORTH AMERICA, INC.

A.	Right of rear passenger seat (view with RH rear lower finisher removed)	B.	Passenger seat	C.	Right of passenger seat
D.	Between driver and passenger seat (view with center console removed)	E.	Driver seat

No.	Component	Function
1.	RH side curtain air bag module	Refer to Side Curtain Air Bag Module .
2.	Front passenger air bag module	Refer to Front Passenger Air Bag Module .
3.	Front passenger air bag off indicator	Refer to Front Passenger Air Bag Off Indicator .
4.	Crash zone sensor	Refer to Crash Zone Sensor .
5.	Combination meter	Indicates air bag malfunction and deployment by blinking and illuminating air bag warning lamp.
6.	Combination switch (Spiral cable)	The spiral cable provides a rotating physical connection to the driver air bag module.
7.	Driver air bag module	Refer to Driver Air Bag Module .
8.	LH side curtain air bag module	Refer to Side Curtain Air Bag Module .
9.	Rear side air bag satellite sensor RH (LH similar)	Refer to Side Air Bag Satellite Sensor .
10.	Occupant classification system sensor	Refer to System Description .
11.	Occupant classification system control unit	Refer to System Description .
12.	Seat belt buckle switch RH	The seat belt buckle switch provides the seat belt buckle signal to the driver air bag diagnosis sensor unit and the combination meter.
13.	Front door satellite sensor RH (LH similar)	Refer to Front Door Satellite Sensor .
14.	RH side air bag satellite sensor (LH similar)	Refer to Side Air Bag Satellite Sensor .
15.	Front RH seat belt pre-tensioner (LH similar)	Refer to Front Seat Belt Pre-tensioner .
16.	Belt tension sensor	Refer to System Description .
17.	Air bag diagnosis sensor unit	Refer to Air Bag Diagnosis Sensor Unit .
18.	Seat belt buckle switch LH	The seat belt buckle switch provides the seat belt buckle signal to the driver air bag diagnosis sensor unit and the combination meter.
19.	Front RH side air bag module (LH similar)	Refer to Front Side Air Bag Module .
