Steering Column

Check each part of steering column for damage or other malfunctions. Replace entire steering column if any parts are damaged.

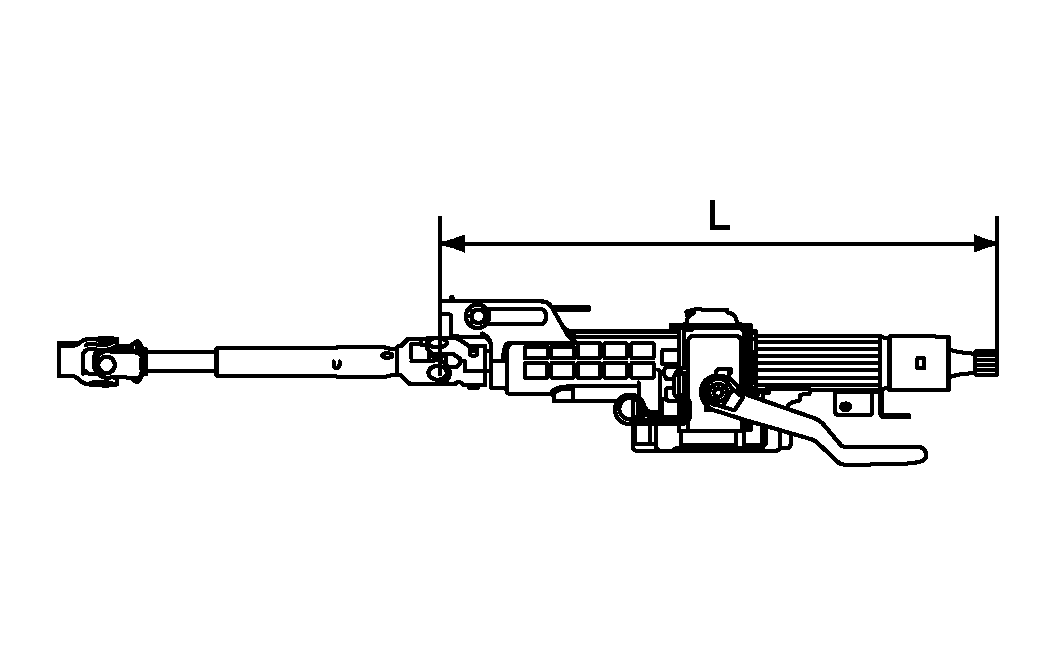

Measure the length (L) as shown below, if vehicle has been involved in a minor collision. Replace steering column if outside the specifications.

Courtesy of NISSAN NORTH AMERICA, INC.

Steering column length (L)

Measure steering column rotating torque using suitable tool. Replace steering column if outside the specification.

Rotating torque

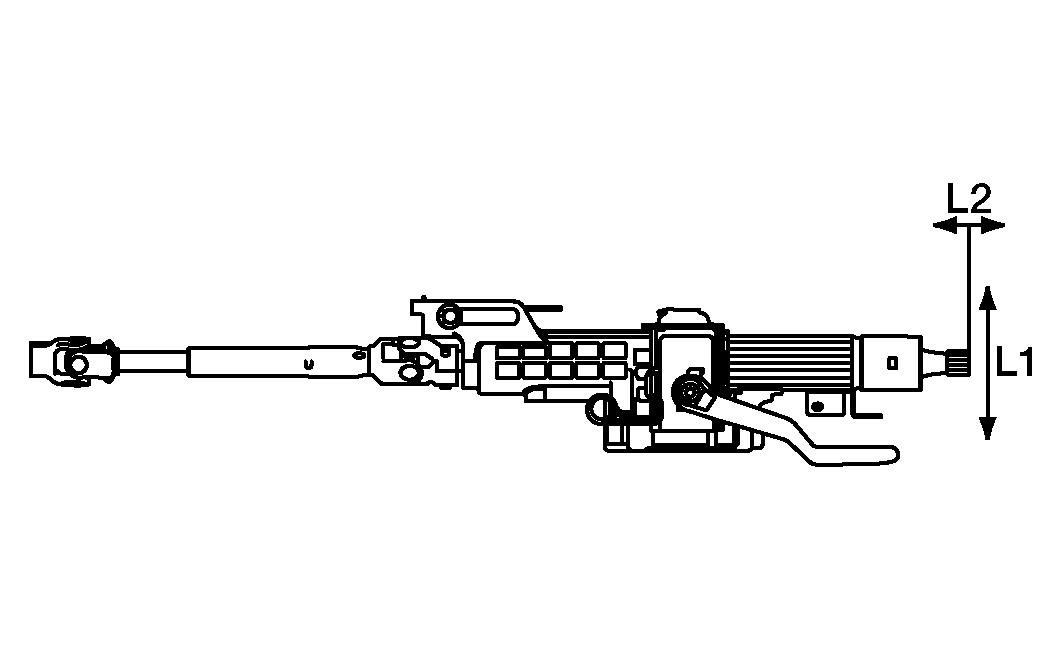

Check tilt and telescopic mechanism operating range (L ¹ ), (L ² ) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

Tilt operating range (L ¹ )	Refer to STEERING COLUMN : Service Data .
Telescopic operating range (L ² )	Refer to STEERING COLUMN : Service Data .
