Work Procedure: Description
WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

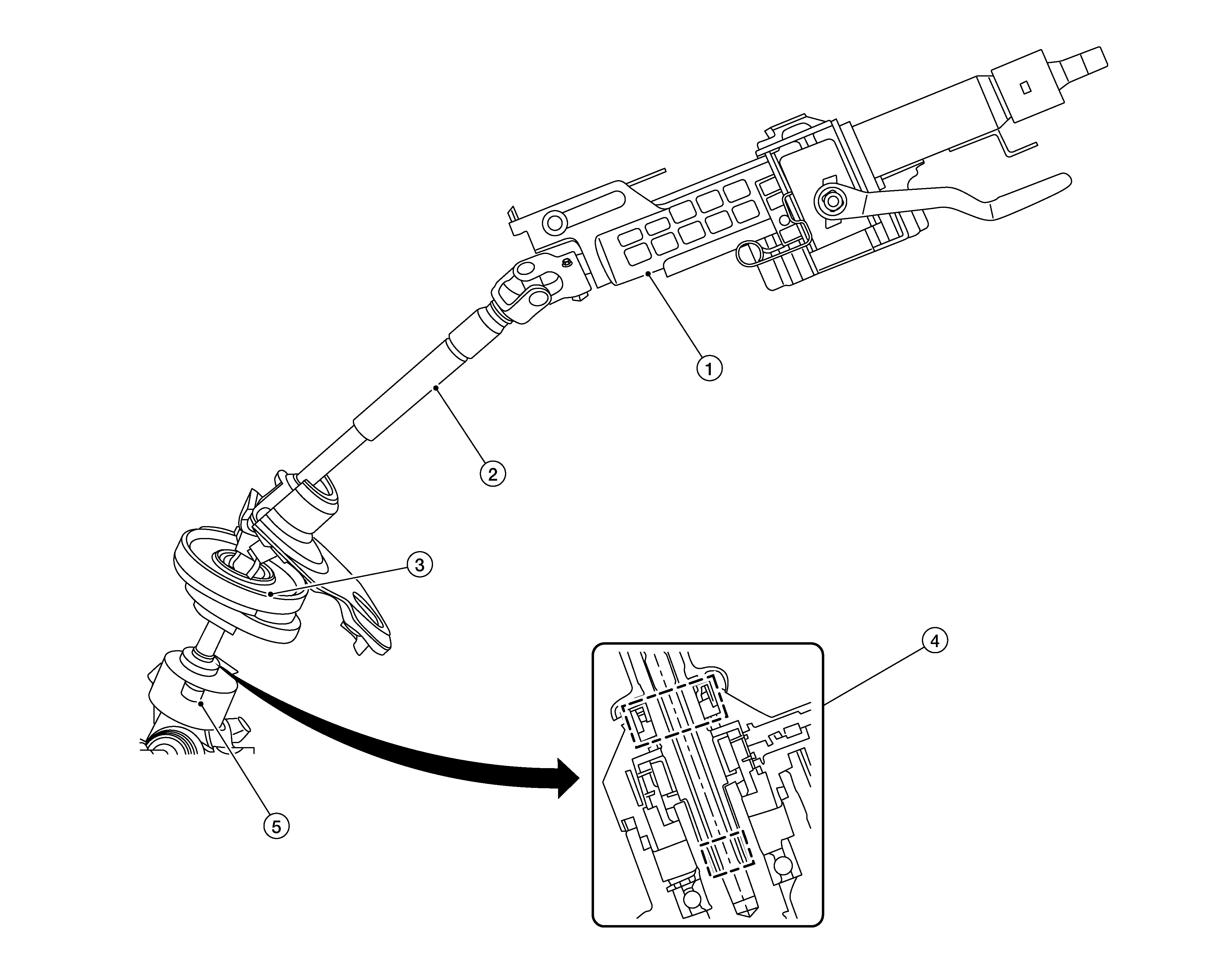

Always perform the Steering Torque Calibration after replacing the ADAS control unit or any of the upper steering components outlined in the figure below.
Refer to Work Procedure .
NOTE:
The system does not operate normally unless the Steering Torque Calibration is performed. Always perform it.
|
1. |
Steering Column |
2. |
Intermediate Shaft |
3. |
Intermediate Shaft Seal |
|
4. |
Gear Shaft Seal |
5. |
Torque Sensor |
||
