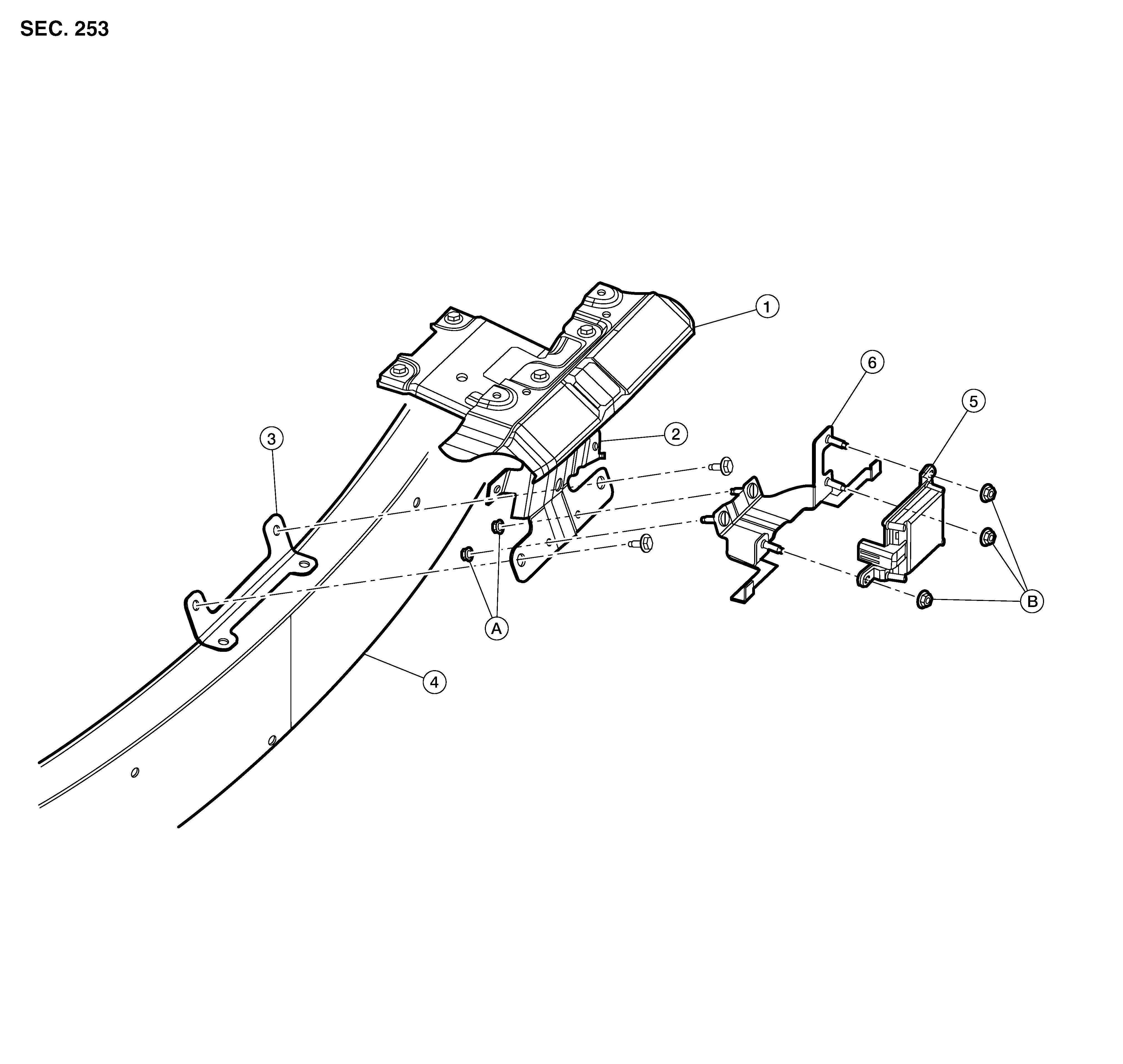

DISTANCE SENSOR : Exploded View

GNSALOIA0180Z-180Courtesy of NISSAN NORTH AMERICA, INC.

1.

Upper radiator core support cover

2.

Front bumper reinforcement bracket

3.

Front bumper lower retainer bracket

4.

Front bumper reinforcement

5.

Distance sensor

6.

Distance sensor bracket

A.

Refer to DISTANCE SENSOR : Removal & Installation .

B.

Refer to DISTANCE SENSOR : Removal & Installation .
