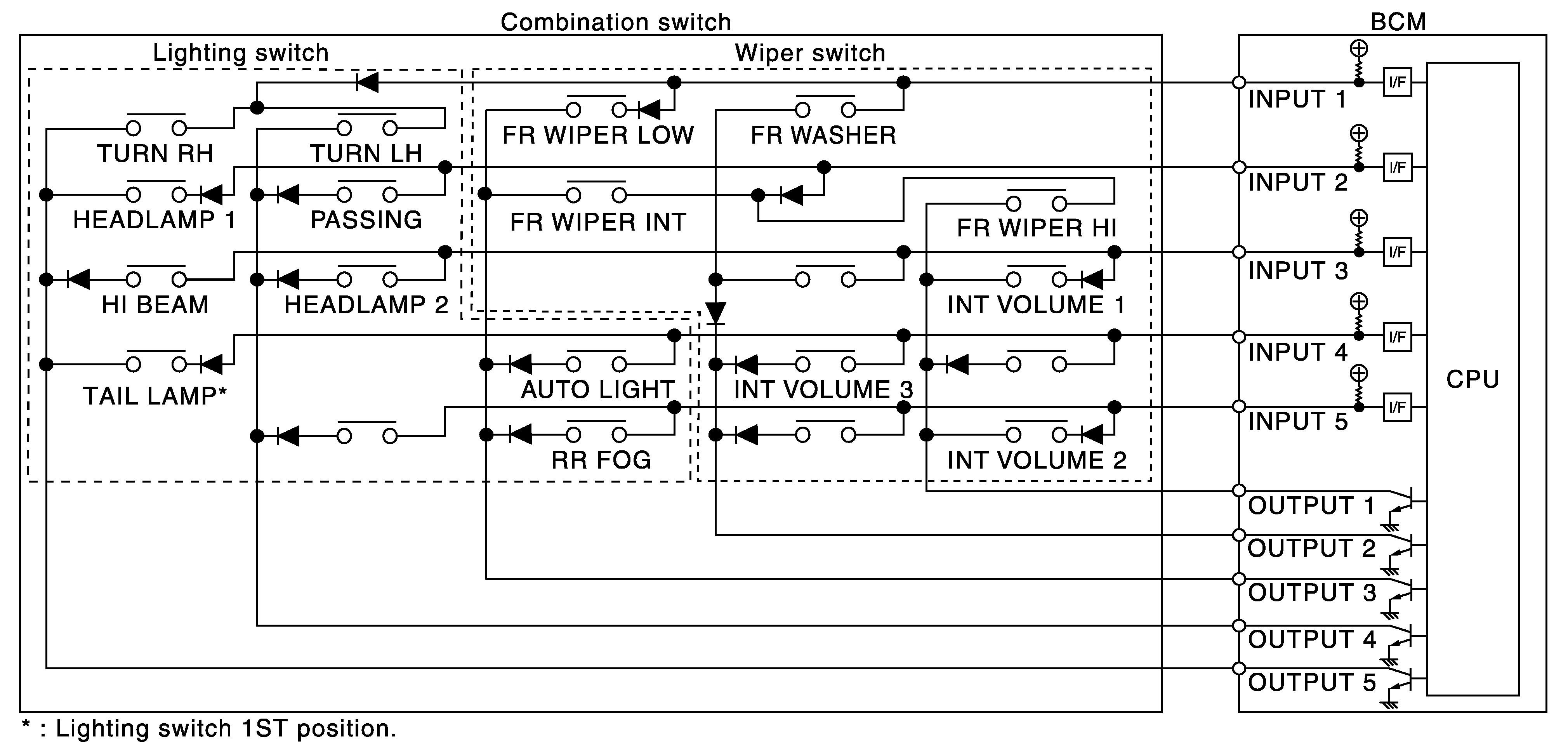

Combination Switch Matrix
Combination switch INPUT-OUTPUT system list
|
System |
OUTPUT 1 |
OUTPUT 2 |
OUTPUT 3 |
OUTPUT 4 |
OUTPUT 5 |
|
INPUT 1 |
-- |
FR WASHER |
FR WIPER LOW |
TURN LH |
TURN RH |
|
INPUT 2 |
FR WIPER HI |
-- |
FR WIPER INT |
PASSING |
HEADLAMP 1 |
|
INPUT 3 |
INT VOLUME 1 |
-- |
-- |
HEADLAMP 2 |
HI BEAM |
|
INPUT 4 |
-- |
INT VOLUME 3 |
AUTO LIGHT |
-- |
TAIL LAMP |
|
INPUT 5 |
INT VOLUME 2 |
-- |
RR FOG |
-- |
-- |
NOTE:
Headlamp has a dual system switch.
