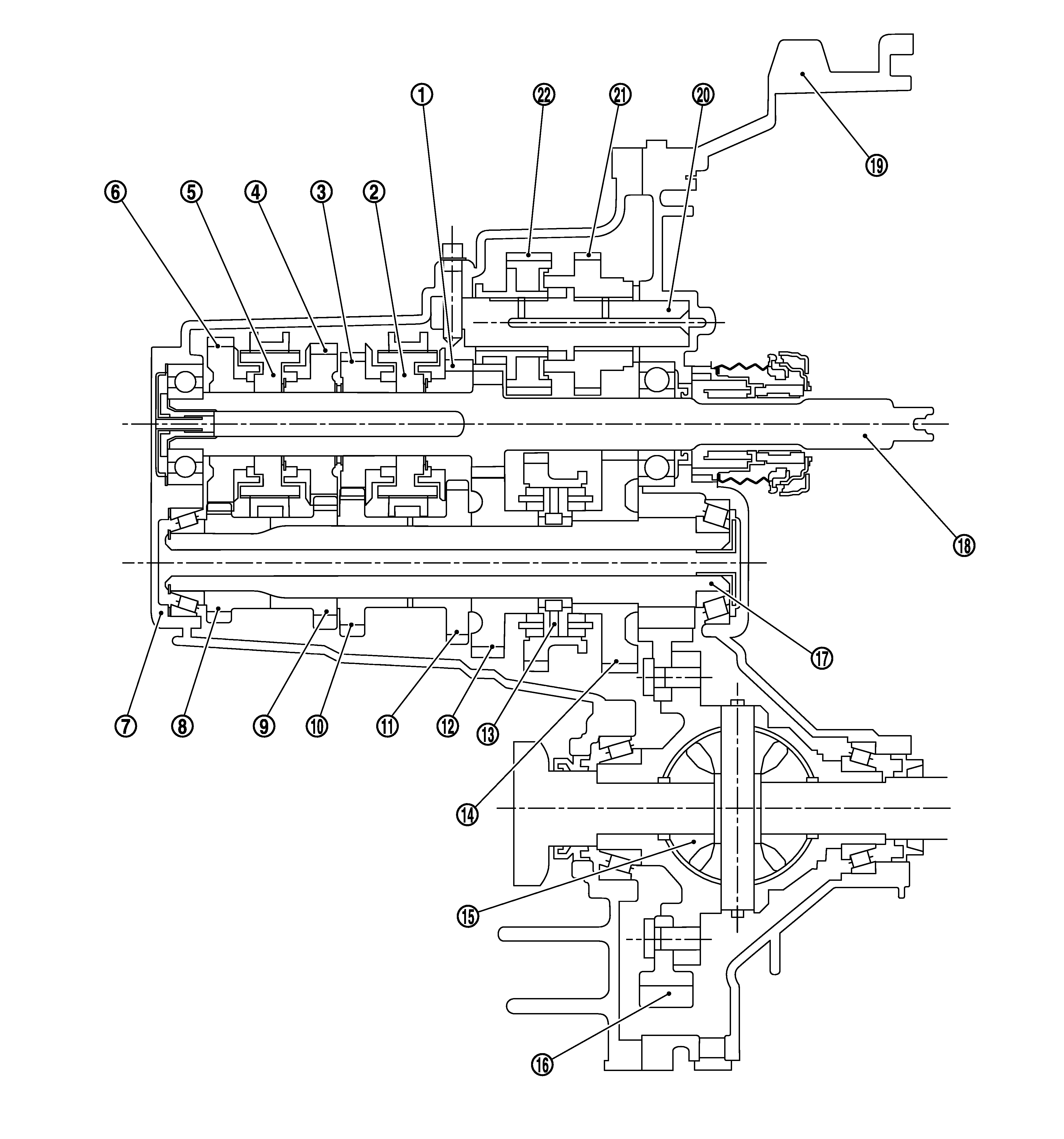

Sectional View
WARNING: This page is about a different variant/trim than selected.
|
1. |
3rd input gear |
2. |
3rd-4th synchronizer hub assembly |
3. |
4th input gear |
|
4. |
5th input gear |
5. |
5th-6th synchronizer hub assembly |
6. |
6th input gear |
|
7. |
Transaxle case |
8. |
6th main gear |
9. |
5th main gear |
|
10. |
4th main gear |
11. |
3rd main gear |
12. |
2nd main gear |
|
13. |
1st-2nd synchronizer hub assembly |
14. |
1st main gear |
15. |
Differential |
|
16. |
Final gear |
17. |
Mainshaft |
18. |
Input shaft |
|
19. |
Clutch housing |
20. |
Reverse idler shaft |
21. |
Reverse input gear |
|
22. |
Reverse output gear |
||||
