Component Location

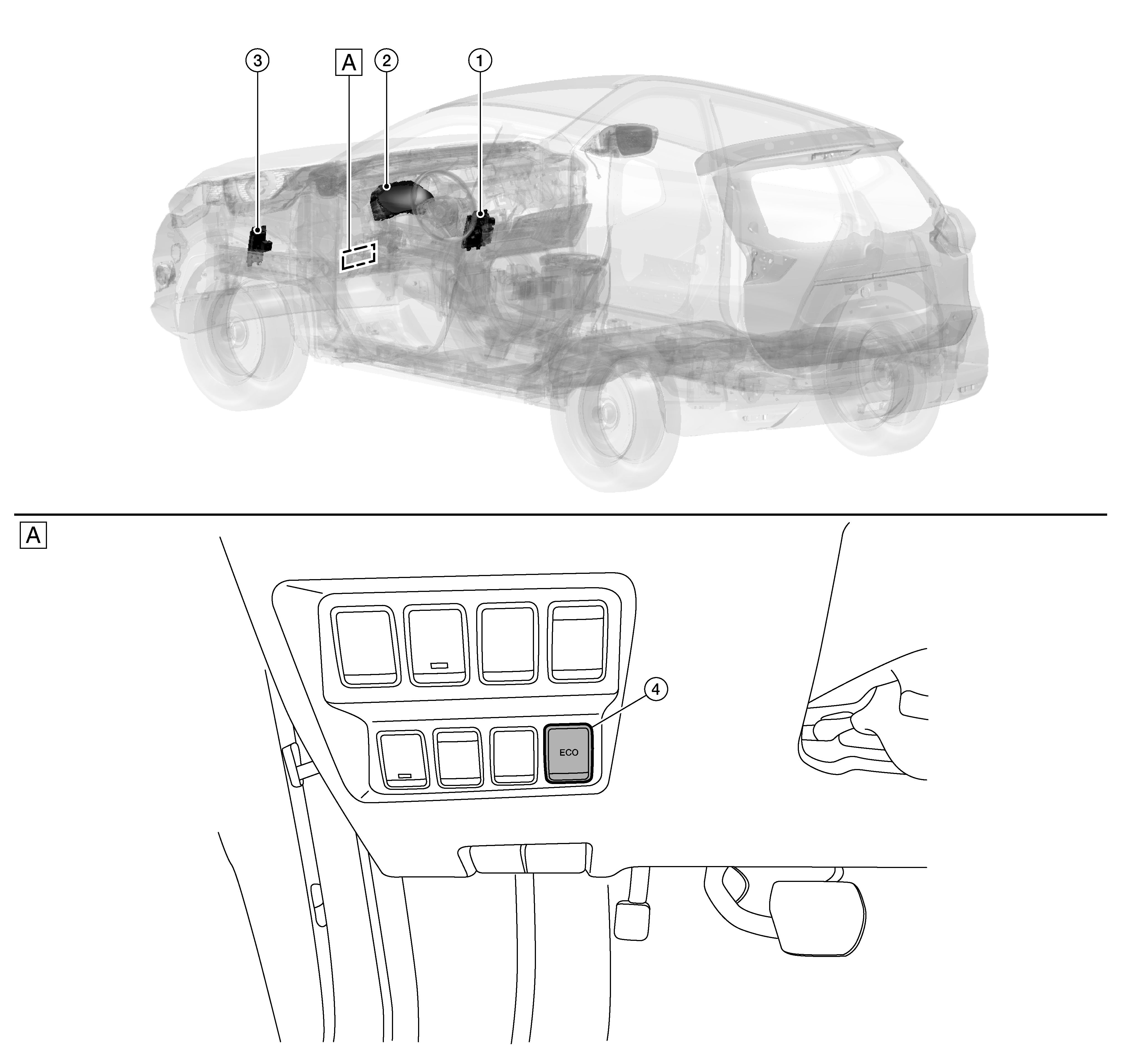

GNSALOIA0536Z-536Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Instrument lower panel LH



No.

Component

Function

SYMBOL

HPCM
  • The HPCM receives the following signal via CAN communications from the TCM.
    • SPORT mode signal
  • The HPCM transmits the following signal via CAN communications to the combination meter.
    • SPORT mode indicator signal

Refer to Component Location for detailed installation location.

SYMBOL

Combination meter
  • The combination meter transmits the following signal via CAN communications to the TCM.
    • SPORT mode switch signal
  • The combination meter receives the following signal via CAN communications from the ECM.
    • SPORT mode indicator signal

Refer to Component Location for detailed installation location.

SYMBOL

TCM
  • The TCM receives the following signal via CAN communications from the combination meter.
    • SPORT mode switch signal
  • The TCM transmits the following signal via CAN communications to the ECM.
    • SPORT mode signal

Refer to Component Location for detailed installation location.

SYMBOL

SPORT mode switch

Refer to SPORT Mode Switch .
