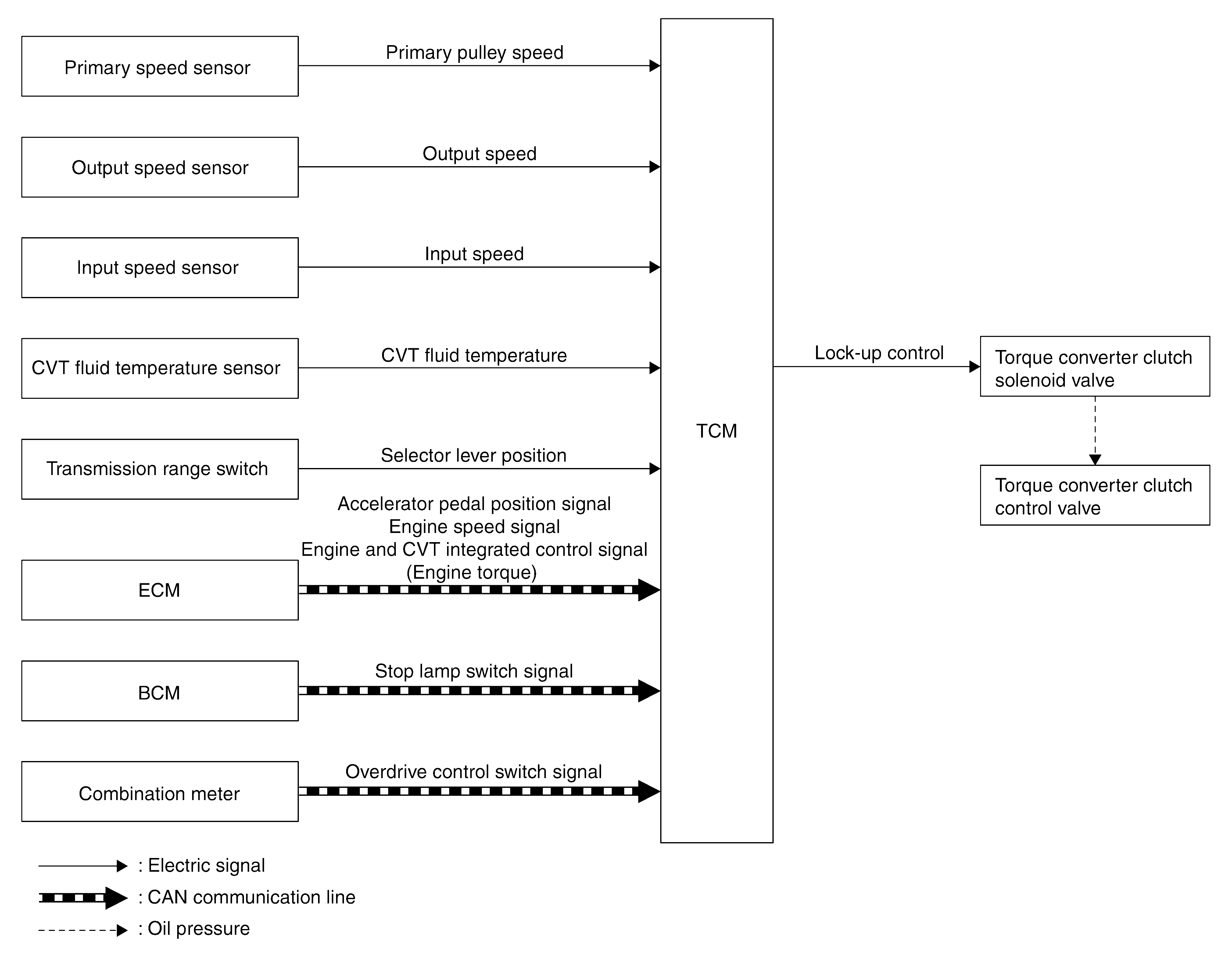

Home >> Nissan-Datsun >> 2019 >> NV200 S >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (Introduction And Basic Inspection) >> System Description >> System >> Lock-Up Control >> System Description >> System Diagram
