Exploded View

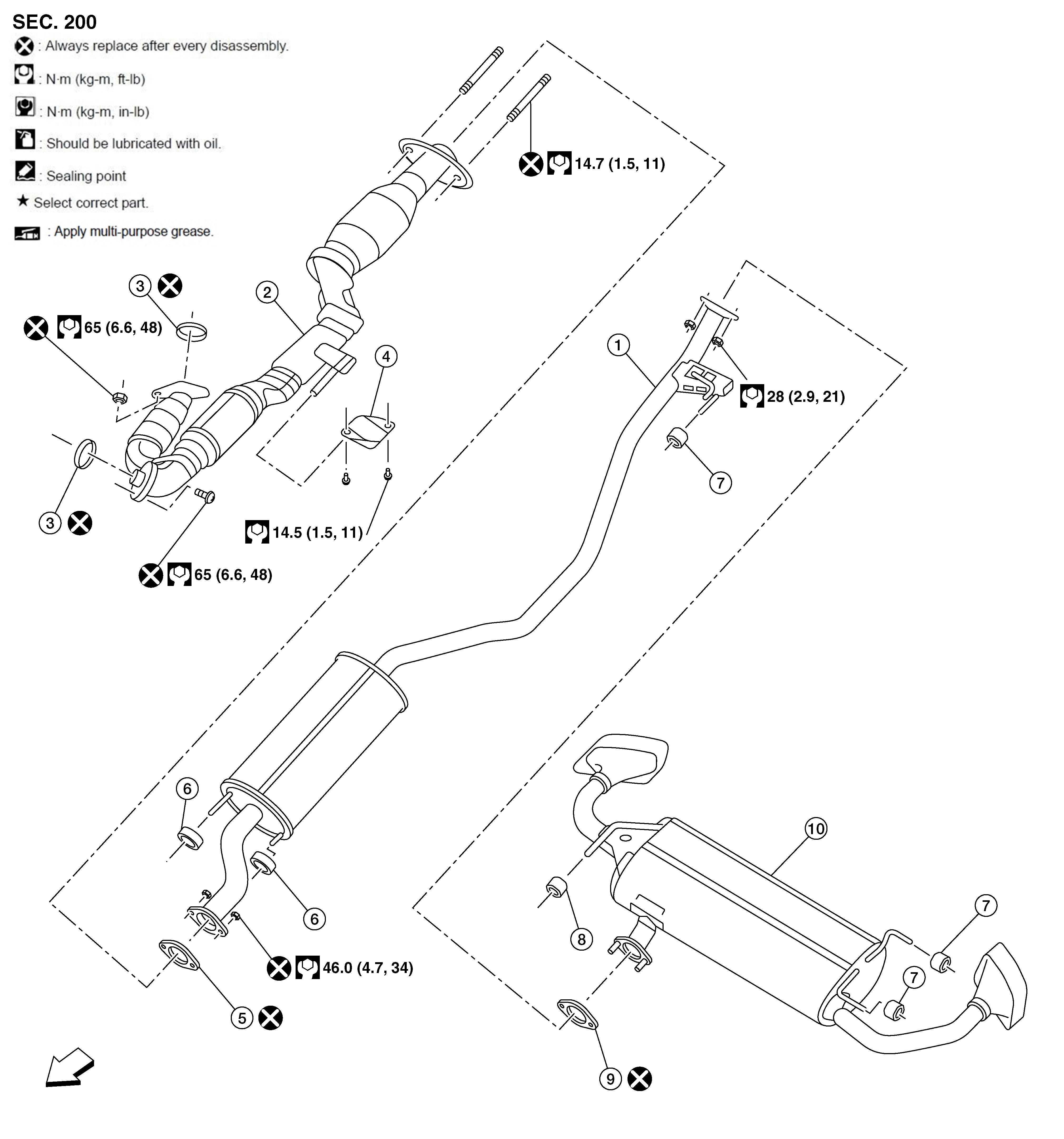

Fig 1: Exhaust System With Torque Specifications
GNSAWBIA2479Z-479Courtesy of NISSAN NORTH AMERICA, INC.

1.

Center exhaust tube

2.

Front exhaust tube

3.

Ring gasket

4.

Front exhaust tube bracket

5.

Gasket

6.

Mounting rubber

7.

Mounting rubber

8.

Mounting rubber

9.

Gasket

10.

Muffler

SYMBOL

Front
