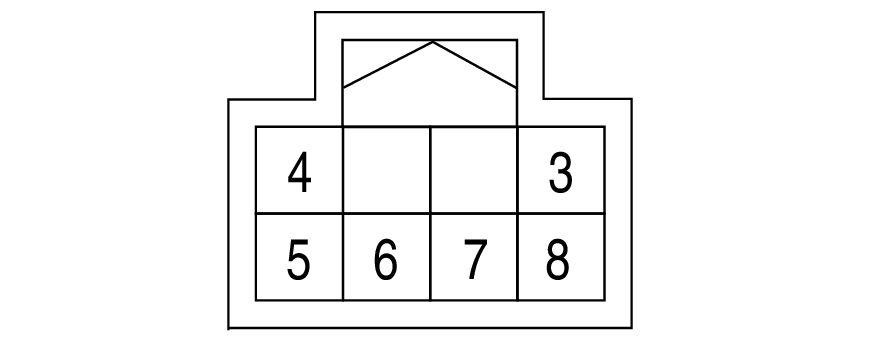

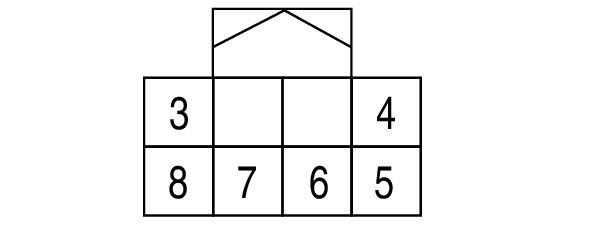

Push-Button Ignition Switch Connector End View (M38)
Connector Types:
TH08FW-NH
Connector Color:
WHITE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 3 |
W |
BATTERY |
| 4 |
B |
GROUND |
| 5 |
SB |
HIGH SIDE START SW LED |
| 6 |
W |
LOW SIDE START SW LED |
| 7 |
Y |
ACC LED |
| 8 |
R |
ENG START SW |
