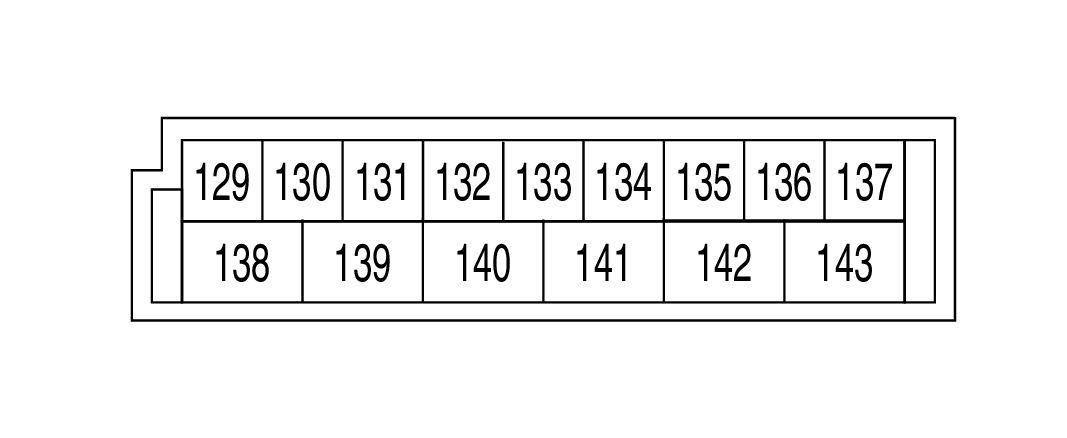

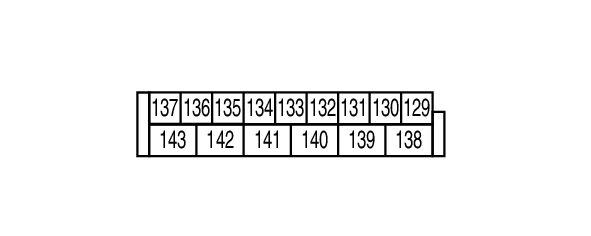

BCM (Body Control Module) Connector End View (M17)
Connector Types: FEA09FW-FHA6-SA
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 129 | V | DOOR UNLOCK DR/AS/FL |
| 130 | P | ROOM LAMP CONT |
| 131 | BR | DOOR LOCK DR/AS/FL |
| 132 | B | GND2 |
| 133 | Y | DOOR UNLOCK AS/RR/RL |
| 134 | L | DOOR LOCK AS/RR/RL |
| 135 | LG | BAT BCM FUSE |
| 136 | SB | DOOR UNLOCK AS |
| 137 | G | BATTERY SAVER OUT |
| 138 | B | GND1 |
| 139 | SB | BAT FRONT DOOR |
| 140 | V | P/W POWER SUPPLY BAT |
| 141 | LG | P/W POWER SUPPLY IGN |
| 142 | W | BAT-POWER F/L |
| 143 | V | BAT REAR DOOR |
