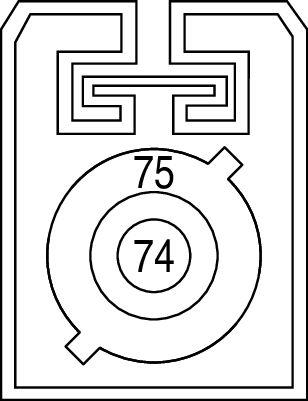

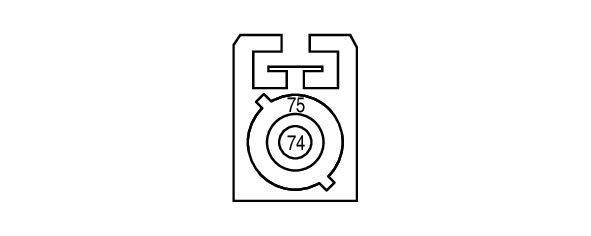

Av Control Unit Connector End View (M165)
Connector Types:
3FA1ANCSJ-C02W0
Connector Color:
BLUE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 74 |
B |
GPS ANT |
| 75 |
SHIELD |
GPS SHIELD |
