Home >> Nissan-Datsun >> 2018 >> Murano SL, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> ADAS Control Unit >> System Description >> System >> System Description >> System Diagram

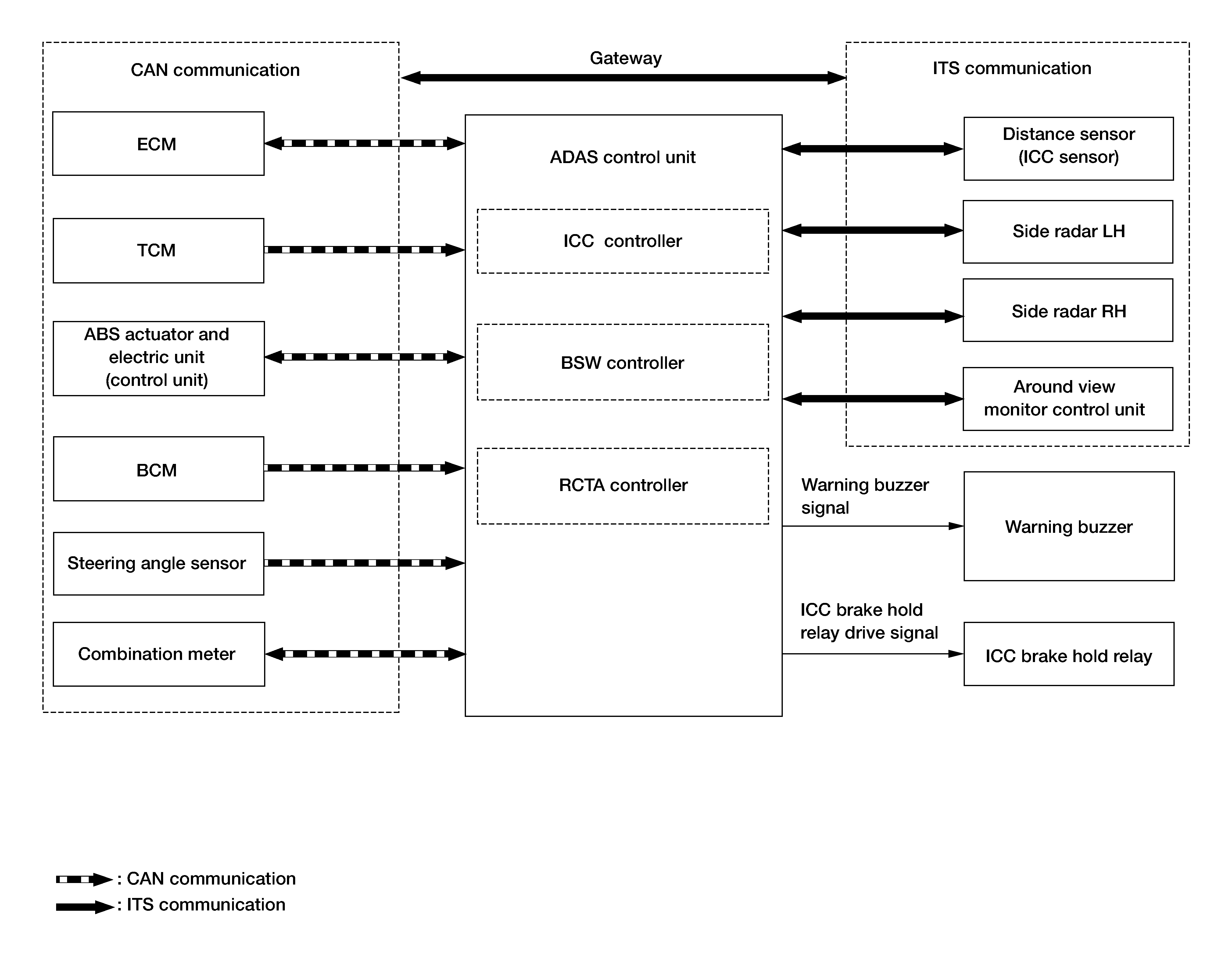

System Diagram

G09517571

Courtesy of NISSAN NORTH AMERICA, INC.
