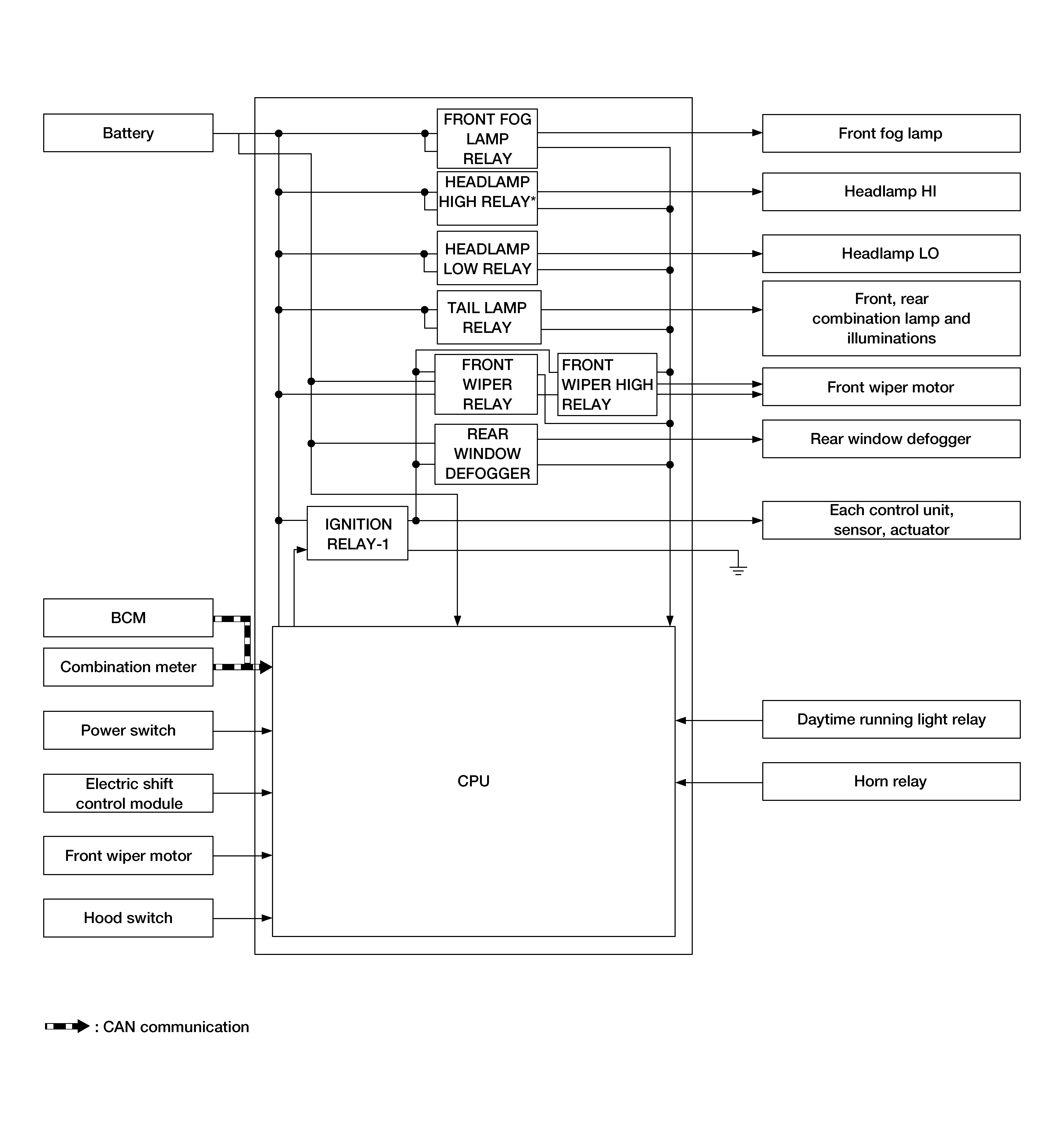

System Diagram

GNSAWMIA0018GB-018

Courtesy of NISSAN NORTH AMERICA, INC.

*: Halogen headlamps only. LED headlamps use a Field-Effect Transistor (FET) for headlamp HI control.
